Description
Overview

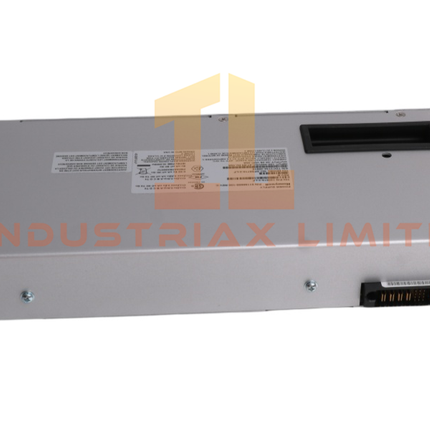

The SPS5710-2-LF 51198685-100 from Honeywell is a rugged and high-capacity power supply module designed for Experion PKS distributed control systems (DCS). Built for machinery protection and condition monitoring applications, it ensures stable 24 VDC power delivery with advanced signal conditioning features, supporting vibration, speed, and temperature sensors in critical industrial environments.
Technical Specifications
-
Model Number: SPS5710-2-LF
-
Part Number: 51198685-100
-
Manufacturer: Honeywell
-
Product Type: Power Supply Module
-
System Compatibility: Experion PKS / DCS Systems
-
Condition: Brand New
-
Weight: 2.32 kg
-
Dimensions: 5 × 16.5 × 34.2 cm
-
HS Code: 8537101190
-
Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Status: Active
Electrical and Functional Characteristics
-
Output Voltage: 24 VDC
-
Current Capacity: 20 A (Series C)
-
Isolation: Galvanic isolation for protection against ground loops and transients
-
Signal Conditioning: Configurable filtering and adjustable gain settings
-
Sensor Compatibility: Accelerometers, proximity probes, RTDs, and other industrial sensors
-
Noise Immunity: High resistance to electrical interference for accurate signal transmission
-
Indicators: LED status lights and test points for diagnostics
-
Enclosure: Robust housing suitable for harsh plant conditions
Functional Highlights
-
Provides reliable power and signal conditioning for monitoring systems.
-
Maintains measurement accuracy over long cable runs.
-
Enhances equipment protection in high-noise environments.
-
Simplifies installation and troubleshooting with built-in indicators.
-
Designed for continuous operation in heavy industrial facilities.
Application Scenarios
-
Turbine monitoring in power generation plants.
-
Compressor protection in oil and gas facilities.
-
Large motor surveillance in heavy industry.
-
Condition monitoring in chemical and manufacturing plants.
FAQ
Q: What sensors are supported by the SPS5710-2-LF? A: It supports accelerometers, proximity probes, and RTD temperature sensors.
Q: How does the module ensure signal integrity? A: Through galvanic isolation and advanced filtering, preventing interference and maintaining fidelity.
Q: What is the rated output capacity? A: 24 VDC at 20 A, suitable for demanding industrial applications.
Q: How does it compare to other Honeywell power supply modules? A: The SPS5710-2-LF offers higher current capacity and advanced signal conditioning compared to standard supply modules.
