Description
Description

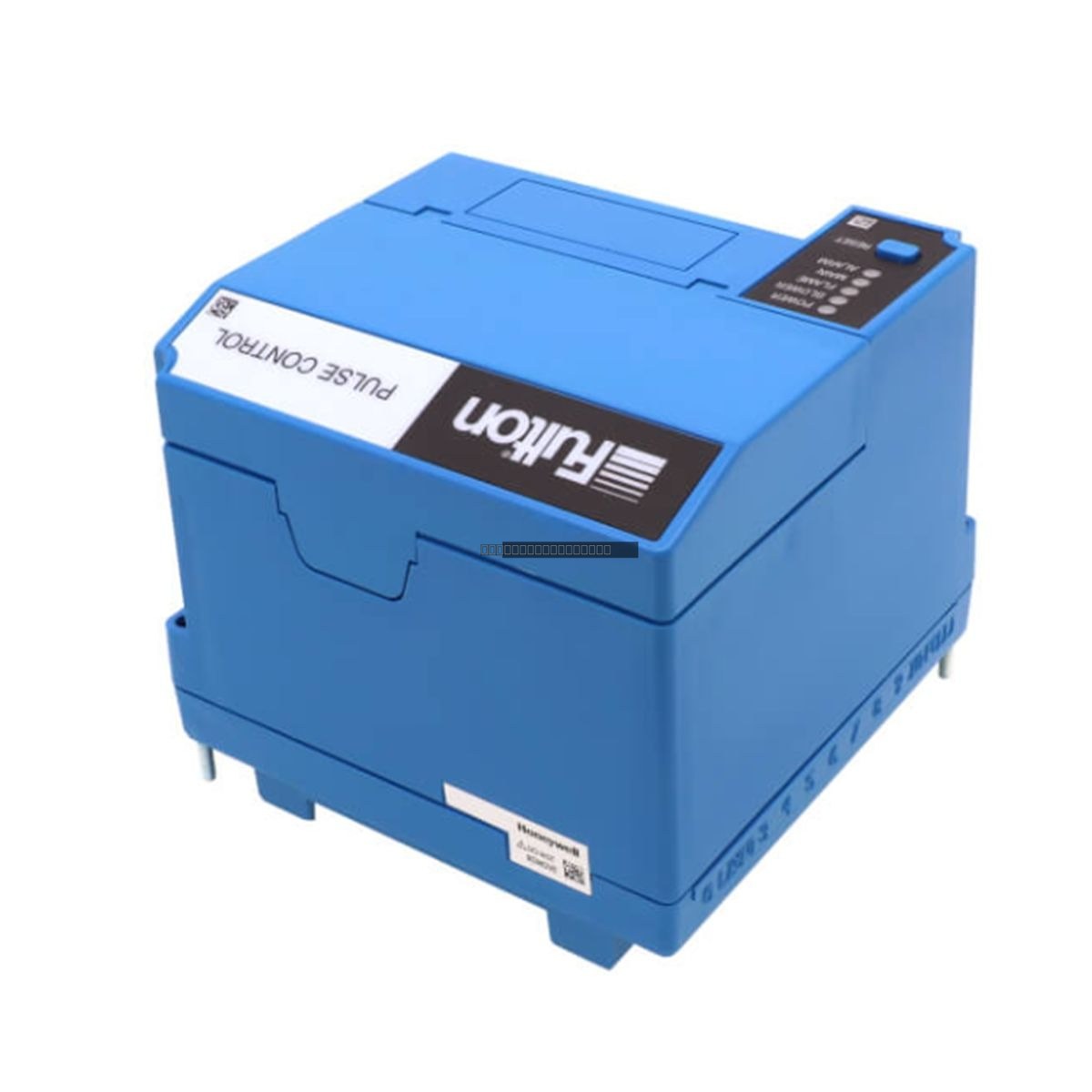

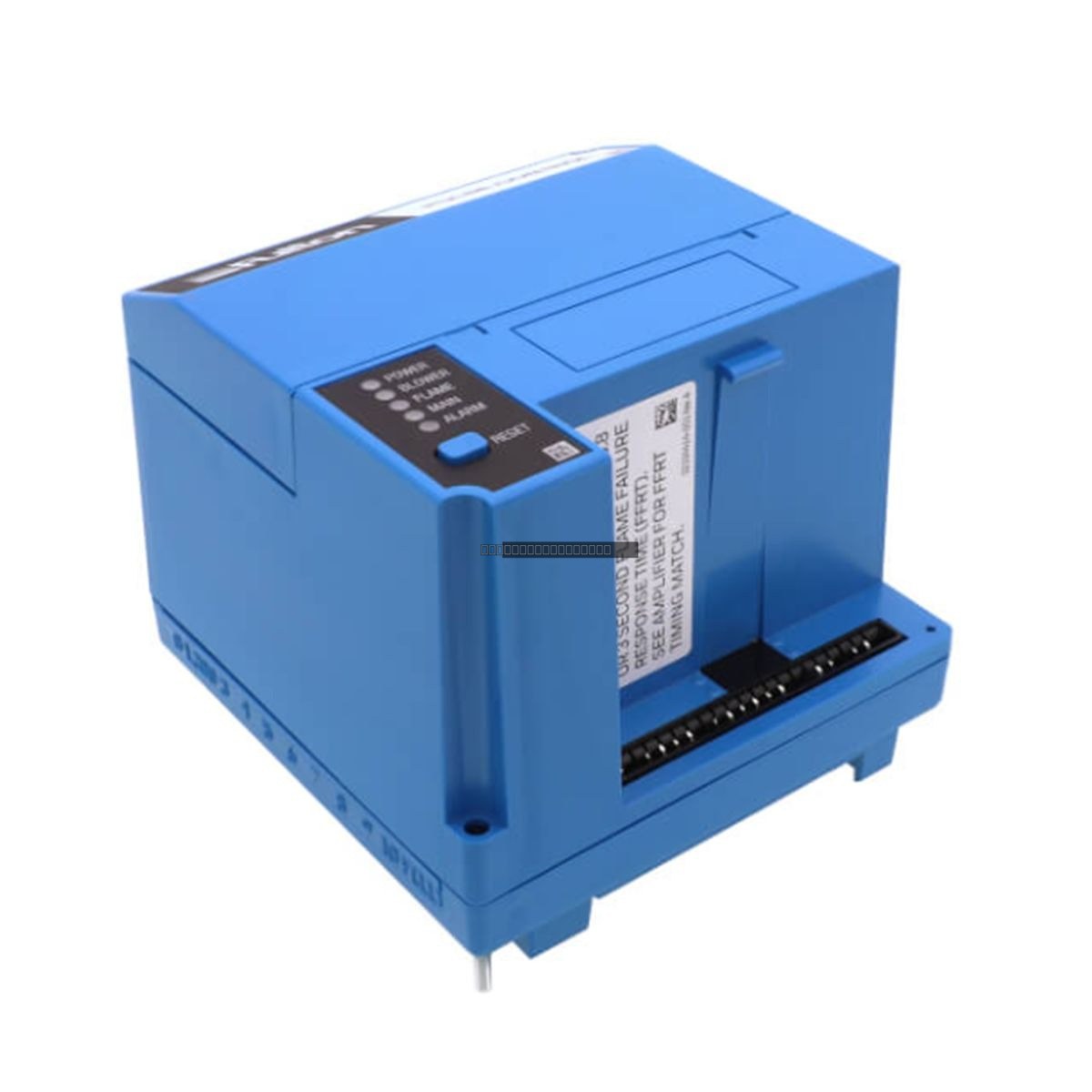

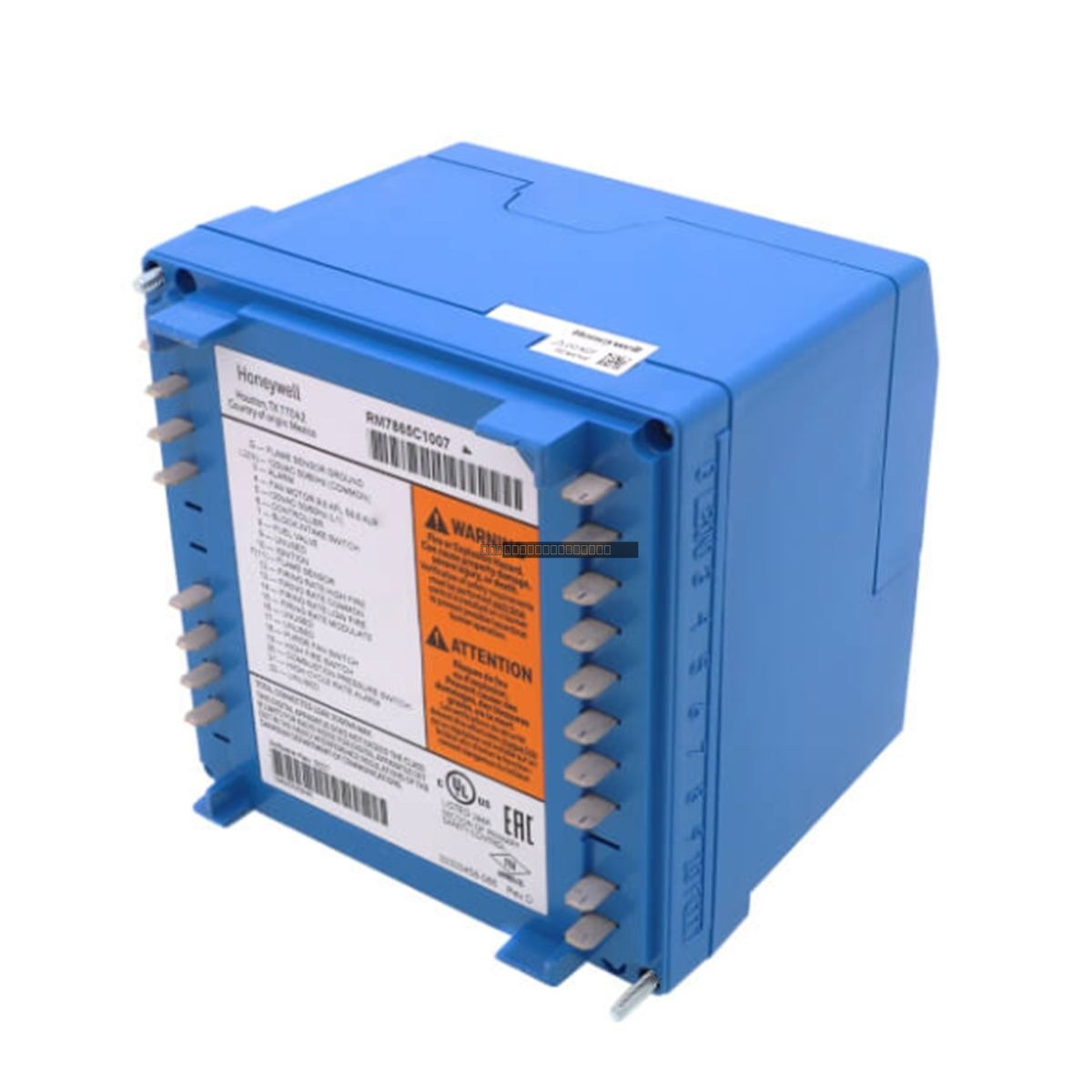

The Honeywell RM7865C1007 is a 7800 Series relay-based combustion safety controller designed for industrial boiler and burner management applications. It is engineered for use in utility boilers, packaged heating systems, and industrial process furnaces where precise control of purge, ignition sequencing, and flame supervision is required. The module manages pre-purge, post-purge, pilot ignition, and main flame validation logic to ensure stable and safe combustion startup cycles.
This controller is designed to reduce operational downtime by enforcing deterministic burner sequencing and fault lockout behavior. It integrates diagnostic feedback, interlock monitoring, and flame signal processing through the 7800 Series architecture, providing high-reliability ignition control under continuous industrial duty conditions.
Features
- Microprocessor-based sequence control for reliable burner ignition.
- 35 s configurable pre-purge and post-purge cycle control.
- 2 s pilot flame establishing period.
- 4 s main flame establishing period.
- Lockout interlock supervision with automatic fault shutdown.
- Purge fan switch verification function.
- Nonvolatile memory for fault history and sequence retention.
- First-out fault indication via external display module support.
- Supports interchangeable flame amplifier modules.
Applications
The RM7865C1007 is typically deployed in:
- Industrial process furnaces.
- Utility and commercial boiler management systems.
- Packaged heating systems requiring automated combustion safety.
- Burner management systems (BMS) requiring sequence-based ignition control.
Technical Specifications
| Model |
RM7865C1007 |
| Series |
7800 Series |
| Supply Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
Approx 6 W |
| Pre/Post Purge Time |
35 s |
| Pilot Flame Establishing Time |
2 s |
| Main Flame Establishing Time |
4 s |
| Operating Temperature |
0 to 60 deg C |
| Weight |
1.57 lbs |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the subbase.
- The module must be installed on a compatible Honeywell 7800 Series subbase.
- Ensure proper grounding of the subbase to the chassis to prevent EMI interference.
- Verify that the flame amplifier module is correctly seated and compatible with the burner flame sensor type.
- Route high-voltage ignition cables away from low-voltage sensor and communication wiring to prevent signal interference.
- Ensure adequate ventilation around the control cabinet to maintain operating temperatures within the 0 to 60 deg C range.
FAQ
Is the RM7865C1007 field-programmable?
No, this module operates on fixed safety logic with microprocessor-based sequence control and does not require field-level programming.
What is required for flame signal processing?
The module requires an interchangeable flame amplifier module (sold separately) to process signals from the flame sensor, depending on your specific burner configuration.
How does the unit handle faults?
The unit features lockout interlock supervision with automatic fault shutdown and supports first-out fault indication when connected to an external display module.
