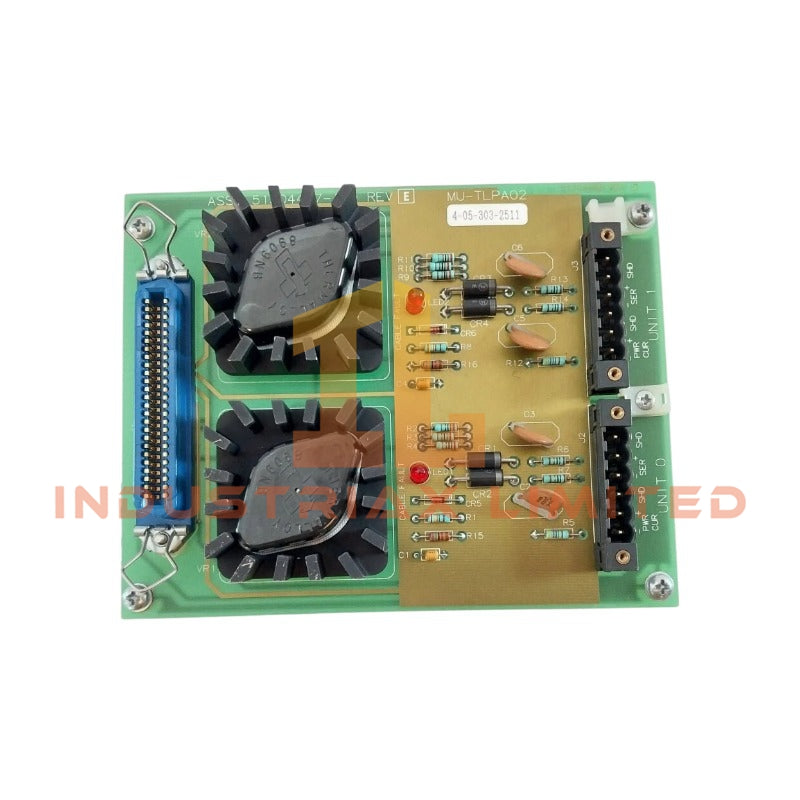

Honeywell MU-TLPA02 Power Adapter Assembly

Configured for low-voltage power adaptation and backplane interface routing in Honeywell TDC 3000 and TPS systems, the Honeywell MU-TLPA02-51304467-100 (MU-TLPA02 Power Adapter Assembly) provides direct physical and electrical support for Process Manager, Advanced Process Manager, and High-Performance Process Manager I/O architectures.

Hardware Specifications

Parameter	Specification
Model	MU-TLPA02
Brand	Honeywell
Origin	USA
Part Number	51304467-100
Module Type	Power Adapter Assembly / I/O Interface Adapter
System Compatibility	Honeywell TDC 3000 / TPS / HPM / APM / PM Systems
Weight	Approx. 0.45 kg
Dimensions	Not specified
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% RH, non-condensing
Power Consumption	Low-voltage DC power distribution through I/O backplane
Mounting Type	Card Cage / Rack-mount Assembly

DCS Interface and Power Adaptation Characteristics

The Honeywell MU-TLPA02 operates as a power interface component inside TDC 3000 and TPS I/O card cage assemblies. It conditions and routes low-voltage DC power between the system backplane and associated process control modules.

The module supports channel-to-channel isolation principles used in Honeywell process control architectures. Therefore, it reduces electrical interference paths between connected I/O hardware and maintains stable power distribution for installed modules.

In addition, the assembly provides transient filtering functions for connected control hardware. The design supports the electrical requirements of Process Manager, Advanced Process Manager, and High-Performance Process Manager configurations.

The MU-TLPA02 does not provide field signal measurement functions. Instead, it manages internal rack-level power adaptation and module interconnection within the DCS hardware structure.

Frequently Asked Questions

Q: Is the Honeywell MU-TLPA02 a field signal input or output module?
A: No. The MU-TLPA02 is a power adapter assembly that performs internal rack power adaptation and interface routing functions.

Q: Can the MU-TLPA02 support hot-swap operation?
A: Hot-swap operation depends on the specific TDC 3000 or TPS rack configuration. System power procedures and redundancy rules must be verified before module replacement.

Q: What installation factor affects MU-TLPA02 operation?
A: Correct card cage installation, proper backplane engagement, and compliance with system grounding practices affect module operation.

Field Installation Guidelines

Install the Honeywell MU-TLPA02 only in compatible TDC 3000 or TPS I/O card cage positions.

Before installation, verify system power status and follow the applicable maintenance procedure for the installed Process Manager, Advanced Process Manager, or High-Performance Process Manager configuration.

Ensure that the module connector seats fully into the backplane interface. Avoid excessive mechanical force during insertion or removal.

Maintain proper cabinet grounding and cable routing practices. Separate power wiring from sensitive process signal wiring where required by the control system installation standard.

Inspect the card edge connector and backplane interface for contamination, oxidation, or physical damage before commissioning.
