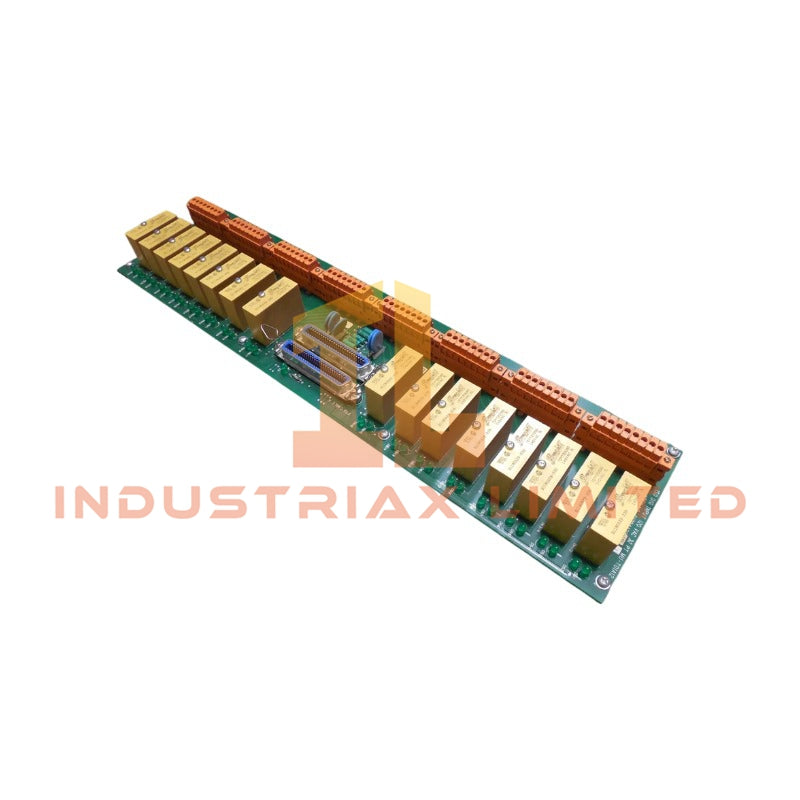

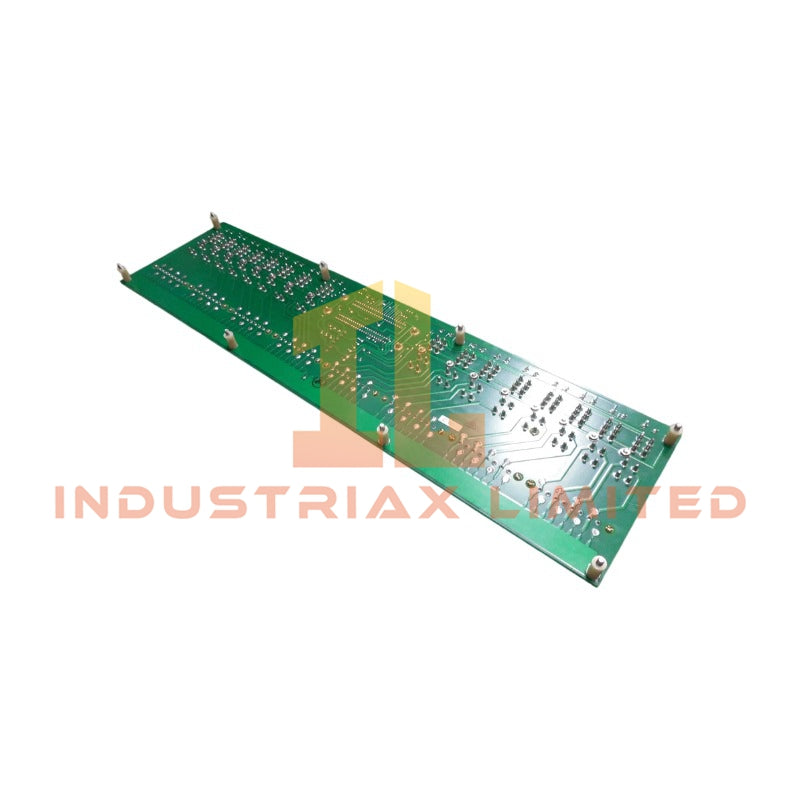

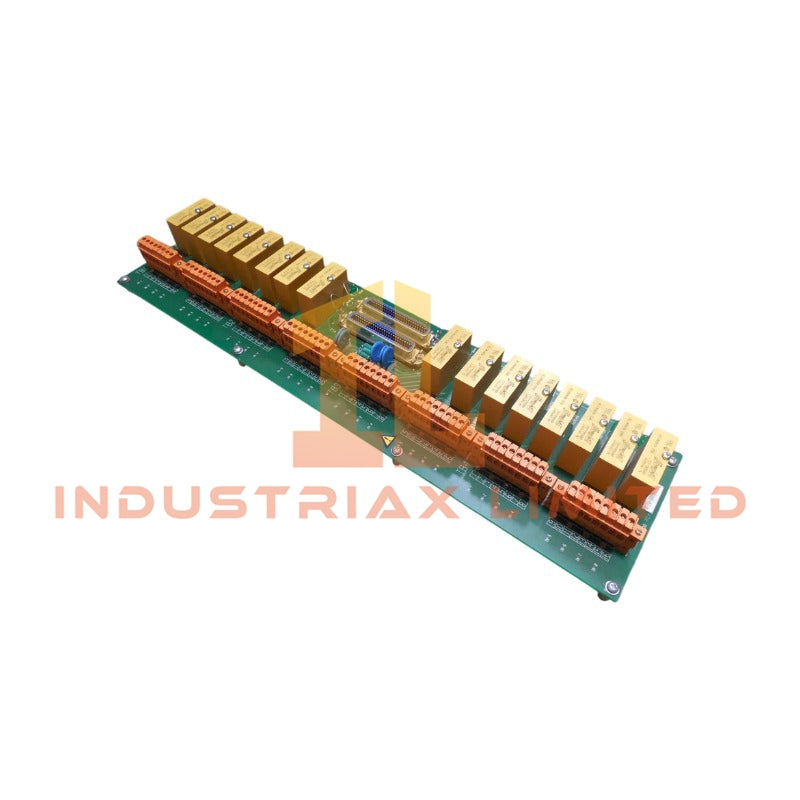

Honeywell MU-TDIA12 120 Vac Digital Input Module

The Honeywell 51304439-125, also cataloged as the MU-TDIA12 120 Vac Digital Input Module, operates as a dedicated hardware component for 120 Vac field signal acquisition within Honeywell HPM control system platforms.

Hardware Specifications

Parameter	Specification
Model	MU-TDIA12
Full Model Number	51304439-125
Brand	Honeywell
Product Type	120 Vac Digital Input Module
FTA Type	120 Vac DI
Terminal Type	Compression Terminal, Type C
Channels	32
Mounting	HPM Field Termination Assembly configuration
Input Signal Type	120 Vac digital field input
System Compatibility	Honeywell High Performance Module (HPM) system
CE Compliance	CE compliant version
Non-CE Part Number	51304439-100
Origin	USA

Process Control Signal Interface and Isolation Features

The Honeywell MU-TDIA12 provides 32 channels for 120 Vac discrete signal acquisition through a compression terminal field termination assembly. The module receives external on/off electrical states and transfers the processed status information into the Honeywell HPM control environment.

In addition, Honeywell digital input assemblies support structured field wiring practices with channel separation and terminal-based signal organization. For process control installations requiring mixed instrument interfaces, Honeywell systems typically apply channel-to-channel isolation techniques to reduce unwanted electrical interaction between field circuits.

The MU-TDIA12 design focuses on digital status monitoring rather than analog measurement. Therefore, the module does not perform 4-20 mA signal conversion, HART communication, or FOUNDATION Fieldbus data processing.

Frequently Asked Questions

Q: What type of field signals does the Honeywell MU-TDIA12 accept?
A: The MU-TDIA12 accepts 120 Vac discrete input signals through its Type C compression terminal field termination interface.

Q: How many digital input channels are available on the MU-TDIA12?
A: The module provides 32 digital input channels for connection to external 120 Vac field devices.

Q: Can the MU-TDIA12 directly process analog transmitter signals?
A: No. The MU-TDIA12 is a digital input module designed for discrete voltage status detection and does not process analog current or voltage measurement signals.

Field Installation Guidelines

Install the MU-TDIA12 within the designated Honeywell HPM field termination arrangement according to system hardware manuals.

Verify that field wiring matches the specified 120 Vac digital input configuration before energizing the circuit. Use appropriate terminal tightening procedures to maintain stable electrical contact.

Route AC digital input wiring separately from low-level analog signal cables and communication wiring to reduce electromagnetic interference. Connect cable shields according to the grounding method defined for the installed Honeywell control cabinet.

Before commissioning, confirm each input channel state by applying the corresponding field device signal and verifying correct status recognition in the HPM control system.
