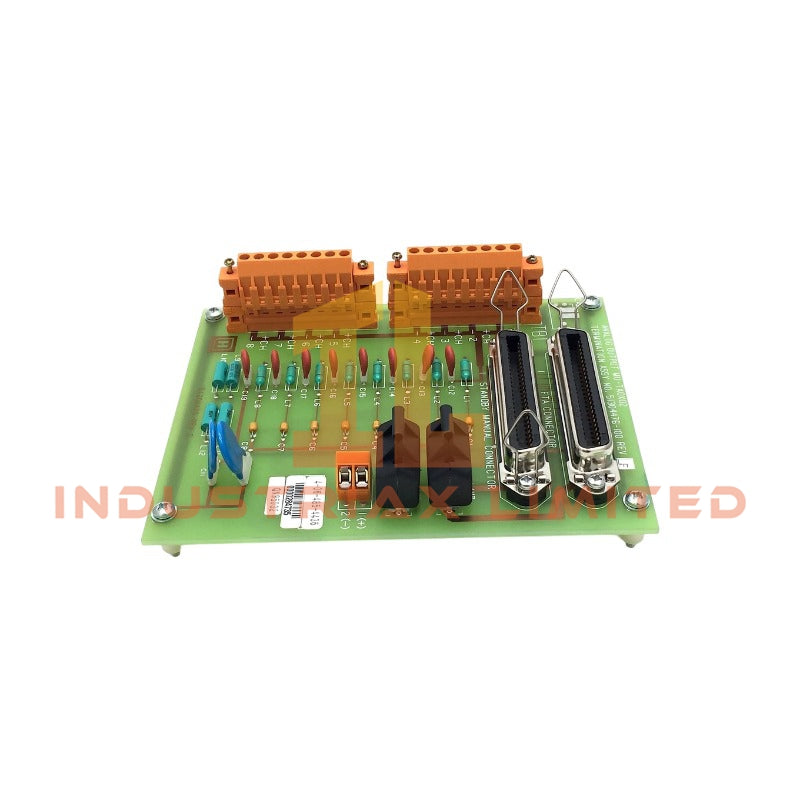

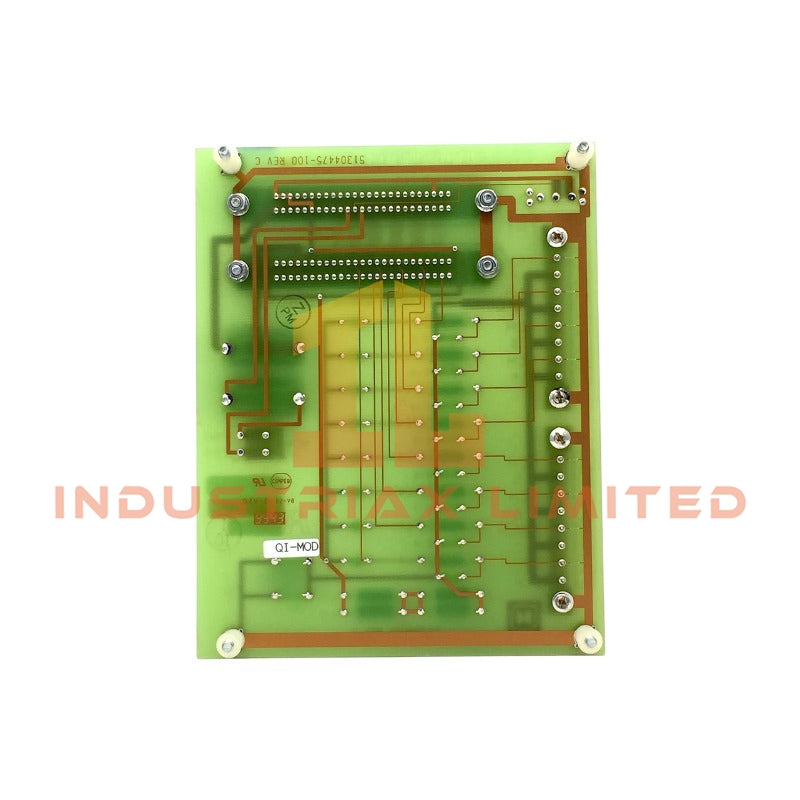

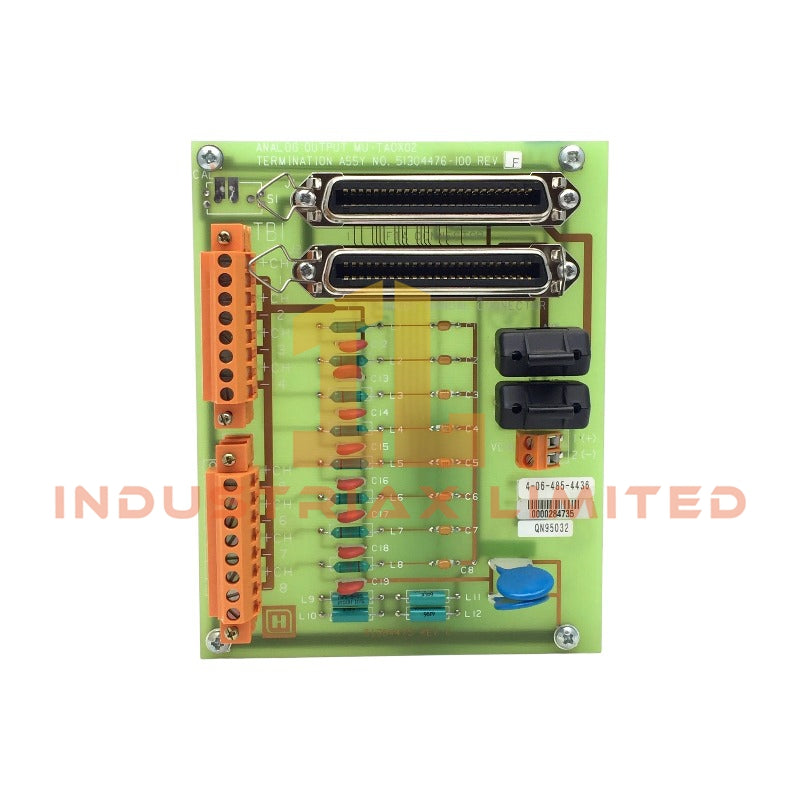

Honeywell MU-TAOX02 Analog Output Termination Assembly

Configured for analog current loop termination in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TAOX02-100 (MU-TAOX02 Analog Output Termination Assembly) provides direct physical signal routing between AO modules and field devices.

Hardware Specifications

Parameter	Specification
Model	MU-TAOX02
Brand	Honeywell
Part Number	51304476-100
Product Type	Analog Output Termination Assembly (FTA / TA)
System Compatibility	Honeywell TDC 3000 / Experion PKS
Signal Type	Analog Output, typically 4-20 mA DC
Channel Capacity	Supports analog output channels according to configured FTA architecture
Field Connection	Screw terminal field wiring interface
Controller Connection	Multi-pin connector / ribbon cable interface
Mounting Type	Honeywell FTA mounting assembly
Origin	USA
Operating Temp	0 deg C to 60 deg C
Power Consumption	Passive termination assembly, no independent power consumption specified

4-20 mA Process Control Signal Interface

The MU-TAOX02 provides the termination point between Honeywell analog output electronics and external field actuators. Moreover, it maintains the physical wiring structure required for current loop transmission, including control valves, positioners, and other analog-controlled devices.

The assembly supports standard 4-20 mA loop signal handling used in Honeywell process control environments. In addition, the termination design supports organized field wiring, signal identification, and maintenance access within the I/O cabinet.

For Honeywell DCS installations, the interface can support channel-to-channel isolation practices through proper cabinet wiring design. Therefore, technicians can separate field-side electrical disturbances from sensitive controller-side electronics by following approved grounding and shielding procedures.

Frequently Asked Questions

Q: Does the MU-TAOX02 provide analog signal conversion?
A: No. The MU-TAOX02 functions as a termination interface assembly. The analog signal processing and conversion functions remain within the associated Honeywell I/O module.

Q: Can the MU-TAOX02 operate as a standalone powered module?
A: No. The assembly operates as a passive field termination component and requires connection to the corresponding Honeywell control system hardware.

Q: What wiring practices are required for 4-20 mA field connections?
A: Field wiring should use appropriate shielded cable practices, correct terminal identification, and proper grounding methods according to the Honeywell system installation documentation.

Field Installation Guidelines

• Install the MU-TAOX02 on the designated Honeywell termination mounting structure inside the control cabinet.
• Verify terminal assignments before connecting field analog output wiring.
• Use shielded signal cables where required by the process environment and connect cable shields according to site grounding standards.
• Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Confirm connector engagement between the termination assembly and associated I/O hardware before system commissioning.
• Inspect terminal tightening, cable routing, and labeling during maintenance activities.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
