Description

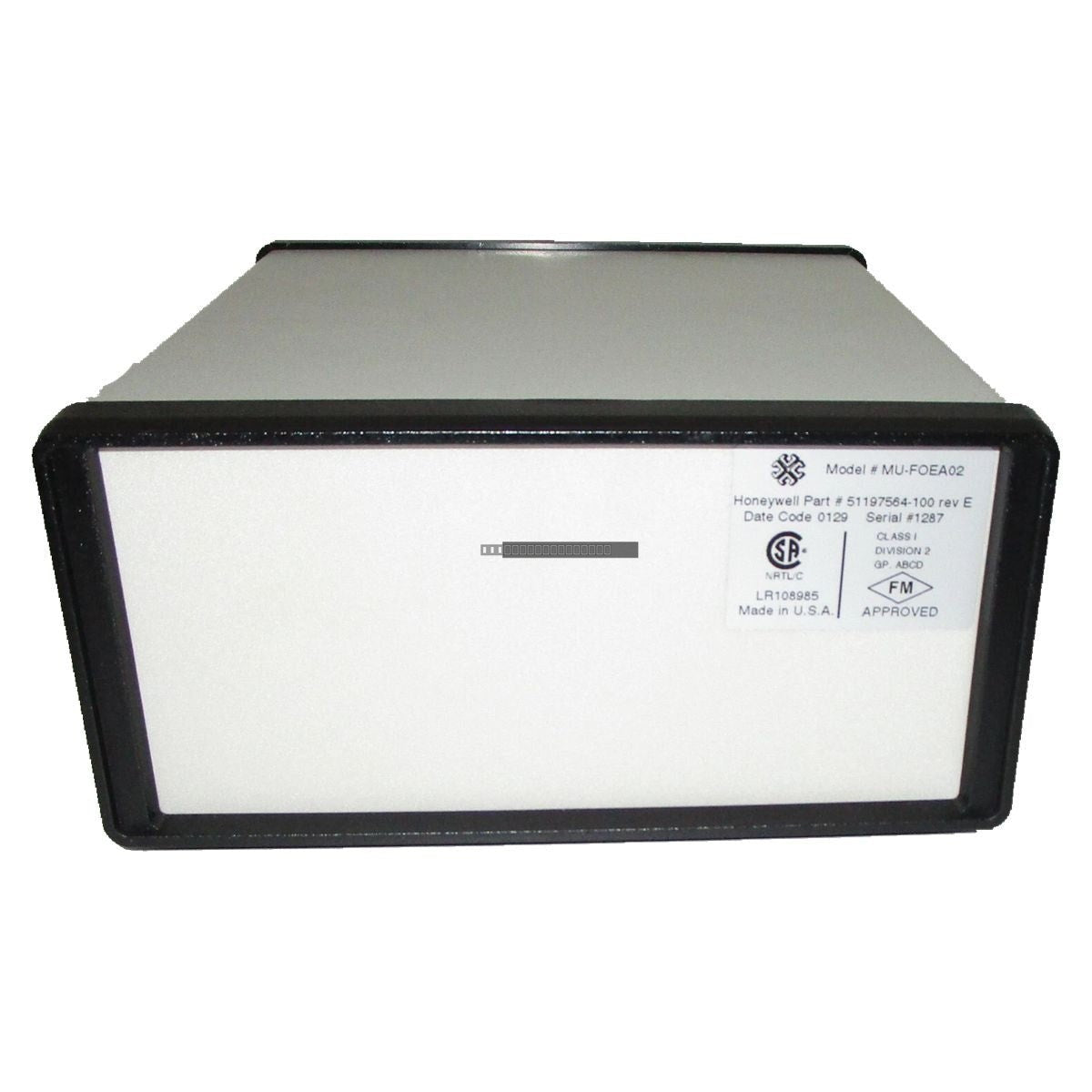

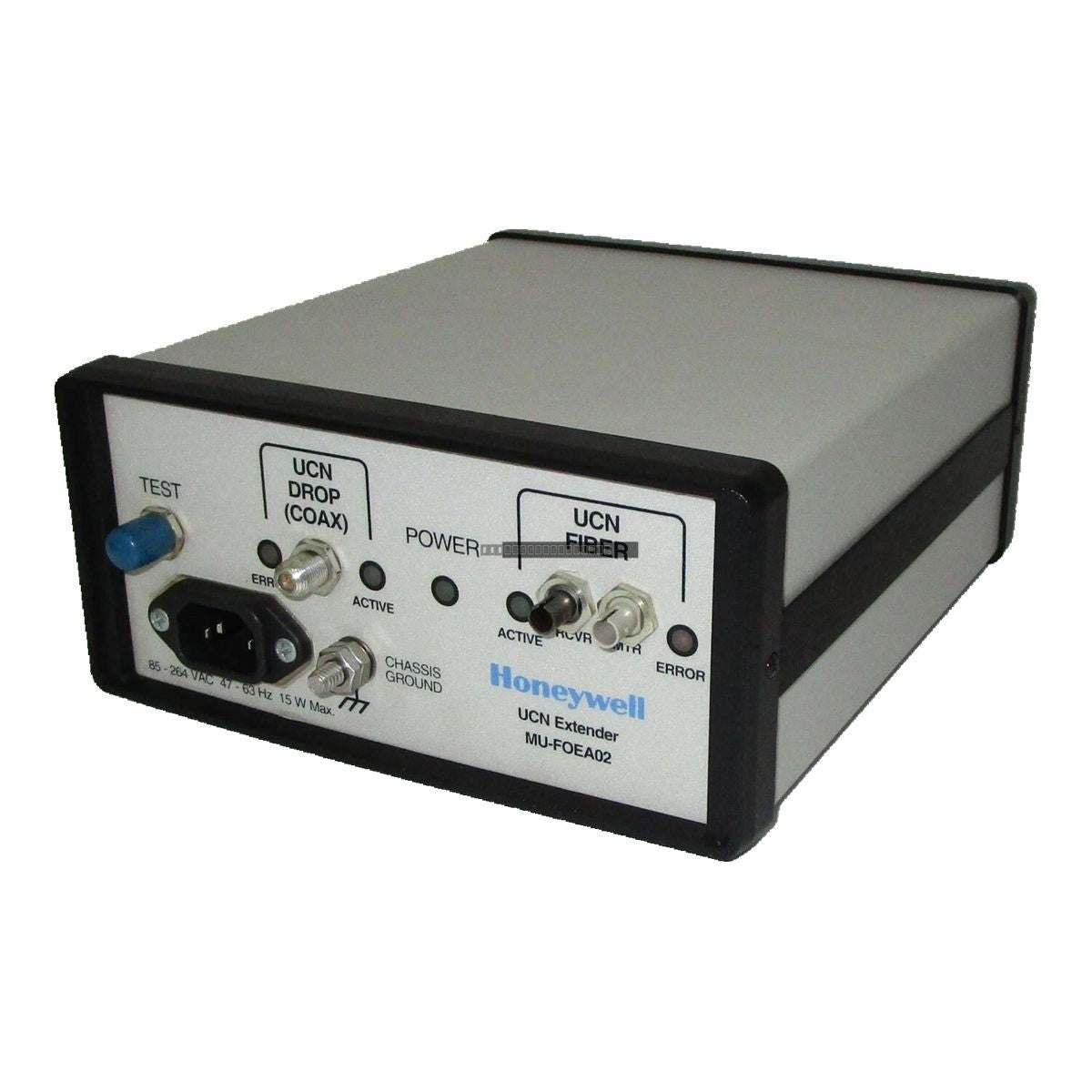

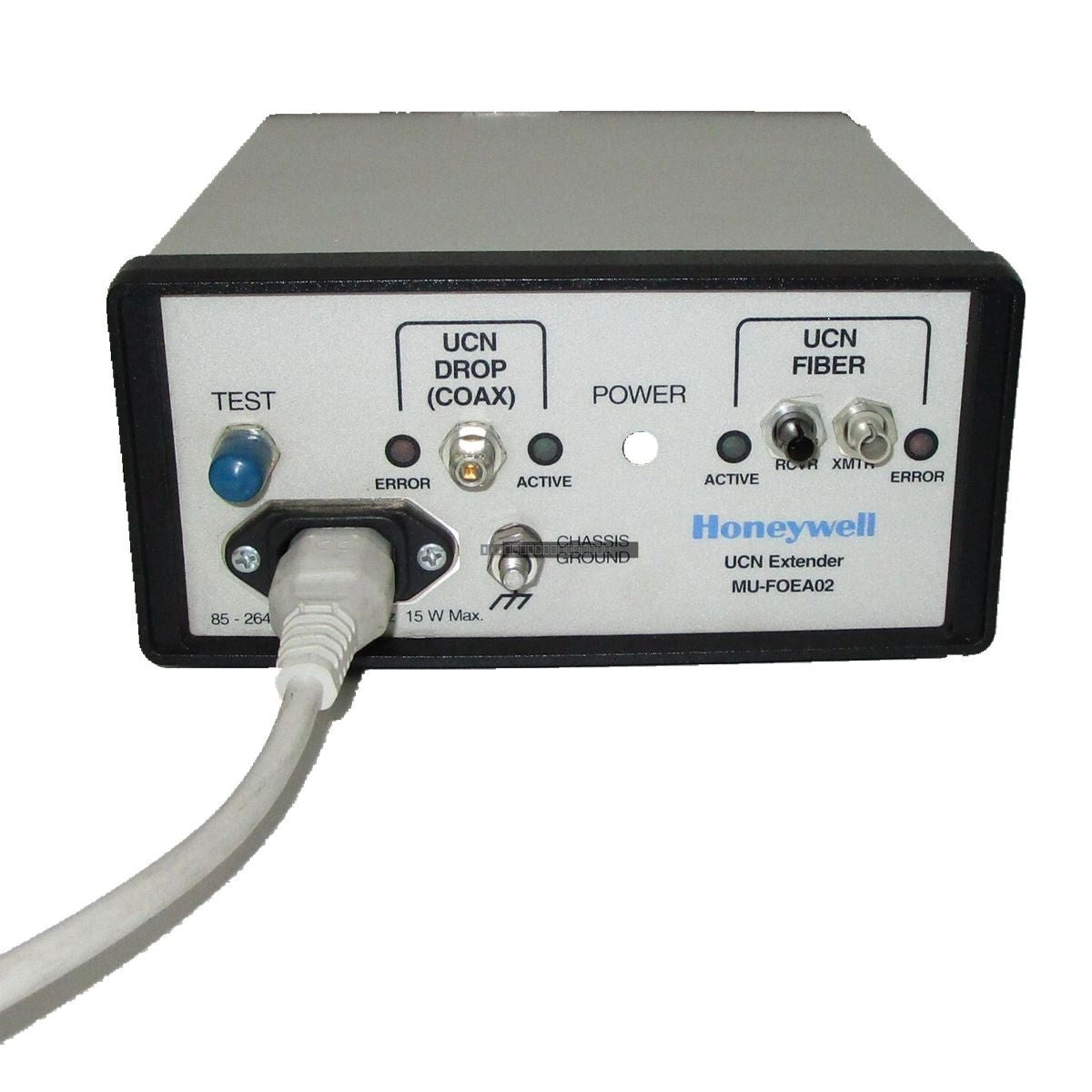

The Honeywell MU-FOEA02 (51197564-100) is a specialized fiber optic communication module engineered for the Universal Control Network (UCN) within Honeywell TDC 3000 Distributed Control System (DCS) architectures. This module facilitates the transmission of UCN signals over fiber optic media, providing the necessary distance extension and electrical isolation required for geographically dispersed control nodes in demanding industrial environments.
Features
- Enables long-distance communication for UCN signal extension between remote control cabinets and process units.
- Provides robust electrical isolation and immunity to electromagnetic interference (EMI) through fiber optic transmission.
- Designed for deterministic communication, maintaining the timing requirements of critical process control loops.
- Supports redundant loop and point-to-point configurations for high-availability system designs.
- Direct backplane integration for seamless installation within existing Honeywell DCS infrastructure.
Applications
This module is primarily deployed in large-scale industrial facilities, including oil refineries, petrochemical processing plants, and power generation stations. It is an essential component for environments where signal integrity must be maintained across significant distances and where electrical isolation is required to prevent ground loops or noise-related communication failures.
Technical Specifications
| Model |
MU-FOEA02 (51197564-100) |
| Brand |
Honeywell |
| Module Type |
UCN Fiber Optic Extender |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
5 W (typical) |
| Isolation |
Optical galvanic |
| Communication Path |
Fiber optic duplex link |
| Redundancy |
Supported in dual-link architecture |
Installation Guidelines
- Ensure the control system power is disconnected before inserting or removing the module from the backplane.
- Handle the module using standard ESD-safe practices to prevent damage to internal circuitry.
- Verify that fiber optic connectors are clean and free of debris before establishing the link.
- Route fiber optic cabling away from high-voltage power lines to maintain signal integrity.
- Ensure the module is properly seated and the backplane locking mechanism is engaged for secure operation.
- Check system-level configuration settings to ensure the extender is recognized within the UCN network topology.
FAQ
Is the MU-FOEA02 module field-configurable?
No, this module does not require user-configurable firmware. It is managed at the system level through the existing control network architecture.
Does this module support redundant communication?
Yes, the MU-FOEA02 supports redundant configurations, allowing for high-availability operation in critical process control applications.
