Description
Overview

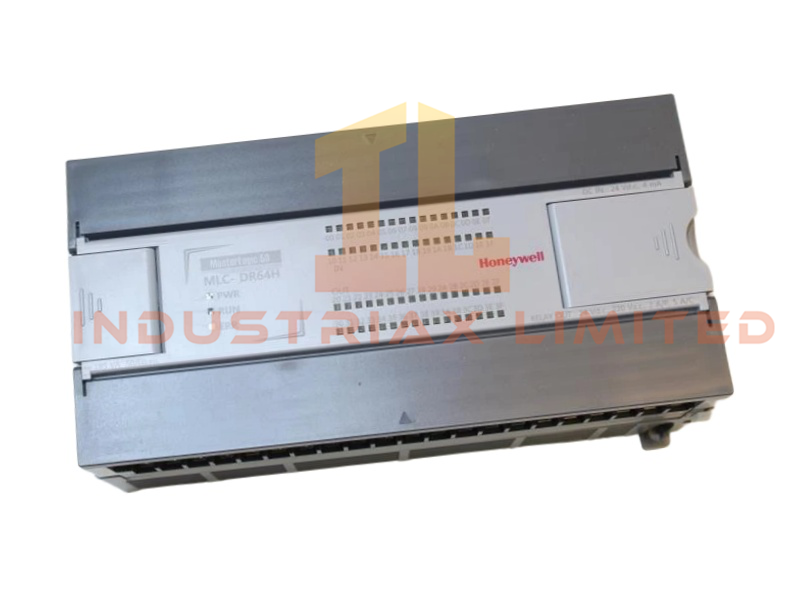

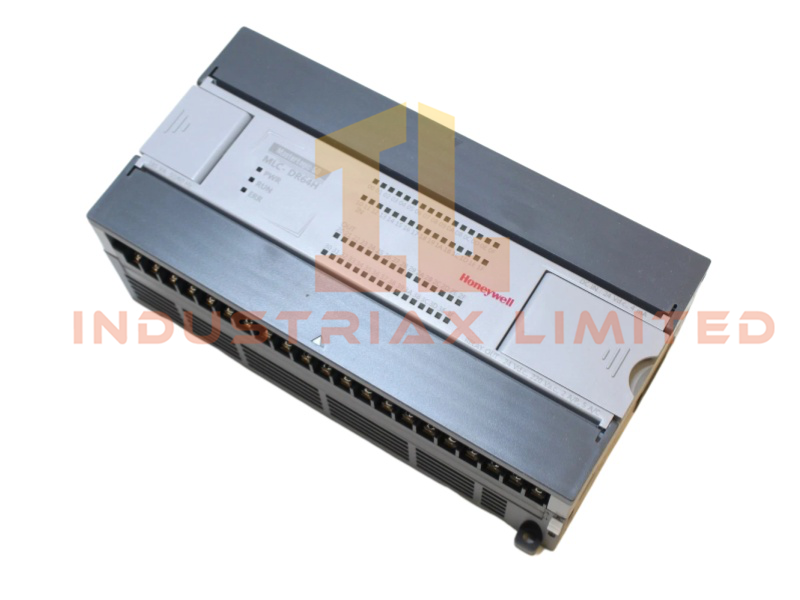

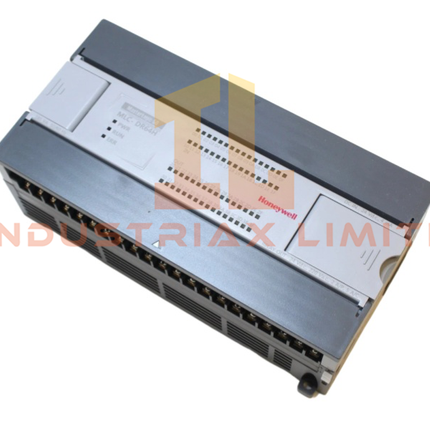

The Honeywell MLI-DR64H Base Module delivers high-density digital I/O functionality by combining 32 DC inputs and 32 relay outputs in one compact unit. Engineers rely on its integrated design, robust electrical performance, and flexible configuration to optimize cabinet space while ensuring reliable control in demanding automation environments.
Technical Specifications
| Parameter |
Details |
| Model Number |
MLI-DR64H |
| Manufacturer |
Honeywell |
| Module Type |
Base Module |
| Dimensions |
7 × 14 × 14.5 cm |
| Weight |
1.32 kg |
| HS Code |
8537101190 |
| Inputs |
32 DC inputs |
| Outputs |
32 relay outputs |
| Rated Load |
DC24V 2A resistive, AC220V 2A unity PF |
| Max Load Voltage |
AC250V or DC125V |
| Current Capacity |
2A per point, 5A per common |
| Leakage Current |
0.1 mA at AC220V/60Hz |
| Switching Frequency |
3,600 operations per hour |
| Minimum Load |
DC5V / 1mA |
| Common Configurations |
4 points per COM (P20-2F), 8 points per COM (P30-3F) |
| System Compatibility |
DCS |
| Condition |
Brand New |
| Origin |
USA |
| MOQ |
1 |
| Communication Service |
Ethernet router |
| Discontinued On |
Active |
Functional Highlights
Honeywell designed the MLI-DR64H to handle maximum load voltages of AC250V or DC125V with 2A current capacity per point. Its relay insulation ensures electrical isolation and system protection, while minimal leakage current and high switching frequency guarantee dependable performance.
The MLI-DR64H employs flexible common configurations, supporting both 4-point and 8-point COM setups. Its compact 7 × 14 × 14.5 cm design and 1.32 kg weight make it suitable for space-constrained control panels, while maintaining high-density I/O capabilities.
Applications and Compatibility
The Honeywell MLI-DR64H suits industries requiring extensive digital I/O control, including machine automation, process control, and precision assembly. Engineers deploy this module to achieve reliable switching operations, efficient cabinet utilization, and enhanced system protection. Its high point density and robust construction make it a dependable solution for modern industrial automation systems.
