Description
Overview

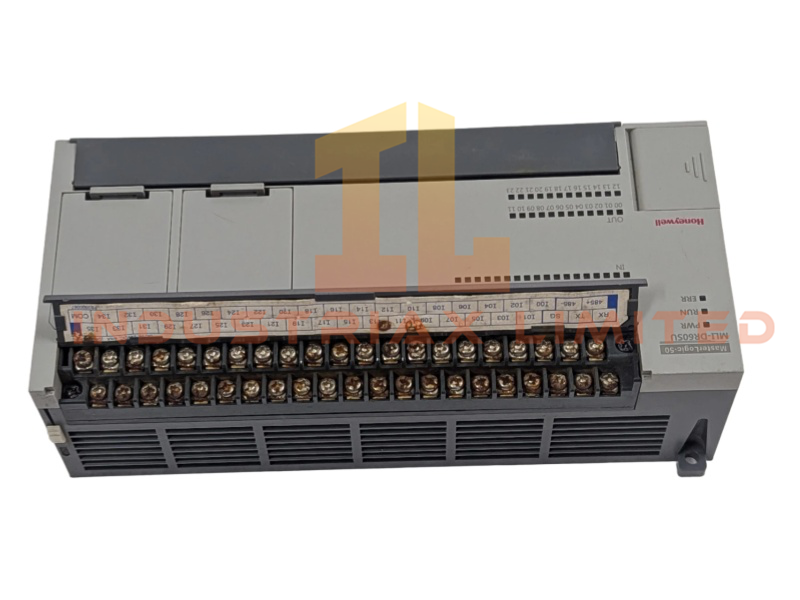

The Honeywell MLI-DR60SU Base Module is a high-capacity unit designed for the MasterLogic series, offering a combination of digital inputs, relay outputs, and advanced processing capabilities. Built for industrial automation environments, it ensures reliable performance under demanding operating conditions while supporting a wide range of applications.
Technical Specifications
| Parameter |
Details |
| Model Number |
MLI-DR60SU |
| Manufacturer |
Honeywell |
| Module Type |
Base Module |
| Condition |
Brand New |
| Dimensions |
7 × 14 × 14.5 cm |
| Weight |
1.3 kg |
| Power Input |
AC 100–240 V |
| Digital Inputs |
36 channels (DC 24 V) |
| Relay Outputs |
24 channels |
| Instruction Speed |
94 ns per step (basic commands) |
| Program Memory |
200 kB (approx. 15k steps) |
| Program Capacity |
Up to 128 programs |
| Scan Modes |
Repetitive, cyclic, interrupt, constant, direct instruction |
| Input Voltage Range |
DC 20.4–28.8 V |
| Input Current |
4 mA per channel |
| Insulation Method |
Photo-coupler isolation |
| Insulation Strength |
AC 560 Vrms, 3 cycles at 2000 m altitude |
| Input Resistance |
5.6 kΩ (standard), 2 kΩ (specific channels) |
| Common Method |
12 points |
| HS Code |
8537101190 |
| Origin |
USA |
| MOQ |
1 |
| Availability |
In Stock |
| System Integration |
DCS |
| Discontinued |
Active (still supported) |
Functional Highlights
-
36 digital input channels and 24 relay outputs for versatile control.
-
High-speed instruction execution at 94 ns per step.
-
Large memory capacity supporting complex automation programs.
-
Multiple scan modes for flexible system operation.
-
Strong insulation and protective design for reliable performance in harsh environments.
-
Compact footprint with robust build quality.
Application Scenarios
-
Large-scale process automation requiring mixed digital and relay control.
-
Machine control systems with high-speed logic execution.
-
Manufacturing plants needing reliable multi-channel input/output modules.
-
Infrastructure projects requiring durable and scalable base modules.
FAQ
Q: How many input and output channels does the module provide? A: The MLI-DR60SU offers 36 digital inputs and 24 relay outputs.
Q: What is the program capacity of this module? A: It supports up to 128 programs with a memory size of 200 kB (approx. 15k steps).
Q: Is the module suitable for international installations? A: Yes, it supports AC 100–240 V input, making it compatible with global voltage standards.
Q: How durable is the insulation system? A: It withstands AC 560 Vrms for three cycles at 2000 m altitude, ensuring strong protection.
