Description
Overview

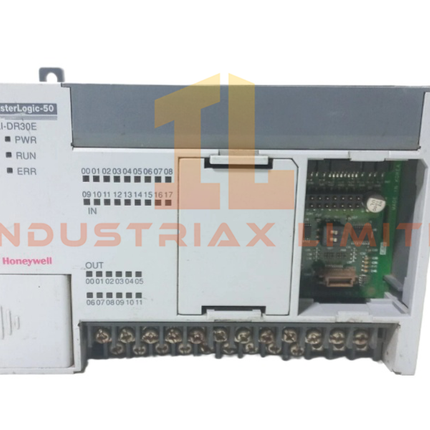

The MLI-DR30E from Honeywell is a high-performance base module designed for distributed control and PLC applications. Compact yet powerful, it provides reliable signal conditioning, fast processing, and versatile input/output capabilities, making it suitable for modern industrial automation environments.
Technical Specifications
-
Model Number: MLI-DR30E
-
Manufacturer: Honeywell
-
Product Type: Base Module
-
System Compatibility: PLC / DCS Systems
-
Condition: Brand New
-
Weight: 1.3 kg
-
Dimensions: 24.5 × 16 × 13.5 cm
-
HS Code: 8537101190
-
Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Status: Active
Electrical and Processing Characteristics
-
Power Supply: AC 100–240V
-
Inputs: 18 channels, DC 24V
-
Outputs: 12 relay channels
-
Processing Speed: 240 ns per step
-
Program Capacity: 50 kB (4k steps), supports up to 128 programs
-
Insulation: Photo-coupler isolation for enhanced safety
-
Rated Load Voltage: DC 12/24V
-
Max Load Current: 0.5A per point, 2A per common terminal
-
Max Load Capacity: AC 250V or DC 125V at 2A
-
Leakage Current (OFF): ≤ 0.1 mA
-
Voltage Drop (ON): ≤ DC 0.4V
Functional Highlights
-
High-speed execution for real-time control.
-
Flexible programming with support for multiple operation modes.
-
Robust insulation and electrical protection for industrial reliability.
-
Compact design suitable for installations with limited space.
-
Optimized for durability and precision in demanding environments.
Application Scenarios
-
Manufacturing plants requiring reliable PLC/DCS integration.
-
Energy and utility sectors with strict uptime requirements.
-
Industrial automation systems needing flexible I/O configurations.
-
Facilities requiring high-speed processing and robust electrical safety.
FAQ
Q: How many I/O channels does the MLI-DR30E provide? A: It offers 18 DC input channels and 12 relay output channels.
Q: What is the processing speed of the module? A: Each step is executed in 240 ns, ensuring fast response times.
Q: Is the module suitable for high-voltage loads? A: Yes, it supports AC loads up to 250V and DC loads up to 125V at 2A.
Q: How does it compare to MLI-DN30E? A: The MLI-DR30E supports AC power supply and relay outputs, while the MLI-DN30E is optimized for DC input/output configurations.
