Description
Overview

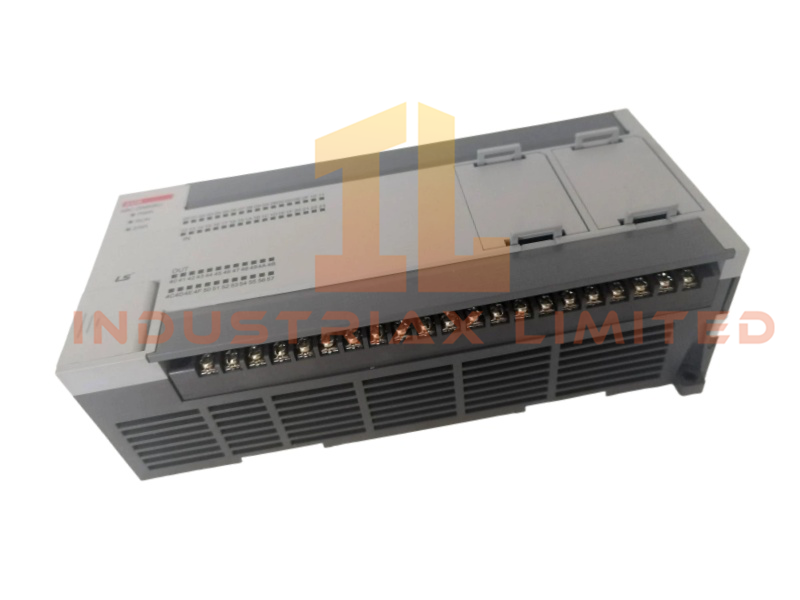

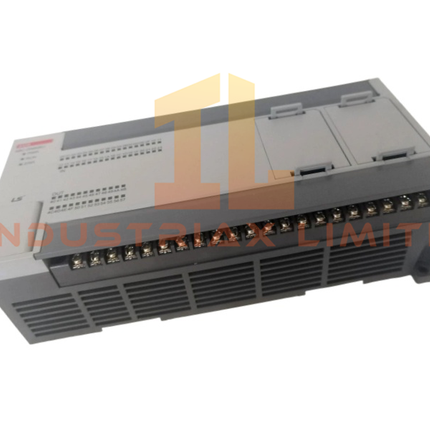

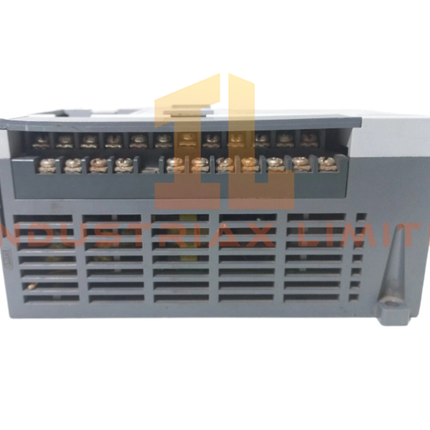

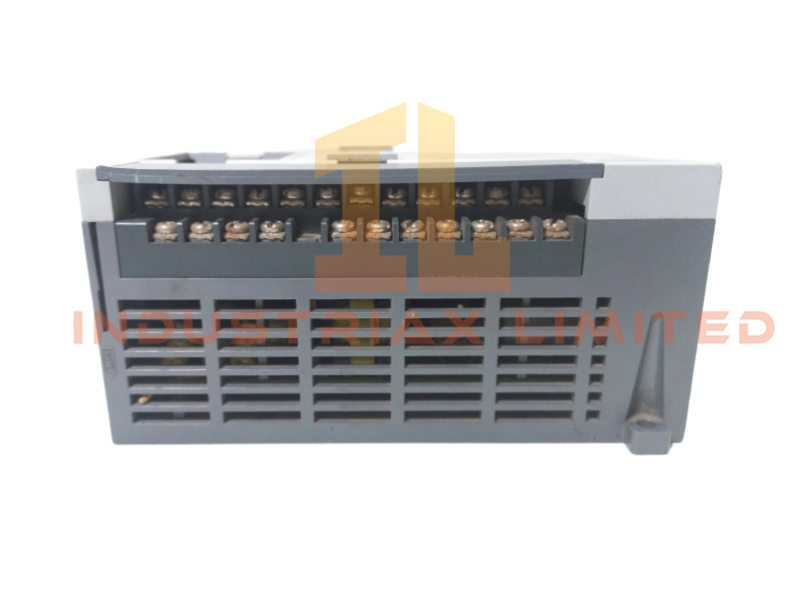

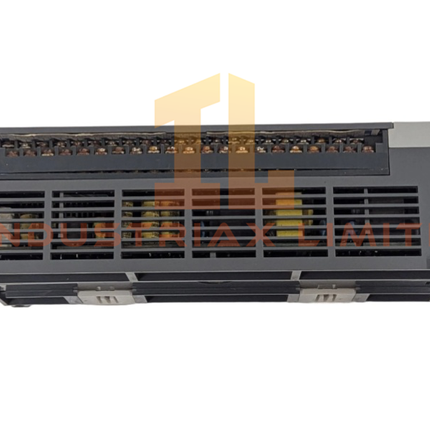

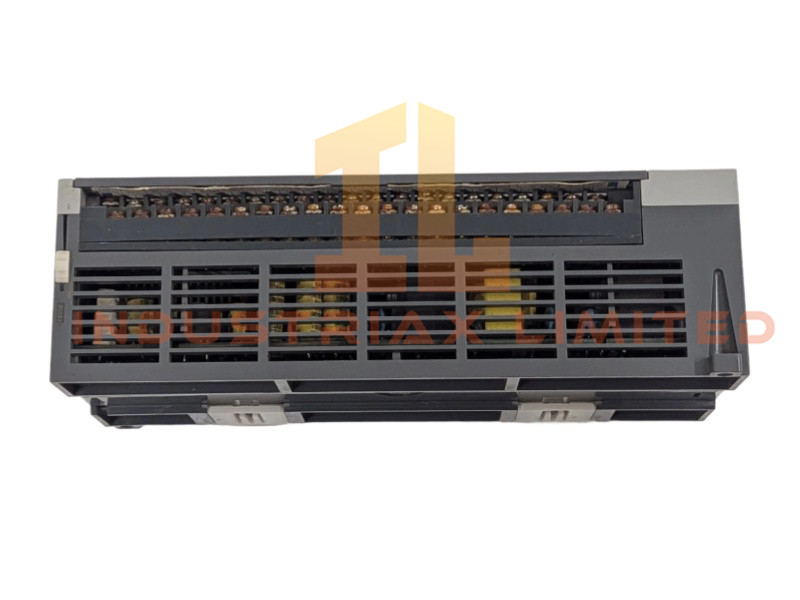

The MLI-DR10E Base Module from Honeywell is a compact digital input/output unit designed for the MasterLogic 50 Series PLC platform. It combines efficient processing speed, reliable insulation, and versatile I/O capabilities, making it a dependable choice for distributed control systems (DCS) and industrial automation environments.
Technical Specifications
| Parameter |
Details |
| Model Number |
MLI-DR10E |
| Manufacturer |
Honeywell |
| Module Type |
Base Module |
| Product Range |
MasterLogic 50 Series |
| Condition |
Brand New |
| Product Origin |
USA |
| Dimensions |
70 × 140 × 145 mm |
| Weight |
1.2 kg |
| System |
DCS |
| HS Code |
8537101190 |
| MOQ |
1 |
| Lead Time |
In Stock |
| Discontinued |
Active (currently available) |
| Power Supply |
AC 100–240 V |
| Digital Inputs |
6 channels, DC 24 V |
| Relay Outputs |
4 channels |
| Processing Speed |
240 ns per step |
| Program Memory |
50 KB (approx. 4k steps) |
| Program Capacity |
Up to 128 programs |
| Input Voltage Range |
20.4–28.8 VDC |
| Rated Input Current |
4 mA |
| Insulation |
Photo-coupler isolation, AC 560 Vrms (3 cycles) |
| Indicators |
Clear ON/OFF thresholds, stable input resistance values |
Key Features
-
Compact design with 6 DC inputs and 4 relay outputs.
-
High-speed processing at 240 ns per instruction.
-
Supports up to 128 programs with 50 KB memory capacity.
-
Photo-coupler insulation for enhanced reliability.
-
Wide input voltage range with strong resistance to ripple and spikes.
-
Diagnostic indicators for accurate input performance monitoring.
-
Rugged construction ensuring durability in demanding industrial conditions.
Application Scenarios
-
Machine control systems requiring compact modules with relay outputs.
-
Process automation in manufacturing and chemical industries.
-
Distributed control systems needing reliable small-scale input/output handling.
-
Industrial environments where insulation and noise suppression are critical.
FAQ
Q: How many inputs and outputs does the MLI-DR10E provide? A: It supports 6 DC inputs and 4 relay outputs.
Q: What is the execution speed of the CPU? A: Each instruction is processed in 240 nanoseconds.
Q: How reliable is the insulation? A: It uses photo-coupler isolation with AC 560 Vrms withstand capability, ensuring robust protection.
