Description
Overview

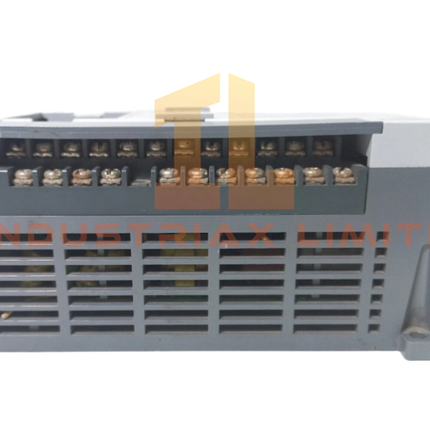

The MLI-DN30E from Honeywell is a DIN rail-mounted base module designed to extend the functionality of MasterLogic PLC systems. Built for demanding industrial automation environments, it combines multiple input and output channels with robust insulation and reliable performance, ensuring stable operation in complex control applications.
Technical Specifications
-
Model Number: MLI-DN30E
-
Manufacturer: Honeywell
-
Product Type: Base Module
-
System Compatibility: MasterLogic PLC / DCS Systems
-
Condition: Brand New
-
Weight: 1.3 kg
-
Dimensions: 7 × 14 × 14.5 cm
-
HS Code: 8537101190
-
Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Communication Interface: Ethernet router
-
Status: Active
Electrical Characteristics
-
Rated Input Voltage: DC 24V at 4 mA
-
Contact Inputs 00–03: 7 mA operating current
-
Operating Voltage Range: DC 20.4V – 28.8V
-
Ripple Rate: < 5%
-
ON Voltage: ≥ DC 19V at ≥ 3 mA
-
OFF Voltage: ≤ DC 6V at ≤ 1 mA
-
Input Resistance: 5.6 kΩ (standard), 3.3 kΩ (contacts 00–03)
-
Insulation Strength: AC 560 Vrms for 3 cycles
-
Altitude Tolerance: Up to 2000 m
Functional Highlights
-
18 DC input channels and 12 relay outputs for versatile signal handling.
-
Photo-coupler insulation technology for enhanced safety and reliability.
-
Compact design with strong mechanical durability.
-
Stable voltage performance with low ripple rate for consistent operation.
-
High insulation capability suitable for harsh industrial conditions.
Application Scenarios
-
Process automation systems requiring multiple I/O channels.
-
Manufacturing plants with strict uptime and safety requirements.
-
Industrial facilities operating at high altitudes or in environments with electrical noise.
FAQ
Q: How many I/O channels does the MLI-DN30E provide? A: It supports 18 DC inputs and 12 relay outputs.
Q: What makes the MLI-DN30E suitable for harsh environments? A: Its insulation strength of AC 560 Vrms and tolerance up to 2000 m altitude ensure reliable performance.
Q: Is the module compatible with other Honeywell PLC systems? A: Yes, it integrates seamlessly with MasterLogic PLC and DCS systems.
