Description
Overview

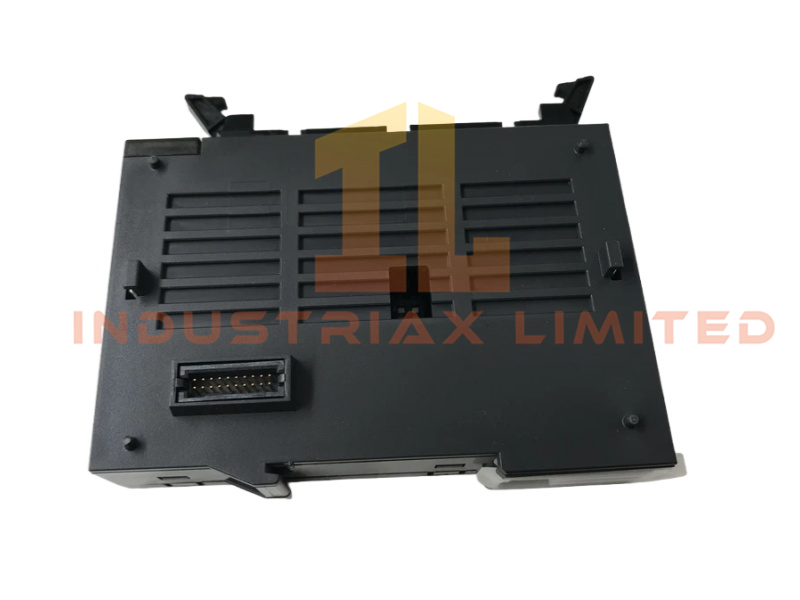

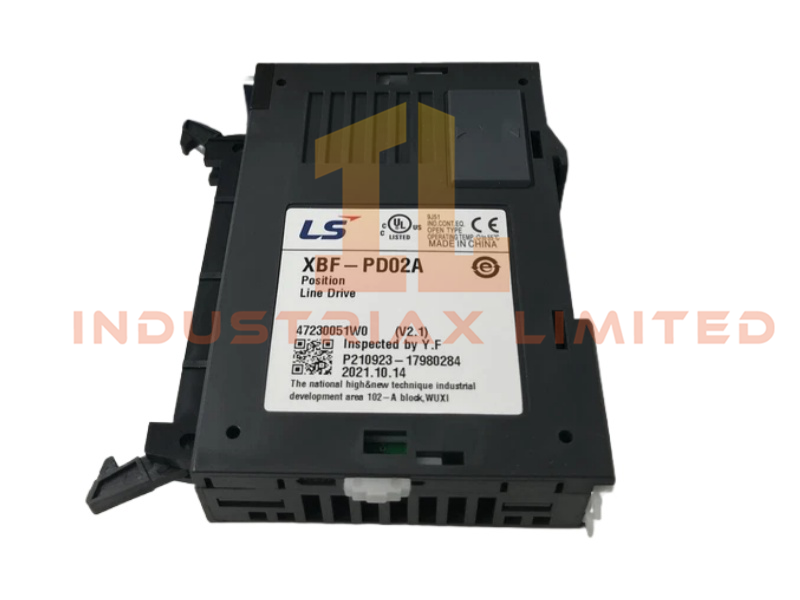

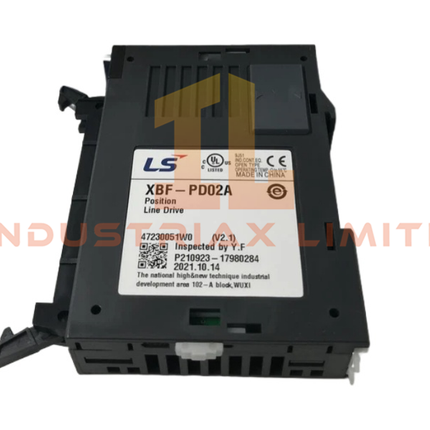

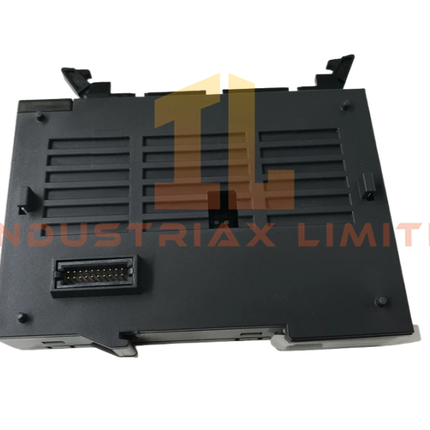

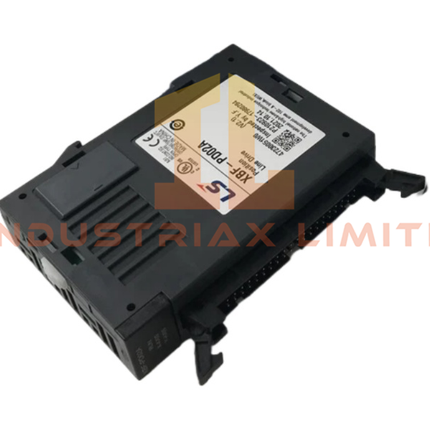

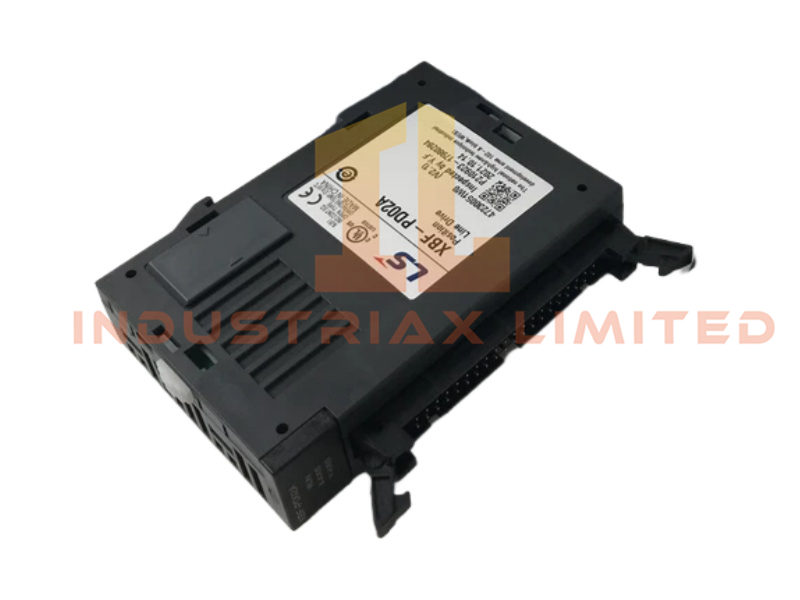

The Honeywell MLF-PD02A Positioning Module delivers precise two-axis motion control for industrial automation systems. Engineers rely on its interpolation capabilities, MPG connectivity, and compact design to achieve accurate positioning in demanding environments.
Technical Specifications
| Parameter |
Details |
| Model Number |
MLF-PD02A |
| Manufacturer |
Honeywell |
| Module Type |
Positioning Module |
| Dimensions |
7 × 14 × 14.5 cm |
| Weight |
0.4 kg |
| HS Code |
8537101190 |
| Control Axes |
2 |
| Output Type |
Line Drive |
| Supported Functions |
Linear and circular interpolation |
| Terminals |
Dedicated MPG connectivity |
| System Compatibility |
MasterLogic PLC, DCS |
| Condition |
Brand New |
| Origin |
USA |
| MOQ |
1 |
| Communication Service |
Ethernet router |
| Discontinued On |
Active |
Functional Highlights
Honeywell designed the MLF-PD02A to support synchronized two-axis movement, enabling smooth contouring operations for CNC machining, robotics, and precision assembly. Its dedicated terminals allow operators to connect manual pulse generators, providing flexibility for calibration and troubleshooting while maintaining automated control.
The MLF-PD02A maintains high-speed positioning accuracy even in harsh industrial environments. Its architecture supports real-time adjustments, ensuring dynamic response to operational changes. The compact 0.4 kg design simplifies installation while delivering robust performance.
Applications and Compatibility
The Honeywell MLF-PD02A suits industries requiring advanced motion control, including manufacturing automation, robotic systems, and precision assembly lines. Engineers deploy this module within MasterLogic PLC platforms to enhance process efficiency, improve product quality, and maintain reliable performance. Its dual capability for automated and manual control makes it a versatile solution for complex industrial setups.
