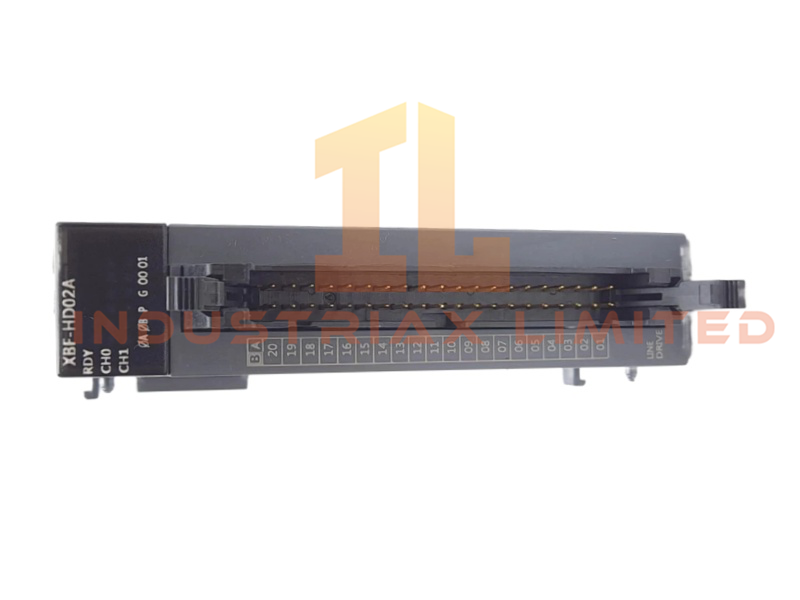

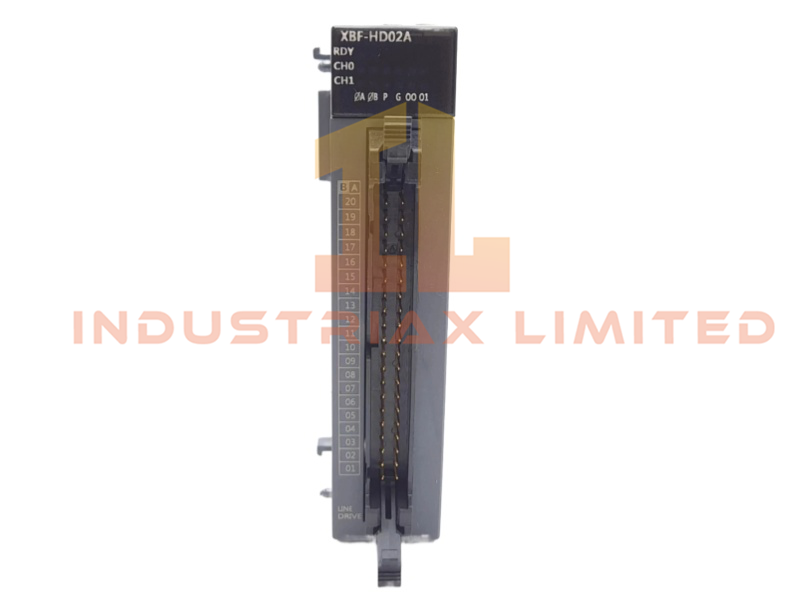

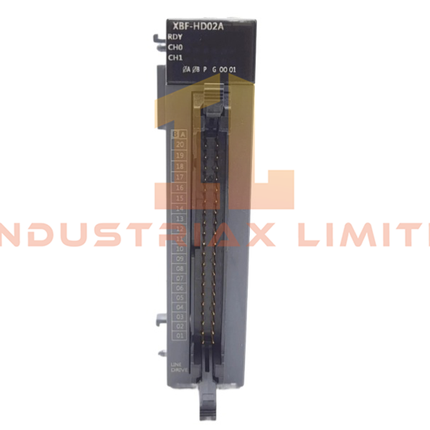

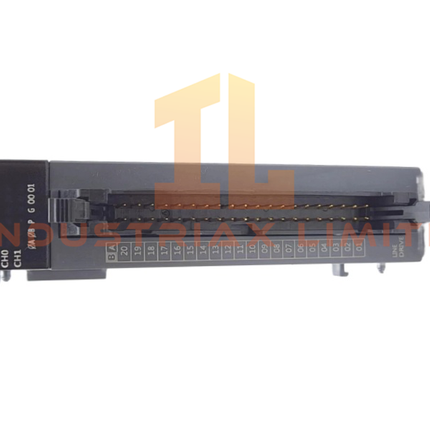

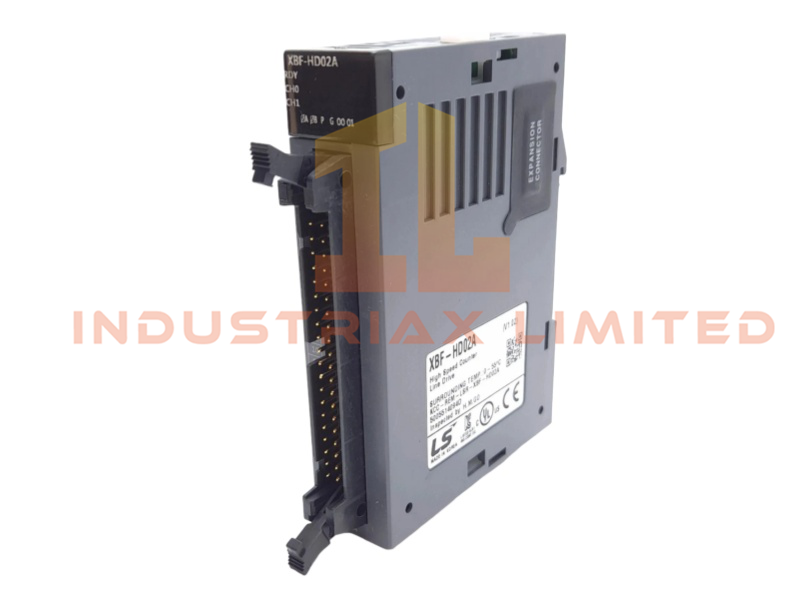

The Honeywell MLF-HD02A High Speed Counter Module delivers precise frequency measurement and rapid pulse counting for demanding automation systems. Honeywell engineered this module with robust specifications to ensure reliable performance in industrial environments.
Technical Specifications
| Parameter |
Details |
| Model Number |
MLF-HD02A |
| Manufacturer |
Honeywell |
| Module Type |
High Speed Counter Module |
| Dimensions |
7 × 14 × 14.5 cm |
| Weight |
0.4 kg |
| HS Code |
8537101190 |
| Input Channels |
2 |
| Max Counting Speed |
500 kpps (RS-422A), 250 kpps (HTL) |
| Counter Range |
32-bit signed |
| Connector |
40-pin external I/O |
| Control Signal Levels |
DC 5V, 12V, 24V |
| I/O Points |
Fixed 64 |
| Current Consumption |
260 mA |
| System Compatibility |
DCS, MasterLogic architecture |
| Origin |
USA |
| Condition |
Brand New |
Functional Highlights
Honeywell designed the MLF-HD02A with differential input capability, supporting RS-422A Line Drive and HTL Level Drive signals. The module ensures stable operation in noisy environments while maintaining accurate pulse counting. Engineers benefit from its secure 40-pin connector, which simplifies installation and preserves signal integrity.
The MLF-HD02A supports multiple input modes including 1-phase, 2-phase, and CW/CCW, offering flexibility for encoder and sensor integration. Its 32-bit signed counter range enables long-duration processes and high-resolution positioning tasks.
Applications and Compatibility
The Honeywell MLF-HD02A integrates seamlessly into MasterLogic control systems, making it ideal for industries requiring precise motion control, frequency monitoring, and rapid pulse acquisition. Compatible with a wide range of industrial sensors, this module suits applications in manufacturing automation, robotics, and process monitoring.
