Description
Overview

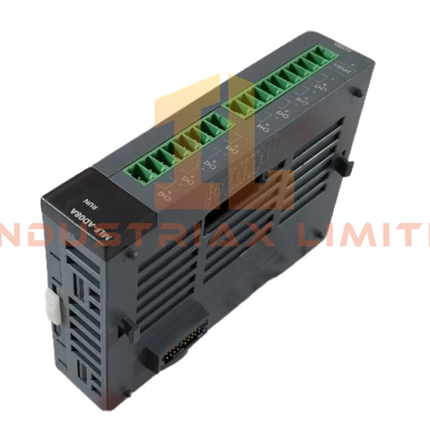

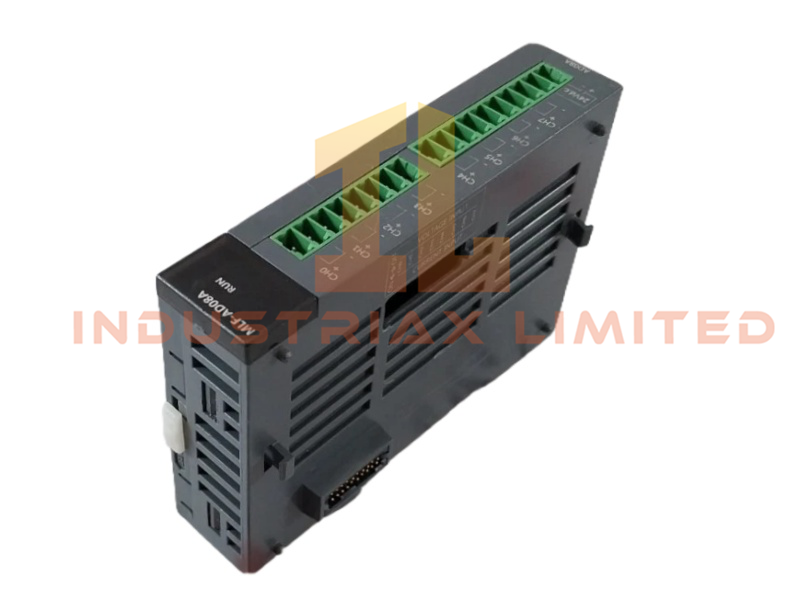

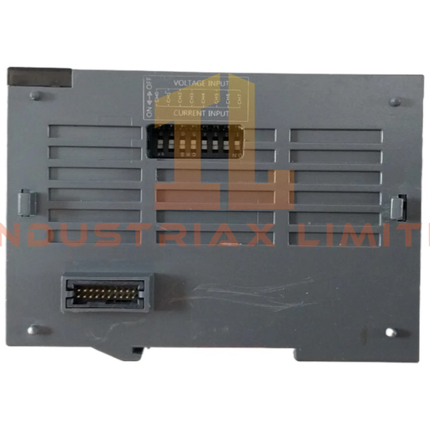

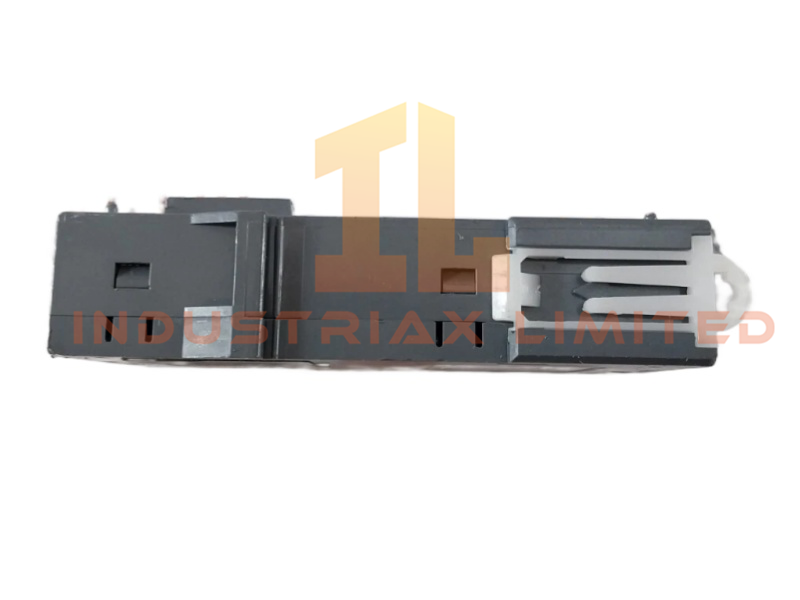

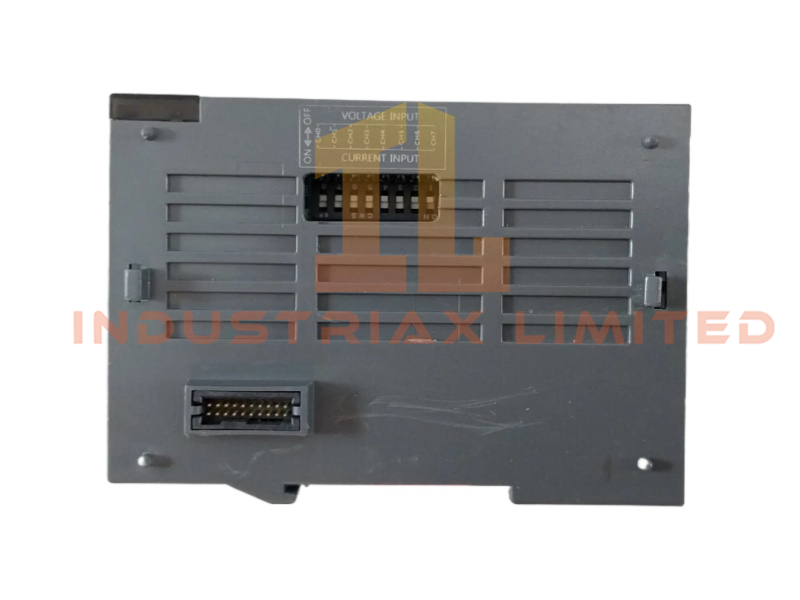

The Honeywell MLF-AD08A Analog Input Module provides eight high-density channels for flexible industrial sensing. Engineers use it with the MasterLogic-50 PLC series to capture voltage and current signals across ranges such as 0–10V, ±10V, 4–20mA, and 0–20mA. Its compact 7×14×14.5 cm design and 0.4 kg weight simplify installation while ensuring robust performance.
Technical Specifications
| Parameter |
Specification |
| Model Number |
MLF-AD08A |
| Manufacturer |
Honeywell |
| Module Type |
Analog Input Module |
| System Compatibility |
MasterLogic-50 PLC, DCS |
| Channels |
8 analog input channels |
| Resolution |
12-bit conversion |
| Signal Ranges |
0–10V, ±10V, 4–20mA, 0–20mA |
| Data Formats |
Unsigned (0–4000), Signed (-2000–2000), Percentile (0–1000) |
| Input Impedance |
1 MΩ minimum for voltage signals |
| Burden Resistor |
250 Ω for current loops |
| Dimensions |
7 × 14 × 14.5 cm |
| Weight |
0.4 kg |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
Brand New |
| MOQ |
1 |
| Communication Service |
Ethernet router |
Functional Highlights
The Honeywell MLF-AD08A translates analog signals into precise digital values using 12-bit resolution. Programmers gain flexibility with multiple data formats, including engineering units and percentile ranges. High input impedance and a standard burden resistor ensure accurate measurement while minimizing electrical loading.
Applications and Compatibility
The Honeywell MLF-AD08A supports industries requiring precise analog input, including manufacturing, energy, and process control. Engineers integrate it into MasterLogic-50 PLC systems to monitor sensors, manage variables, and maintain automation stability in noisy environments. Its versatility makes it ideal for complex industrial applications demanding reliability and precision.
