Product Description

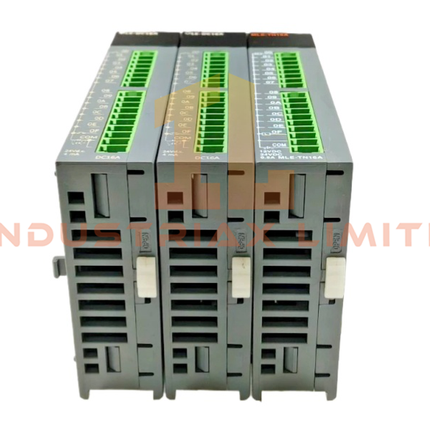

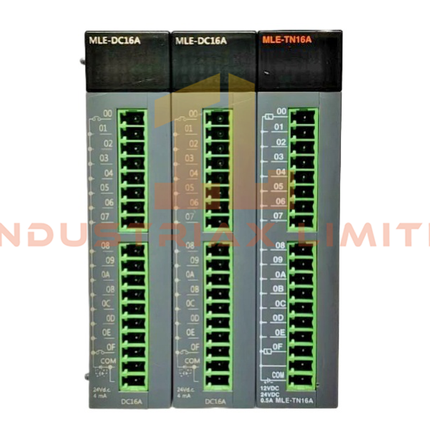

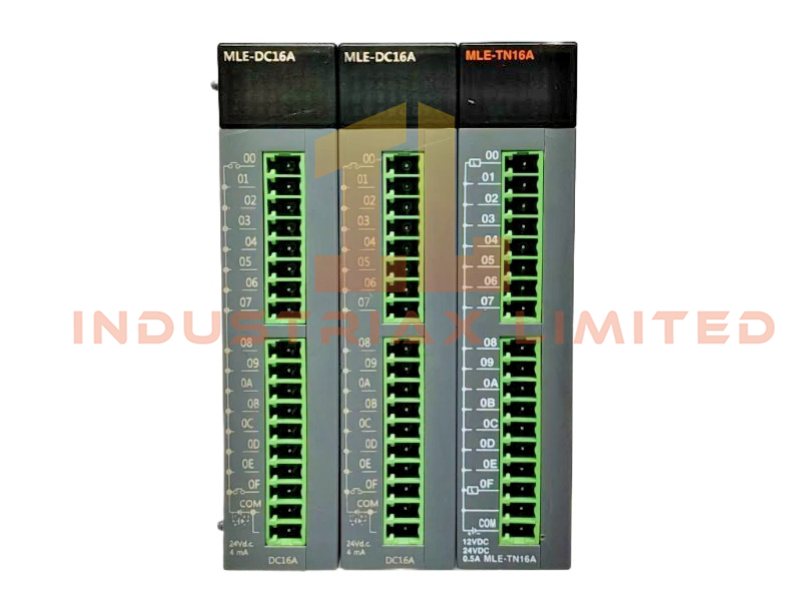

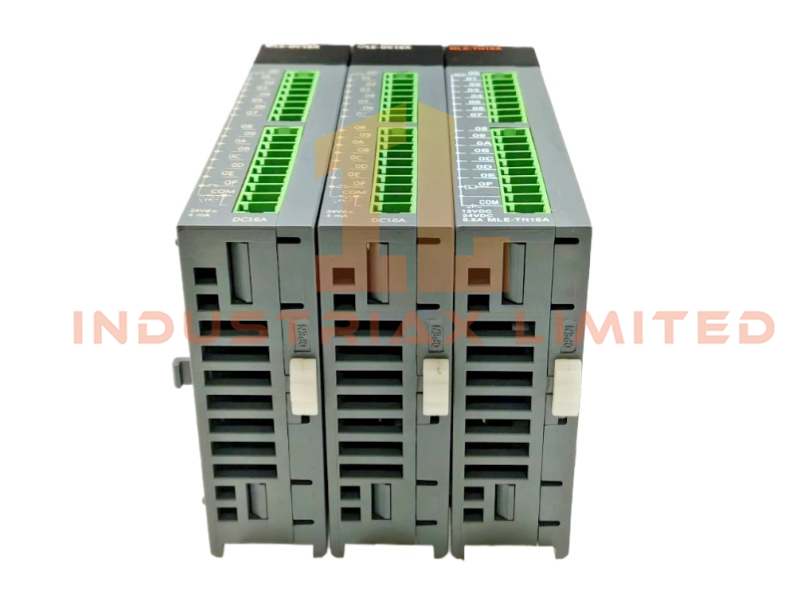

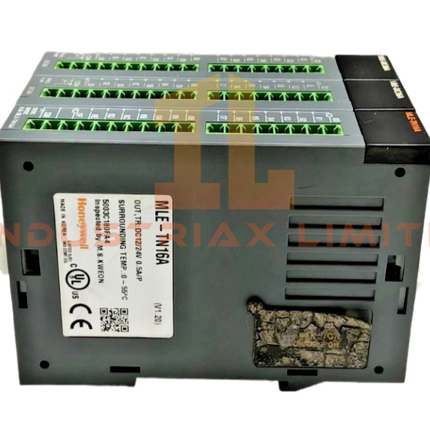

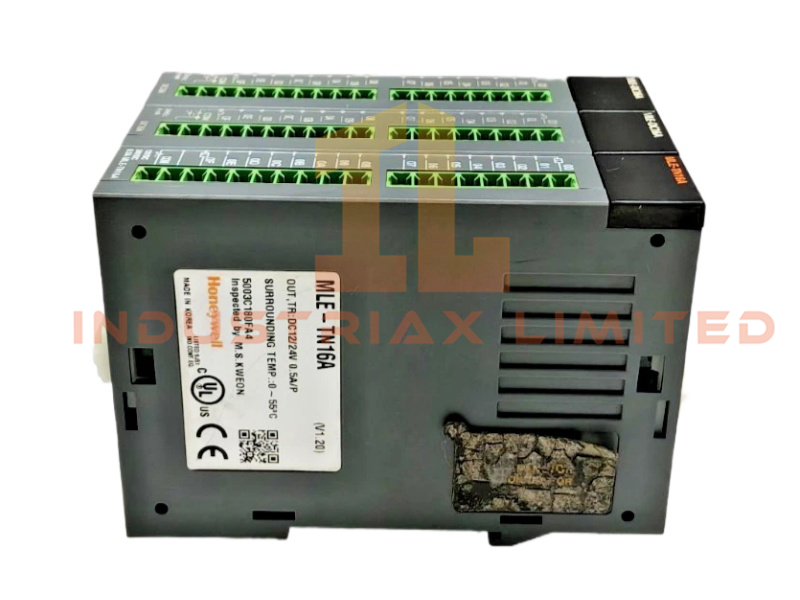

The MLE-TN16A Digital Relay Output Module from Honeywell is a compact, high‑density output solution designed for the MasterLogic 50 programmable logic controller platform. With 16 transistor‑based sinking outputs, this module provides precise control of DC24V loads, making it suitable for relays, solenoids, indicators, and small motors in demanding industrial environments.
Technical Specifications
-
Model Number: MLE-TN16A
-
Manufacturer: Honeywell
-
Product Type: Digital Relay Output Module
-
Condition: Brand New
-
System Compatibility: MasterLogic 50 PLC, DCS systems
-
Channels: 16 sinking‑type transistor outputs
-
Rated Load Voltage: DC 24 V
-
Load Type: Relays, solenoids, indicators, small motors
-
Isolation: Electrical isolation via open collector configuration
-
Status Indicators: Individual LED indicators for each channel
-
Connection: Plug‑in terminals for simplified wiring
-
Dimensions: 7 × 14 × 14.5 cm
-
Weight: 0.4 kg
-
HS Code: 8537101190
-
Minimum Order Quantity (MOQ): 1
-
Origin: USA
-
Status: Active, available in stock
Functional Overview
The MLE-TN16A provides reliable digital output control with electrical isolation for enhanced safety. Each channel operates independently, enabling precise execution of automation sequences. LED indicators allow quick diagnostics, while the plug‑in design reduces installation time and ensures secure connections. Its compact footprint makes it ideal for control cabinets with limited space.
Application Areas
-
Manufacturing automation systems
-
Process control environments
-
Material handling and logistics equipment
-
Compact control panels requiring multiple outputs
FAQ
Q: How many outputs does the MLE-TN16A provide? A: It offers 16 transistor‑based sinking outputs for DC24V loads.
Q: What devices can be controlled with this module? A: Relays, solenoids, indicators, and small motors are supported.
Q: Does the module provide diagnostic features? A: Yes, each channel has an LED indicator for quick status monitoring.
Q: Is it compatible with other MasterLogic modules? A: It integrates seamlessly with the MasterLogic 50 series controllers.
