Description
Overview

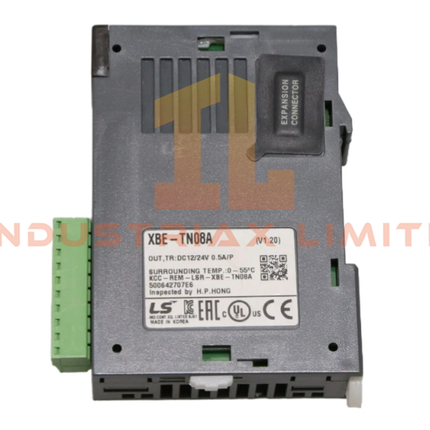

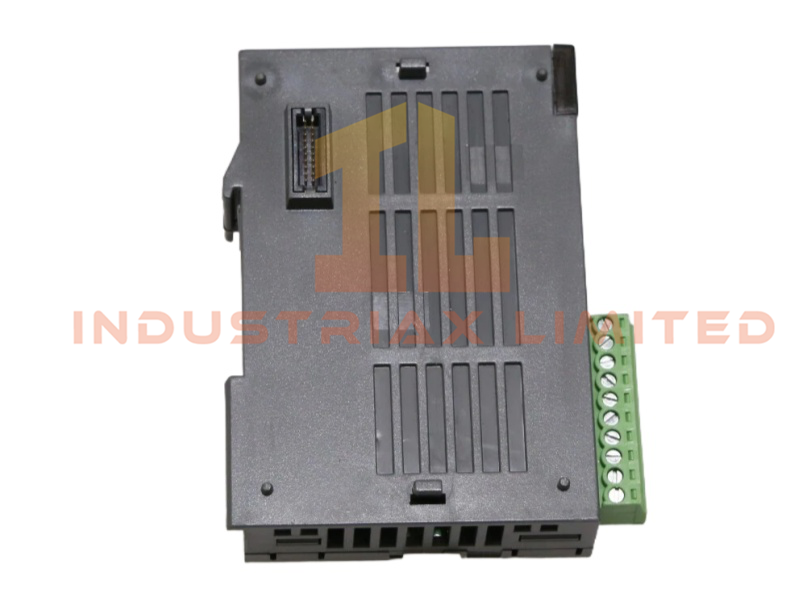

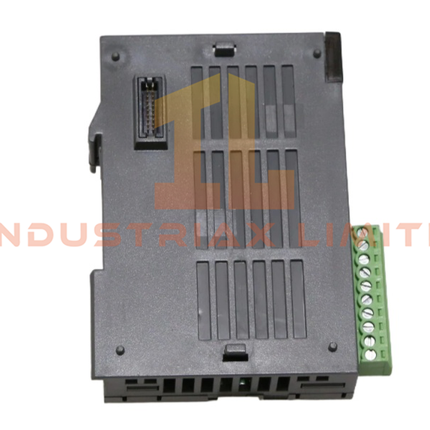

The MLE-TN08A from Honeywell is an 8-channel digital output module designed for the MasterLogic ML50 PLC platform. Compact and efficient, it provides sinking-type transistor outputs for controlling DC loads up to 24V, making it suitable for relays, solenoids, indicators, and other industrial devices.
Technical Specifications
-
Model Number: MLE-TN08A
-
Manufacturer: Honeywell
-
Product Type: Digital Relay Output Module
-
System Compatibility: MasterLogic ML50 PLC / DCS Systems
-
Condition: Brand New
-
Weight: 0.4 kg
-
Dimensions: 7 × 14 × 14.5 cm
-
HS Code: 8537101190
-
Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Status: Active
Electrical and Functional Characteristics
-
Output Channels: 8 sinking-type transistor outputs
-
Load Voltage: Up to 24V DC
-
Output Configuration: Open collector design for flexible interfacing
-
Indicators: LED status lights for each channel
-
Connection Type: Plug-in terminals for simplified wiring
-
Isolation: Electrical isolation for enhanced safety
-
Reliability: Stable operation in environments with electrical noise and vibration
Functional Highlights
-
Provides precise digital output control for industrial automation.
-
Compact design optimized for space-limited control cabinets.
-
LED indicators allow quick diagnostics and monitoring.
-
Easy installation with plug-in connectors reduces setup time.
-
Seamless integration with MasterLogic ML50 systems.
Application Scenarios
-
Manufacturing plants requiring reliable digital output control.
-
Process industries managing solenoids, relays, and signaling devices.
-
Building automation systems needing compact output modules.
-
Industrial environments with electrical noise and vibration challenges.
FAQ
Q: How many outputs does the MLE-TN08A provide? A: It offers 8 sinking-type transistor outputs.
Q: What voltage can the outputs handle? A: Each channel supports loads up to 24V DC.
Q: Does the module include diagnostics? A: Yes, LED indicators provide real-time output status monitoring.
Q: How does it compare to MLE-TN16A? A: The MLE-TN08A provides 8 outputs, while the MLE-TN16A offers 16 channels for higher capacity applications.
