Description
Overview

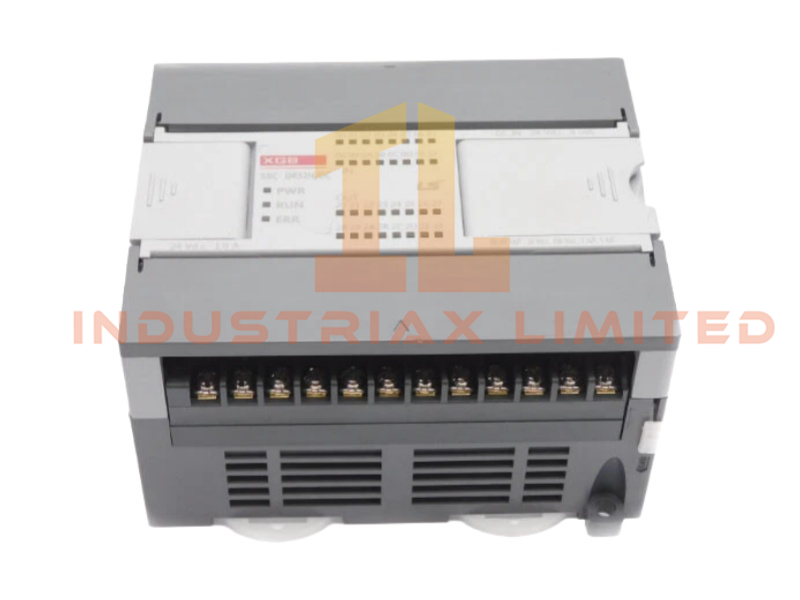

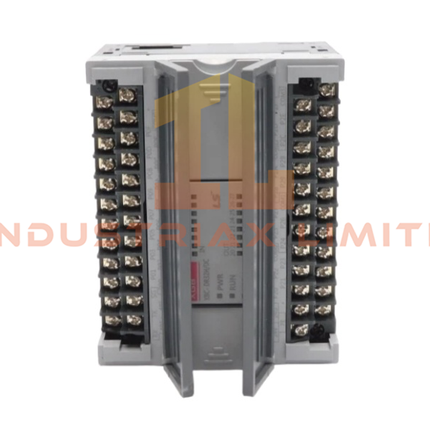

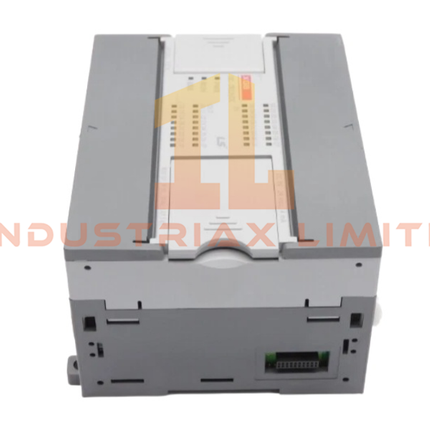

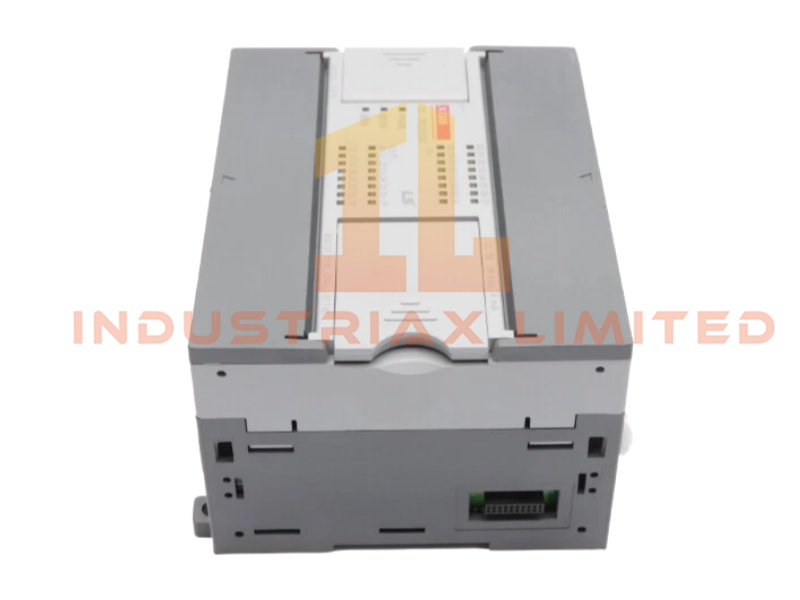

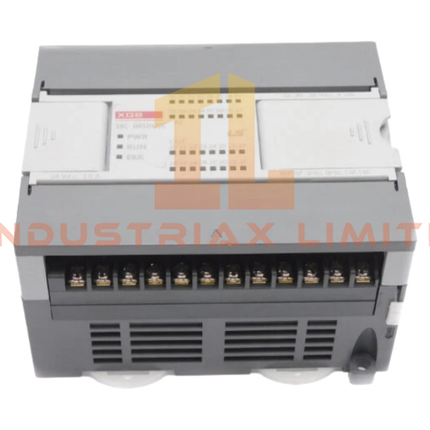

The Honeywell MLC-DR64H/DC Digital Output Module integrates 32 DC inputs and 32 relay outputs in one compact unit. Honeywell designed this module for the MasterLogic ML50 PLC system, ensuring reliable high-density I/O control in industrial automation environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
MLC-DR64H/DC |
| Manufacturer |
Honeywell |
| Module Type |
Digital Output Module |
| Input Voltage |
24 VDC |
| Inputs / Outputs |
32 DC inputs / 32 relay outputs |
| Rated Load |
DC24V 2A resistive, AC220V 2A unity PF |
| Max Load Voltage |
AC250V / DC125V |
| Current Capacity |
2A per point |
| OFF Leakage Current |
0.1 mA at AC220V/60Hz |
| Switching Frequency |
3,600 operations per hour |
| Common Terminal Capacity |
5A |
| Minimum Load |
DC5V / 1mA |
| Dimensions |
7 × 14 × 14.5 cm |
| Weight |
1.32 kg |
| HS Code |
8537101190 |
| Origin |
USA |
| System |
DCS / MasterLogic ML50 PLC |
| Communication Service |
Ethernet router |
| MOQ |
1 |
Design and Build
Honeywell engineered the MLC-DR64H/DC with relay insulation and robust construction to withstand industrial challenges. Its compact dimensions simplify installation in space-constrained panels, while electrical isolation ensures protection for connected systems.
Performance
The MLC-DR64H/DC delivers precise control with minimal leakage current and high switching frequency. Its ability to handle AC250V or DC125V load voltages with 2A current capacity per point ensures reliable operation across diverse industrial applications.
Applications and Compatibility
The Honeywell MLC-DR64H/DC integrates seamlessly with MasterLogic ML50 PLC systems. Industries deploy this module for machine control, process automation, and equipment monitoring. Its high point density and durable design make it essential for automation environments requiring extensive digital I/O capabilities.
