Description
Overview

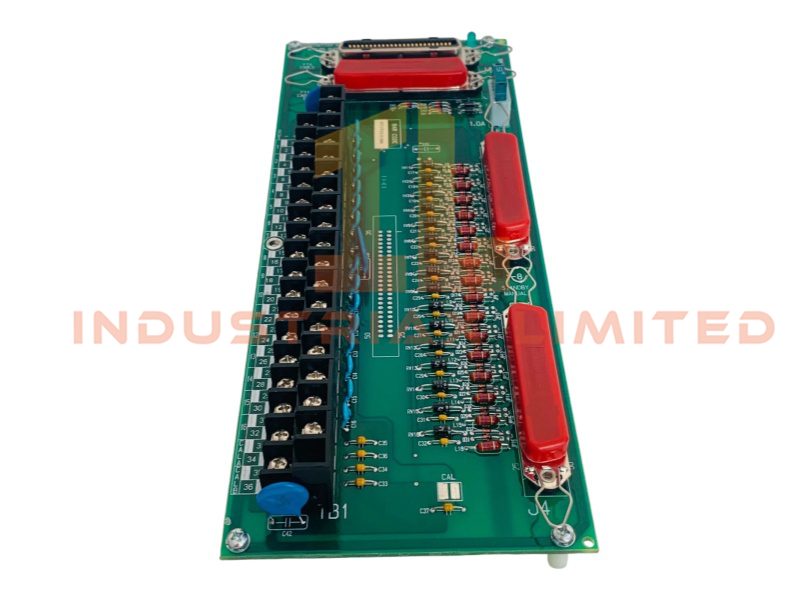

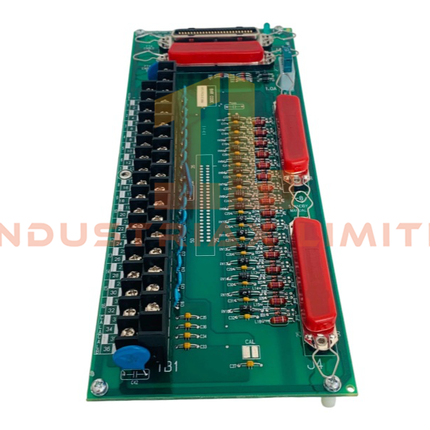

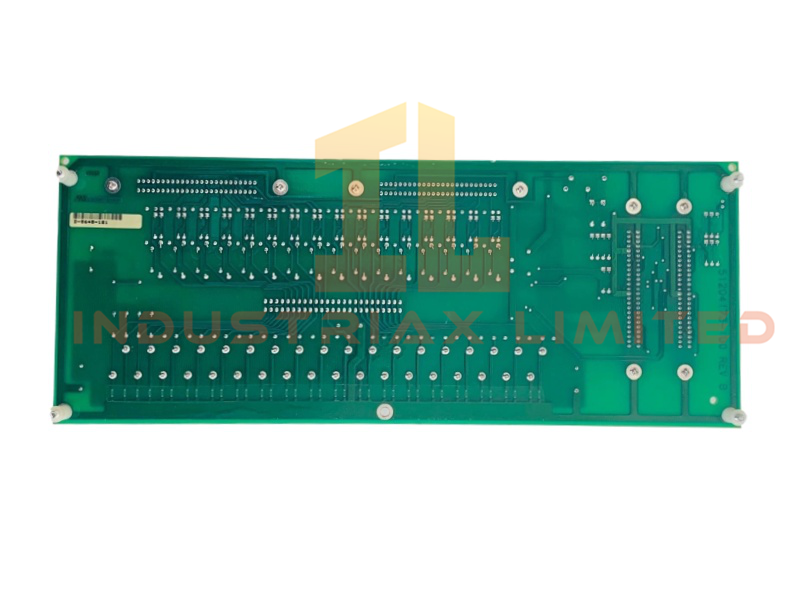

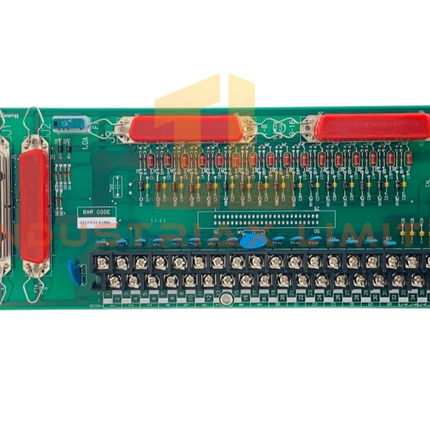

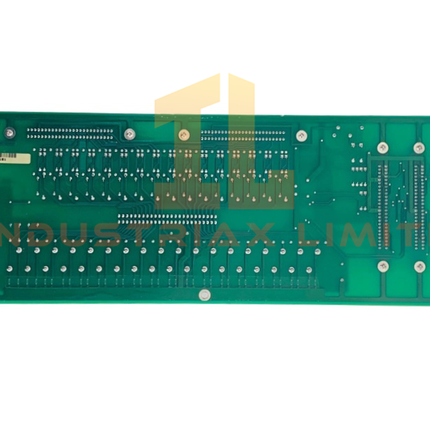

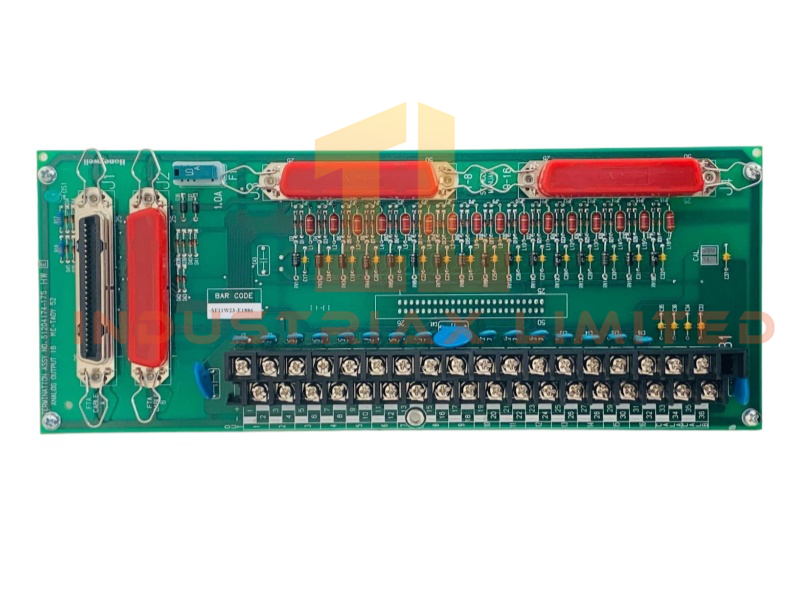

The MC-TAOY52 51204174-175 Honeywell Analog Output Module is a 16-channel output card engineered for precision signal control in distributed control systems (DCS). Designed for integration with Honeywell’s TPS Process Manager I/O platform, it provides reliable 4–20 mA analog outputs with exceptional accuracy and stability, ensuring dependable communication with field devices such as actuators, regulators, and valves.
Technical Specifications
| Parameter |
Specification |
| Model Number |
MC-TAOY52 51204174-175 |
| Product Type |
Analog Output Module |
| Brand |
Honeywell |
| Condition |
New |
| Product Range |
Honeywell TPS Process Manager I/O |
| System Compatibility |
DCS |
| Output Channels |
16 |
| Output Type |
4–20 mA |
| Accuracy |
±0.05% linearity, ±0.05% resolution |
| Readback Accuracy |
±4% |
| Temperature Stability |
±0.02% full scale per °C |
| Humidity Stability |
±0.1% full scale |
| Output Ripple |
≤100 mV peak-to-peak at line frequency |
| Output Current Range |
0–21.1 mA (settable) |
| Power Consumption |
≤10 W |
| Connection |
Field Termination Assemblies (FTA), compression/screw terminals, supports up to 14 AWG wire |
| Cable Length |
Up to 50 m |
| Dimensions |
9.5 × 12.7 × 2.5 cm |
| Weight |
0.58 kg |
| Origin |
USA |
| HS Code |
8537101190 |
| MOQ |
1 |
| Availability |
In Stock |
Key Features
-
16-channel analog output for high-density signal control
-
Supports 4–20 mA output with configurable current range
-
High accuracy and linearity for precise process control
-
Excellent temperature and humidity stability for harsh environments
-
Low ripple and noise for clean signal transmission
-
Compact design with secure FTA connections for easy installation
Application Scenarios
-
Process industries requiring precise analog control of valves and actuators
-
Manufacturing automation systems with high-density analog output needs
-
Energy and utility facilities needing stable analog signal transmission
-
Chemical and petrochemical plants requiring rugged and reliable output modules
FAQ
Q: What output type does the MC-TAOY52 51204174-175 support? A: It provides 4–20 mA analog outputs across 16 channels.
Q: How accurate is the module? A: It offers ±0.05% linearity and resolution, with ±4% readback accuracy.
Q: What installation options are available? A: It connects via FTAs using compression or screw-type terminals, supporting wire sizes up to 14 AWG.
Q: How does it compare to the Honeywell MC-PAOY22/ 80363969-176? A: The MC-TAOY52 is optimized for 4–20 mA outputs, while the MC-PAOY22 supports both voltage (0–10 VDC) and current outputs, offering broader flexibility.
