Description
Overview

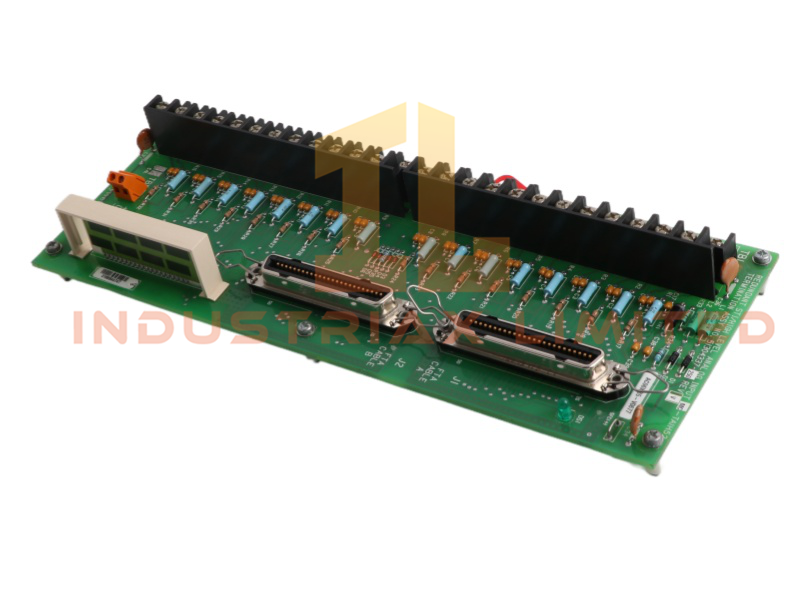

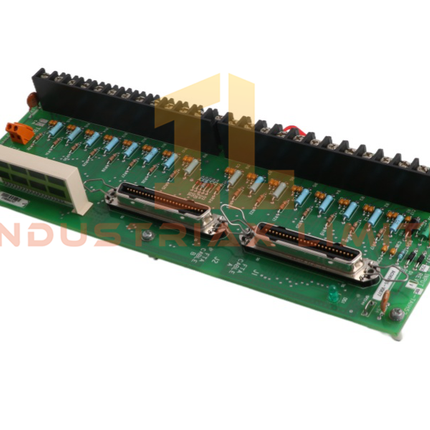

The MC-TAIH52 51304337-250 Analog Input Module from Honeywell is a precision-engineered unit designed for high-accuracy signal acquisition in distributed control systems (DCS). With 16 differential input channels, advanced filtering, and robust noise immunity, it ensures reliable data collection even in electrically challenging environments. Compact and durable, this module integrates seamlessly into Honeywell’s control architecture, supporting critical industrial automation applications.
Technical Specifications
| Parameter |
Details |
| Model Number |
MC-TAIH52 51304337-250 |
| Manufacturer |
Honeywell |
| Module Type |
Analog Input Module |
| Product Range |
Honeywell DCS |
| Condition |
Brand New |
| Product Origin |
USA |
| Dimensions |
32 × 27.9 × 2.9 cm |
| Weight |
0.38 kg |
| System |
DCS |
| HS Code |
8537101190 |
| MOQ |
1 |
| Lead Time |
In Stock |
| Discontinued |
Active (currently available) |
| Input Channels |
16 differential inputs |
| Input Voltage Range |
±30 V |
| Input Impedance |
> 10 MΩ |
| Common-Mode Rejection |
70 dB (DC to 60 Hz) |
| Normal-Mode Rejection |
32 dB at 60 Hz |
| A/D Converter |
16-bit (14 effective bits) |
| Filter |
Single-pole RC, -3 dB cutoff at 1 Hz |
| Noise Immunity |
IEC61131-2 compliant: ±1,500 V impulse, 4 kV ESD, 27–500 MHz at 10 V/m |
| Integration |
Compatible with Honeywell field termination assemblies |
Key Features
-
16-channel differential analog input for high-density signal acquisition.
-
Wide input voltage range (±30 V) with high input impedance.
-
Advanced noise immunity compliant with IEC61131-2 standards.
-
16-bit A/D conversion with effective 14-bit resolution.
-
RC filtering for enhanced signal integrity in noisy environments.
-
Compact and lightweight design for easy cabinet integration.
-
Reliable performance across diverse industrial applications.
Application Scenarios
-
Process monitoring requiring precise analog signal acquisition.
-
Safety systems needing high common-mode rejection.
-
Data acquisition in chemical, oil & gas, and power generation industries.
-
Industrial environments with high electrical noise where accuracy is critical.
FAQ
Q: How many input channels does the MC-TAIH52 51304337-250 provide? A: It supports 16 differential analog input channels.
Q: What is the resolution of the A/D converter? A: It uses a 16-bit converter with 14 effective bits.
Q: Is the module suitable for noisy environments? A: Yes, it complies with IEC61131-2 standards for impulse, ESD, and electromagnetic noise resistance.
