Description

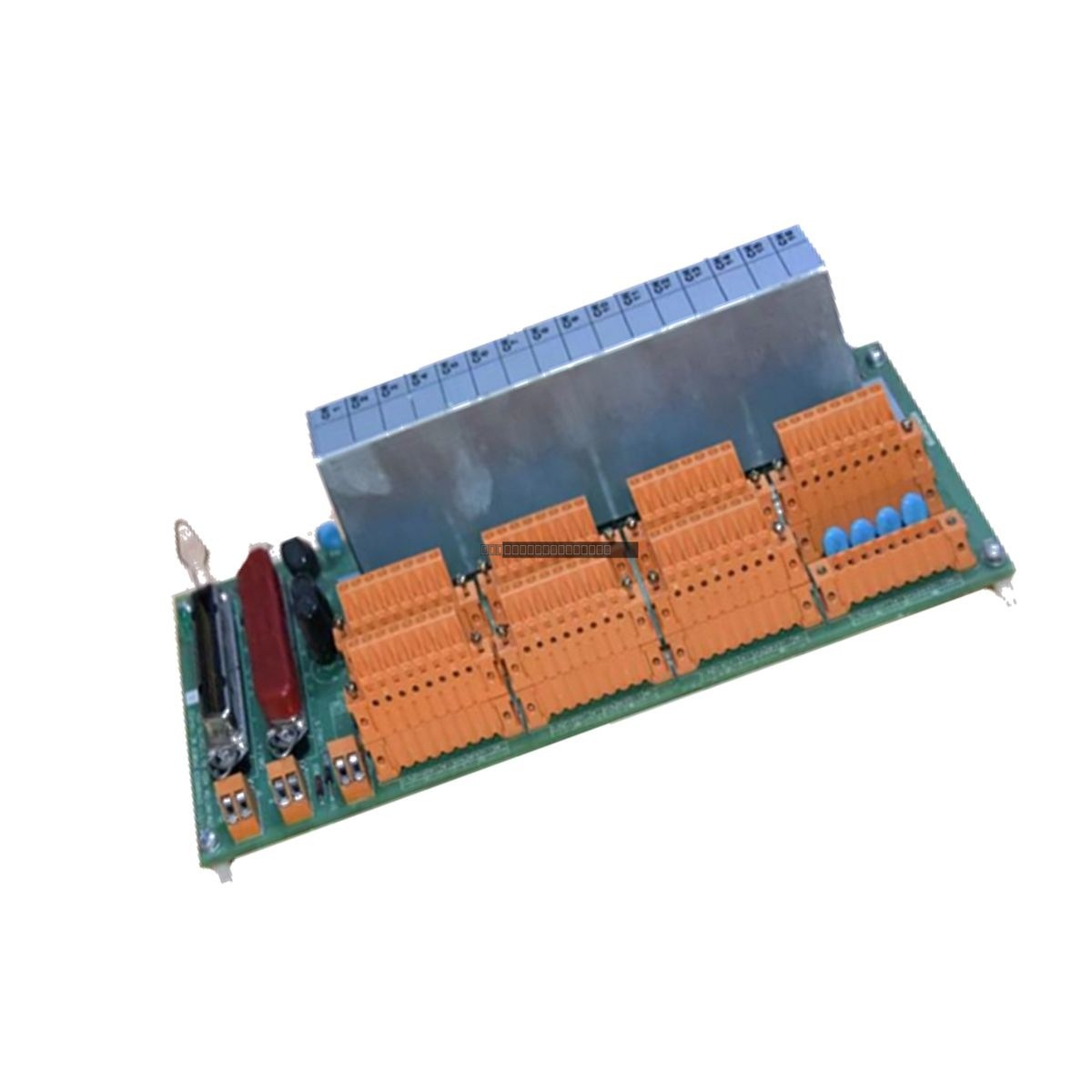

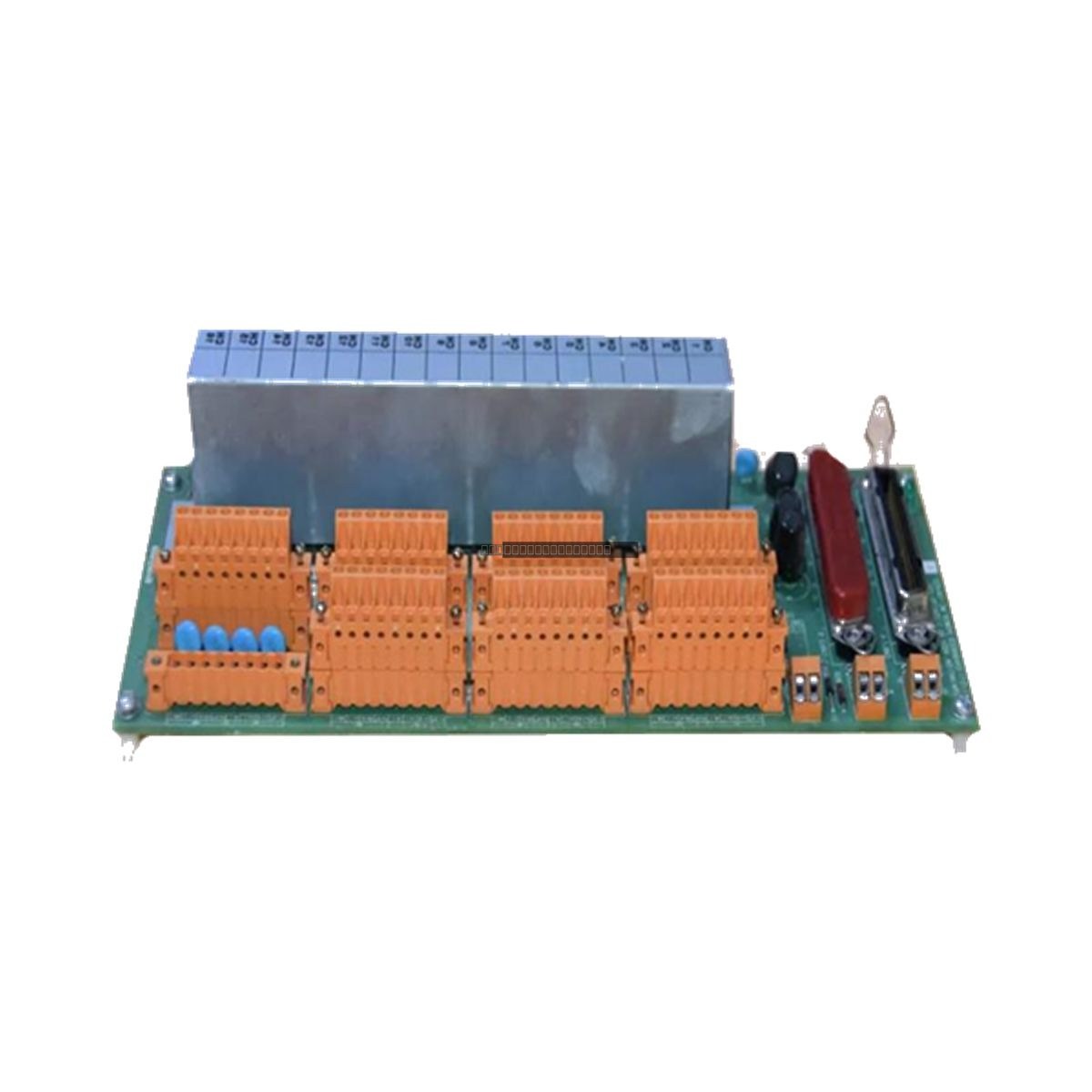

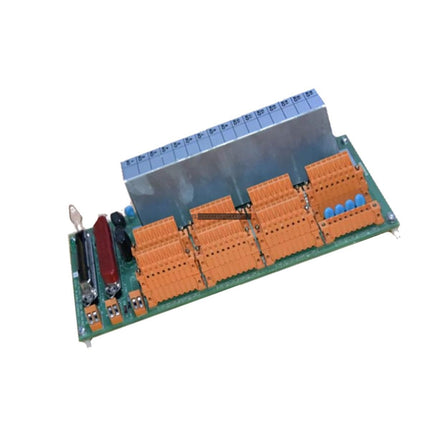

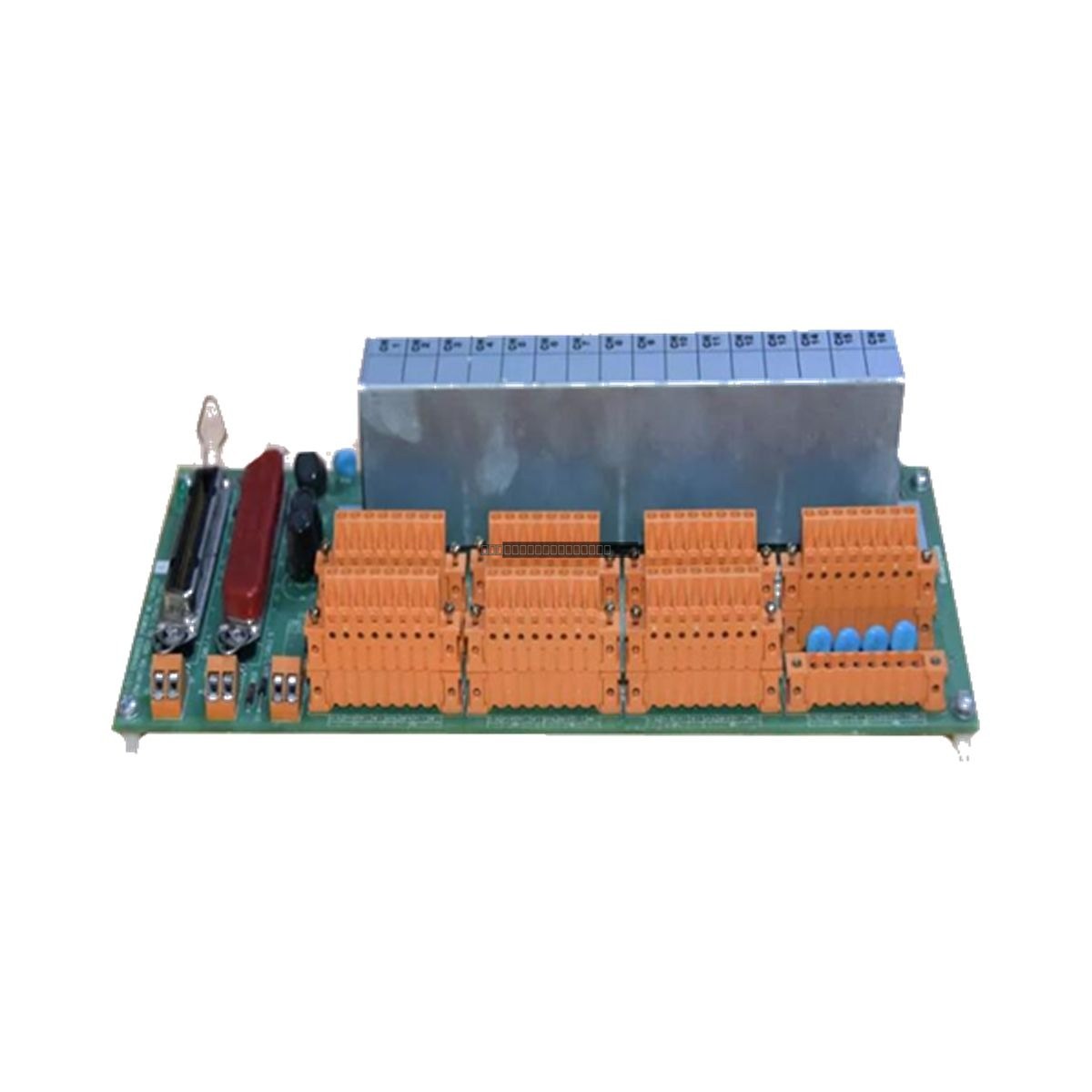

The Honeywell MC-TAIH22 is an Enhanced Power High-Level STI Analog Input Field Termination Assembly (FTA) engineered for reliable signal acquisition in demanding industrial control environments. This 16-channel assembly serves as a critical interface between field-mounted instrumentation and Honeywell distributed control systems, ensuring precise signal conditioning and robust connectivity for process control loops.
Features
-
High-Density Connectivity: Provides 16 dedicated channels for high-level analog inputs and Smart Transmitter Interface (STI) compatibility.
-
Enhanced Power Design: Optimized for improved signal stability, effectively mitigating the impact of electrical interference and noise common in large-scale industrial settings.
-
System Integration: Designed for seamless compatibility with Honeywell I/O infrastructure, facilitating streamlined installation and simplified cabinet wiring.
-
Industrial Reliability: Built for continuous operation in process plants, contributing to reduced maintenance requirements and enhanced measurement accuracy.
Applications
The MC-TAIH22 is widely utilized in sectors requiring high-precision analog monitoring, including oil and gas refining, power generation, chemical processing, and large-scale manufacturing. It is primarily used to interface field transmitters with the control system, ensuring that process variables are accurately represented within the automation architecture.
Technical Specifications
| Model |
MC-TAIH22 |
| Manufacturer |
Honeywell |
| Module Type |
Analog Input Field Termination Assembly (FTA) |
| Channel Count |
16 Channels |
| Input Compatibility |
High-level analog and STI |
| Operating Temperature |
0 to 60 deg C |
| Power Source |
System powered via I/O infrastructure |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the FTA to prevent electrical damage.
- Mount the assembly within a clean, dry, and climate-controlled cabinet environment to maintain signal integrity.
- Use appropriate shielded cabling for field inputs to minimize EMI/RFI interference.
- Verify that all terminal connections are secure and properly seated to prevent intermittent signal loss.
- Follow standard ESD (Electrostatic Discharge) handling procedures when interacting with the assembly electronics.
FAQ
What is the primary function of the MC-TAIH22?
The MC-TAIH22 acts as a field termination assembly that conditions and routes up to 16 high-level analog or STI signals into the Honeywell control system, ensuring accurate process data acquisition.
Is this module compatible with Smart Transmitters?
Yes, the MC-TAIH22 is specifically designed to support Smart Transmitter Interface (STI) signals in addition to standard high-level analog inputs.
What environmental conditions are required for operation?
This module is intended for typical industrial environments with an operating temperature range between 0 and 60 deg C.
