Description
Overview

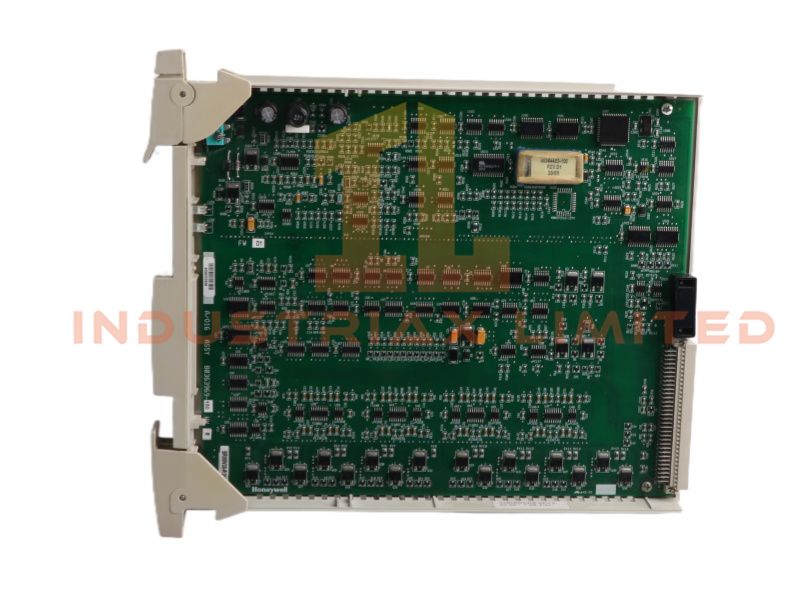

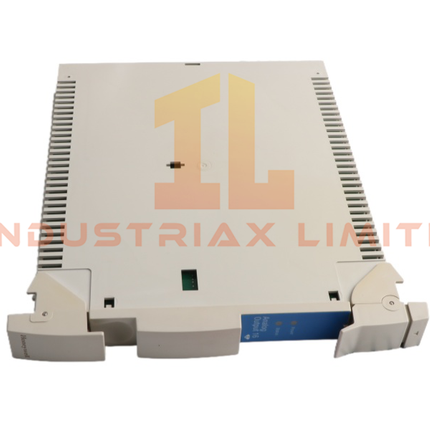

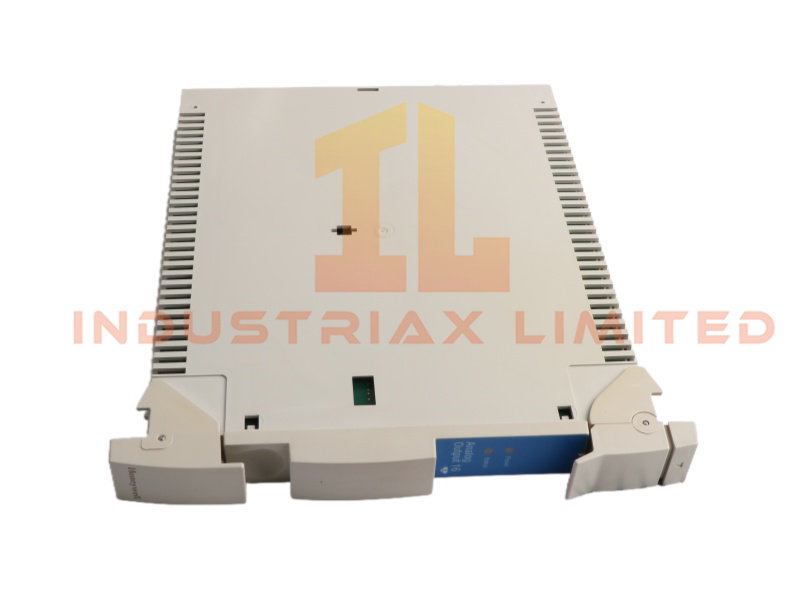

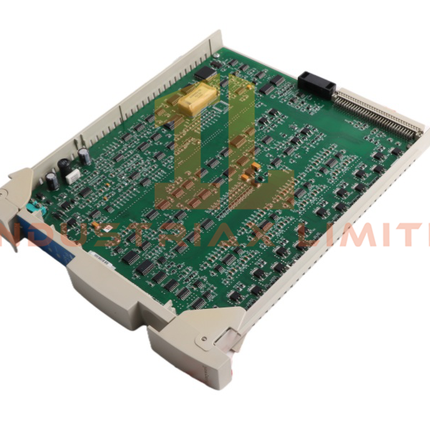

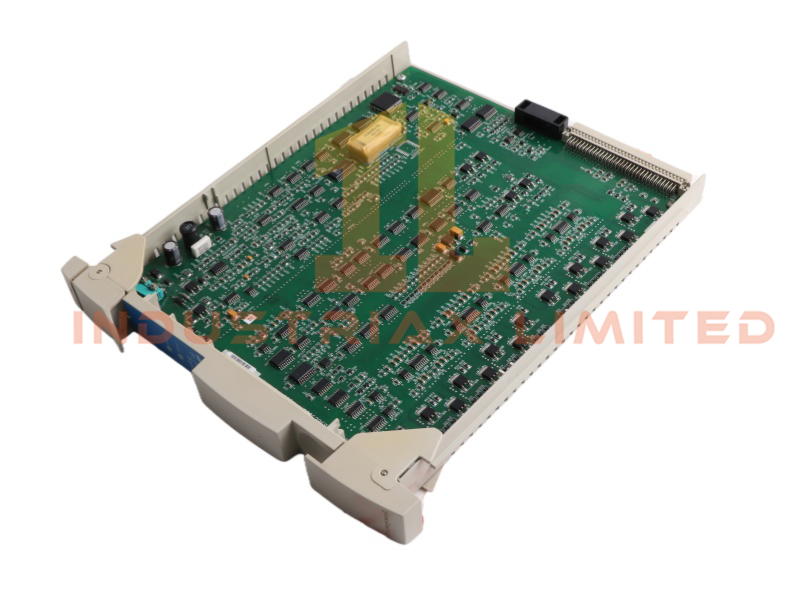

The MC-PAOY22/ 80363969-176 Honeywell Analog Output Module is a precision-engineered 16-channel output card designed for distributed control systems (DCS) and advanced automation platforms. Delivering high accuracy, low noise, and configurable output ranges, it ensures reliable analog signal transmission for critical process control tasks.
Technical Specifications
| Parameter |
Specification |
| Model Number |
MC-PAOY22/ 80363969-176 |
| Product Type |
Analog Output Module |
| Brand |
Honeywell |
| Condition |
New |
| Product Range |
Honeywell PLC / DCS |
| System Compatibility |
DCS |
| Output Channels |
16 |
| Output Range |
0–10 VDC or 4–20 mA |
| Accuracy |
±0.05% |
| Readback Accuracy |
±4% |
| Output Ripple |
≤100 mV peak-to-peak |
| Output Noise |
≤10 μVrms |
| Max Output Current |
20 mA per channel |
| Power Consumption |
≤10 W |
| Linearity |
±0.05% |
| Dimensions |
9.5 × 12.7 × 2.5 cm |
| Weight |
0.58 kg |
| Origin |
USA |
| HS Code |
8537101190 |
| MOQ |
1 |
| Availability |
In Stock |
Key Features
-
16-channel analog output for high-density signal control
-
Configurable voltage and current ranges (0–10 VDC / 4–20 mA)
-
Exceptional accuracy with minimal noise and ripple
-
Compact design with robust performance for industrial environments
-
Field-configurable settings for flexible deployment
-
Energy-efficient operation with ≤10 W consumption
Application Scenarios
-
Process industries requiring precise analog signal control
-
Manufacturing automation systems with high-density output needs
-
Energy and utility facilities requiring stable analog transmission
-
Chemical and petrochemical plants needing reliable PLC integration
FAQ
Q: What output ranges does the MC-PAOY22/ 80363969-176 support? A: It supports 0–10 VDC and 4–20 mA outputs.
Q: How accurate is the module? A: It delivers ±0.05% accuracy with ±4% readback accuracy.
Q: What is the maximum output current per channel? A: Each channel supports up to 20 mA.
Q: How does it compare to smaller Honeywell analog output modules? A: The MC-PAOY22/ 80363969-176 offers higher channel density (16 outputs) and superior accuracy, while smaller modules provide fewer outputs for simpler applications.
