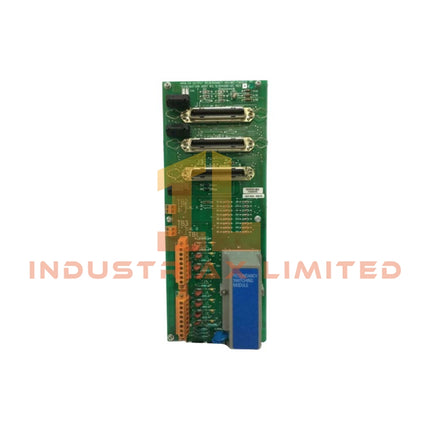

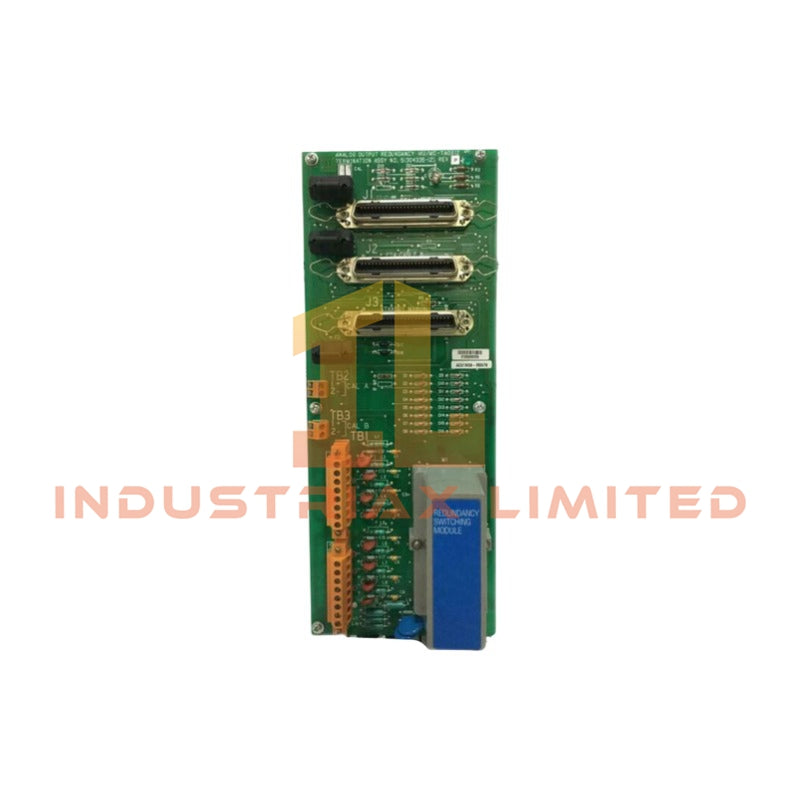

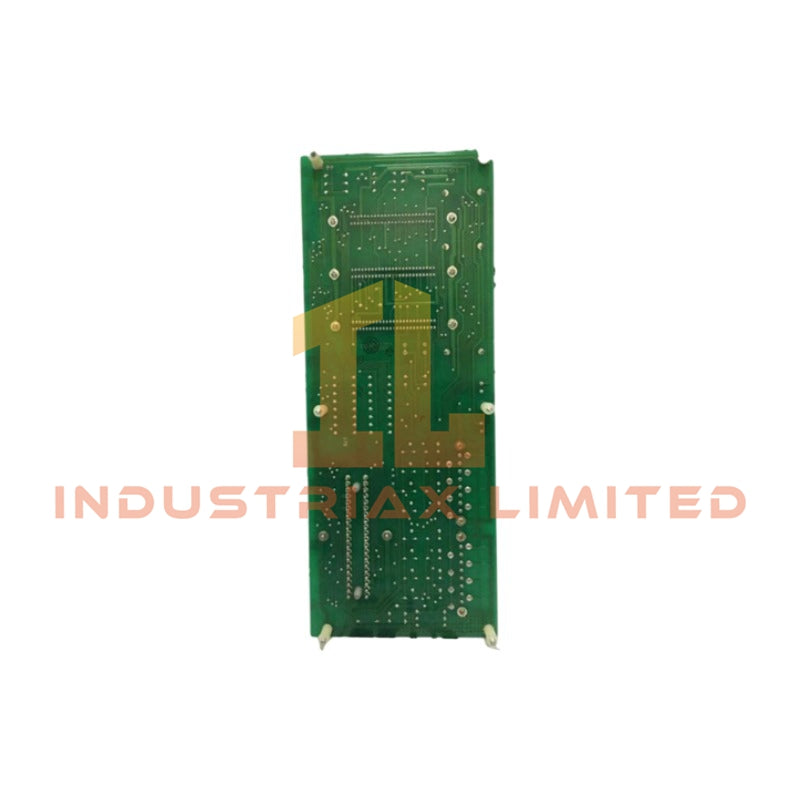

Honeywell MC-MU / MC-TAOX12 Analog Output Redundancy Board

Configured for redundant analog output signal execution in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MC-MU / MC-TAOX12 (51304335-125) (MC-TAOX12 Analog Output Redundancy Board) provides direct physical and electrical control path management for 4-20 mA field loops.

Hardware Specifications

Parameter	Specification
Model	MC-MU / MC-TAOX12 (51304335-125)
Brand	Honeywell
Origin	United States
Product Type	Analog Output Redundancy Board / Field Termination Assembly (FTA)
System Compatibility	Honeywell TDC 3000 / Experion PKS control systems
Signal Type	Analog Output, 4-20 mA and 1-5 VDC signal interfaces
Number of Channels	12 analog output channels
Redundancy Configuration	Dual-path analog output redundancy support
Mounting Type	Honeywell FTA mounting rack installation
Interface Function	Field signal termination and redundant output routing
Conformal Coating	Applied for protection against industrial environmental contamination
Power Consumption	Supplied through associated Honeywell system interface

4-20 mA Loop Interface and Channel Isolation

The MC-TAOX12 manages analog output transmission between Honeywell control processors and field actuators. Moreover, the board supports signal routing for standard process control loops, including current-based 4-20 mA outputs used by control valves and positioning devices.

Honeywell DCS output assemblies typically maintain channel-to-channel isolation practices to reduce electrical interference between independent field circuits. Therefore, installation requires correct field wiring separation and shield termination according to the control system engineering specification.

The module supports redundant output architectures where two control paths monitor and maintain analog output availability. The redundancy mechanism allows the active path to transfer control authority when the primary output path becomes unavailable.

Frequently Asked Questions (FAQ)

Q: Does the MC-TAOX12 support redundant analog output operation?
A: Yes. The MC-TAOX12 is designed as an analog output redundancy board that manages dual-path output configurations within compatible Honeywell control systems.

Q: What field signals can connect to this module?
A: The module interfaces with analog output signals, including standard 4-20 mA and 1-5 VDC process control loops.

Q: Does the module require special field grounding practices?
A: Field installation should follow Honeywell grounding procedures. Shield layers should terminate according to the system cabinet wiring design, and signal cables should avoid parallel routing with high-voltage power conductors.

Field Installation Guidelines

• Install the MC-TAOX12 on the specified Honeywell FTA mounting structure and verify mechanical seating before wiring.
• Confirm terminal assignments with the applicable Honeywell system documentation before connecting field devices.
• Use shielded instrumentation cables for analog output circuits and maintain proper shield grounding practices.
• Separate analog signal wiring from AC power cables, motor circuits, and high-current switching conductors.
• Verify redundant channel wiring before system commissioning to prevent incorrect output path selection.
• Inspect terminal connections for secure mechanical fastening and correct polarity before applying system power.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
