Product Overview

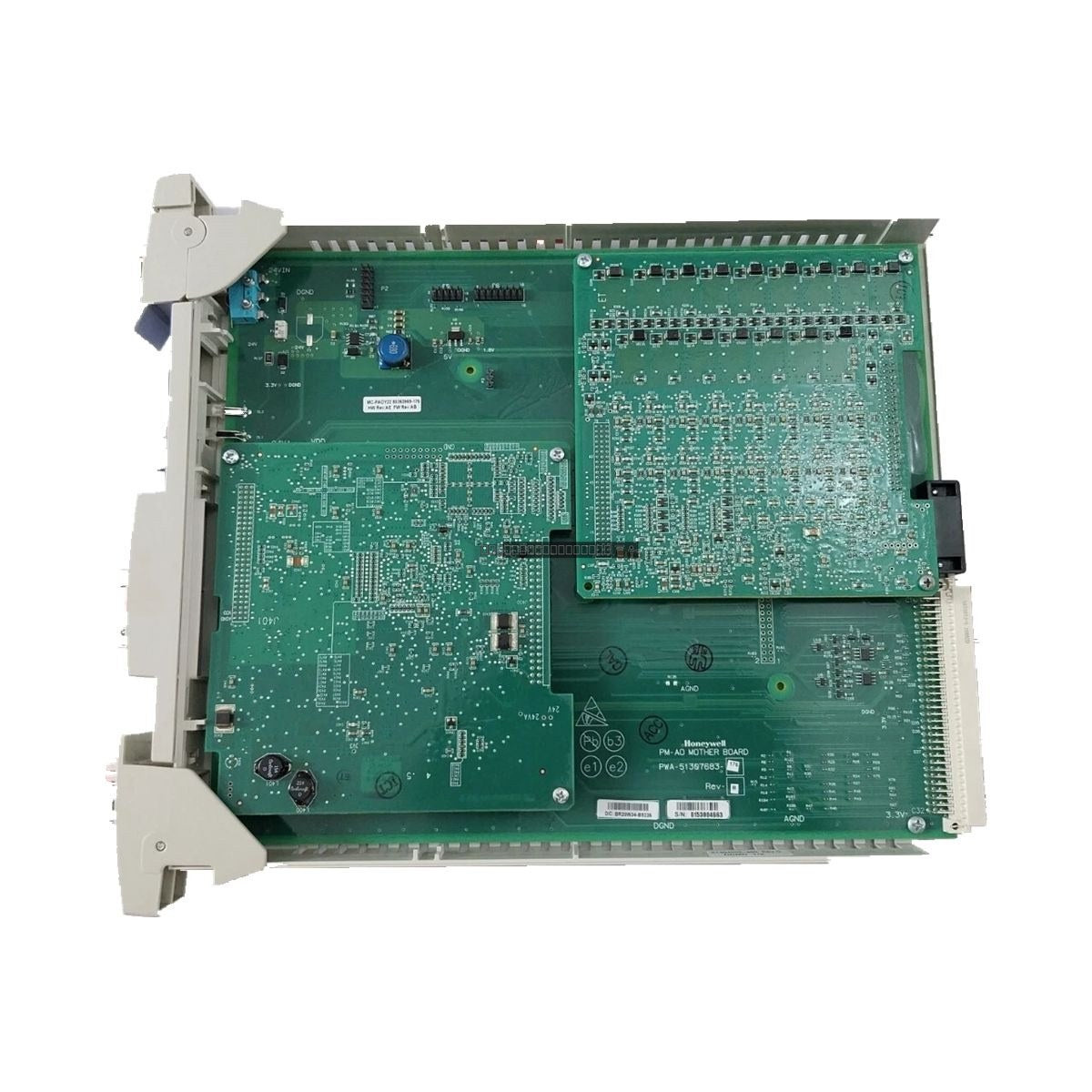

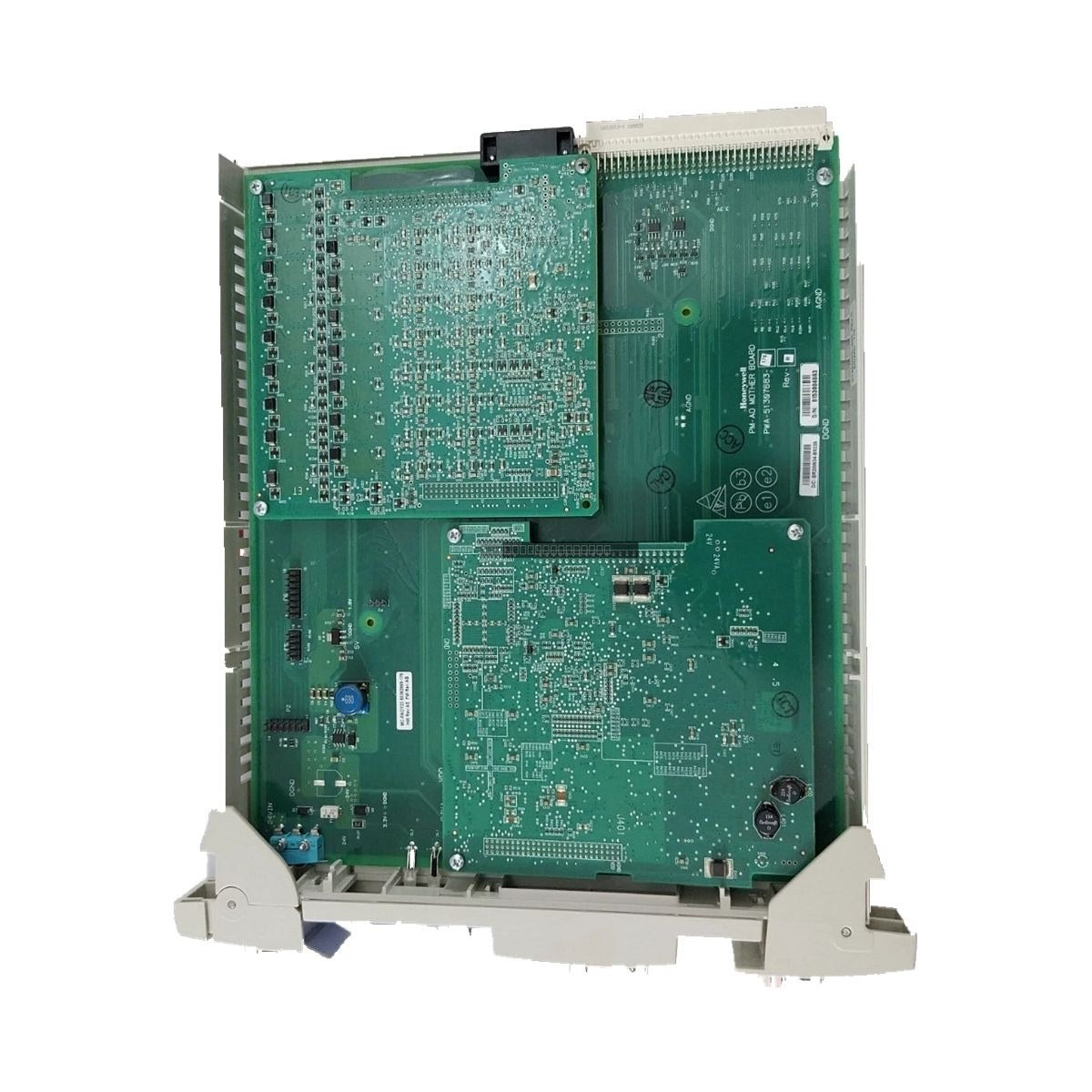

The Honeywell MC-GAIH22 is a specialized high-level analog input module engineered for integration within Honeywell distributed control systems (DCS). This unit facilitates the reliable acquisition of analog voltage and current signals, serving as a critical interface between field instrumentation and the control processor. Designed for demanding industrial environments, the module ensures signal integrity and measurement precision for process variables such as flow, pressure, and temperature. Its robust mechanical construction and efficient terminal design make it a standard component for process automation in power, chemical, and offshore sectors.
Features
- High-level analog input processing for standard process instrumentation signals.
- Compression terminal interface for secure, vibration-resistant field wiring.
- Advanced internal filtering to mitigate electromagnetic interference in high-noise industrial settings.
- Designed for seamless integration into Honeywell MC series rack-based architectures.
- Optimized for continuous operation in harsh temperature and humidity environments.
Applications
The MC-GAIH22 is widely utilized in large-scale industrial control architectures, including:
- Refinery and petrochemical process monitoring.
- Power generation control systems.
- Offshore production platform automation.
- General-purpose analog data acquisition for industrial instrumentation.
Technical Specifications
| Model |
MC-GAIH22 |
| Input Type |
High-level analog voltage/current |
| Channels |
16 Channels |
| Input Voltage |
24 VDC |
| Power Consumption |
6 W (approx.) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Humidity |
5% to 95% (non-condensing) |
| Terminal Type |
Compression |
Installation Guidelines
- Ensure the controller is powered down before inserting or removing the module from the rack.
- Verify that all field wiring is properly secured in the compression terminals to prevent intermittent signal loss due to vibration.
- Maintain proper ventilation in the cabinet to ensure the ambient temperature remains within the specified 0 to 60 deg C range.
- Use shielded cables for analog signal runs to minimize EMI, and ensure the shield is grounded according to plant standards.
- Handle the module using standard ESD-safe practices to prevent damage to internal electronic components.
FAQ
Is the MC-GAIH22 suitable for thermocouple inputs?
This module is designed for high-level analog signals (voltage and current). Please verify your specific instrumentation requirements, as low-level signals like raw thermocouple outputs typically require a dedicated RTD or thermocouple input module.
Does this module support hot-swapping?
The module supports hot replacement; however, this is subject to the specific configuration and safety protocols of your existing Honeywell controller system. Always consult your system documentation before performing maintenance on live racks.
