Description
Overview

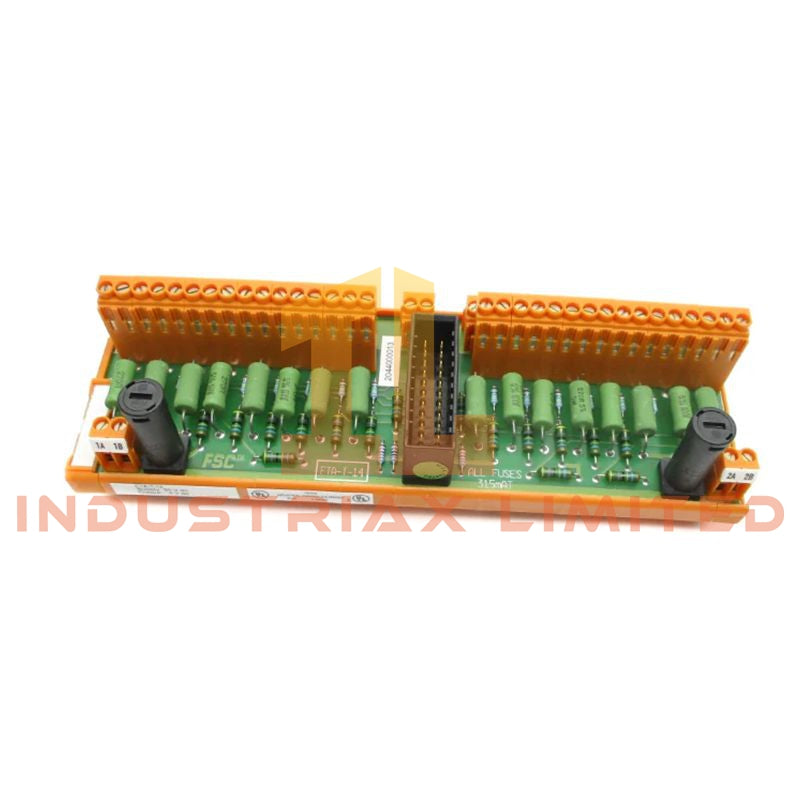

The Honeywell FTA-T-14 is a high-precision 14-channel analog input module designed for industrial control and process automation systems. It converts analog sensor signals, including voltage and current, into digital data for Honeywell control platforms such as Experion PKS and TDC 3000. Built for extreme environments, it delivers reliable, high-speed signal processing with 16-bit resolution.
Key Features
-
High Accuracy: ±0.1% full-scale precision for demanding industrial applications
-
Fast Response: <2 ms response time suitable for real-time process control
-
Multi-Signal Support: Accepts voltage (-10 V to +10 V) and current (0–20 mA, 4–20 mA) inputs
-
Robust Reliability: Redundant design, channel-to-channel isolation, and built-in diagnostics ensure continuous operation
-
Noise Reduction: Integrated signal filtering and linearization minimize interference
-
Wide System Compatibility: Seamlessly integrates with Honeywell Experion PKS, TDC 3000, and other compatible systems
-
Industrial Durability: IP65 rated, operates in temperatures from –40°C to +70°C, resistant to harsh environmental conditions
Technical Specifications
| Specification |
Details |
| Model |
Honeywell FTA-T-14 |
| Type |
14-Channel Analog Input Module |
| Input Channels |
14 |
| Input Signal Types |
Voltage: -10 V to +10 V; Current: 0–20 mA, 4–20 mA |
| Resolution |
16-bit |
| Sampling Rate |
1000 Hz |
| Response Time |
<2 ms |
| Power Supply |
24 VDC |
| Power Consumption |
5 W |
| Isolation |
Channel-to-channel and channel-to-ground, IEC 61508 compliant |
| Protection |
Signal filtering, linearization, configurable alarm thresholds |
| Redundancy |
Supports hardware redundancy for critical processes |
| Diagnostics |
Self-test, real-time monitoring, remote fault detection |
| Operating Temperature |
–40°C to +70°C |
| Storage Temperature |
–40°C to +85°C |
| Ingress Protection |
IP65 |
| Mounting |
DIN rail or panel mount |
| Dimensions |
115 × 65 × 30 mm |
| Weight |
0.5 kg |
Applications
-
Process signal acquisition in chemical, power, oil & gas, water treatment, and manufacturing systems
-
Input conversion for Honeywell Experion PKS and TDC 3000 control platforms
-
Real-time monitoring and control in critical industrial environments
-
Upgrades or replacements for legacy analog input modules
FAQ
Q: What types of analog signals can FTA-T-14 process?
A: It supports voltage (-10 V to +10 V) and current (0–20 mA, 4–20 mA) inputs from various sensors.
Q: Is it suitable for harsh industrial conditions?
A: Yes, it is IP65 rated, supports –40°C to +70°C operation, and includes robust filtering and diagnostics.
Q: Can it be mounted on a DIN rail?
A: Yes, the module supports DIN rail and panel mounting.
Q: Does it support redundancy for critical applications?
A: Yes, hardware redundancy and built-in diagnostics ensure continuous operation in critical processes.
