Description

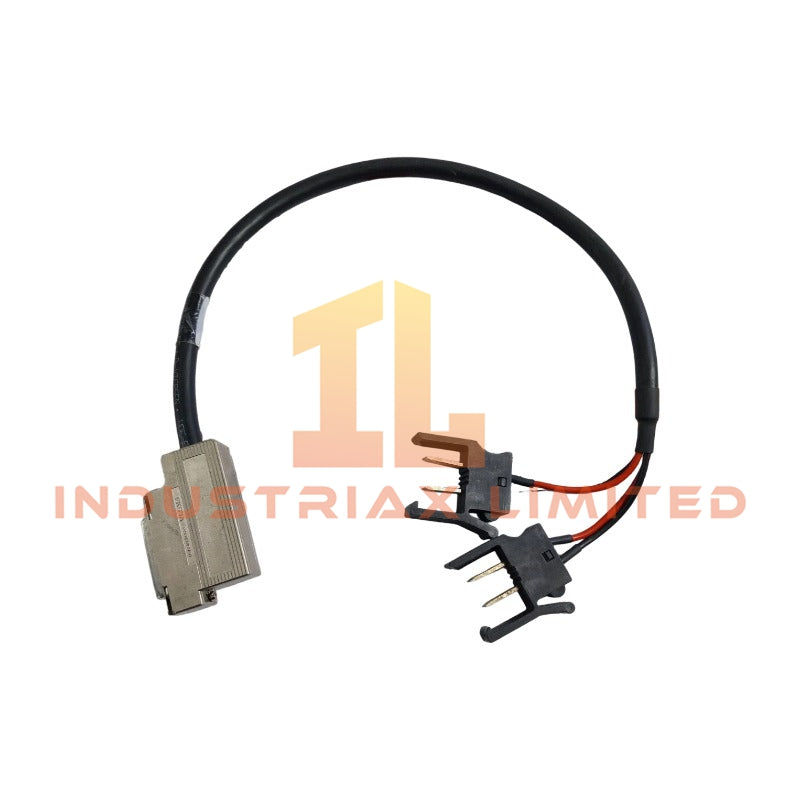

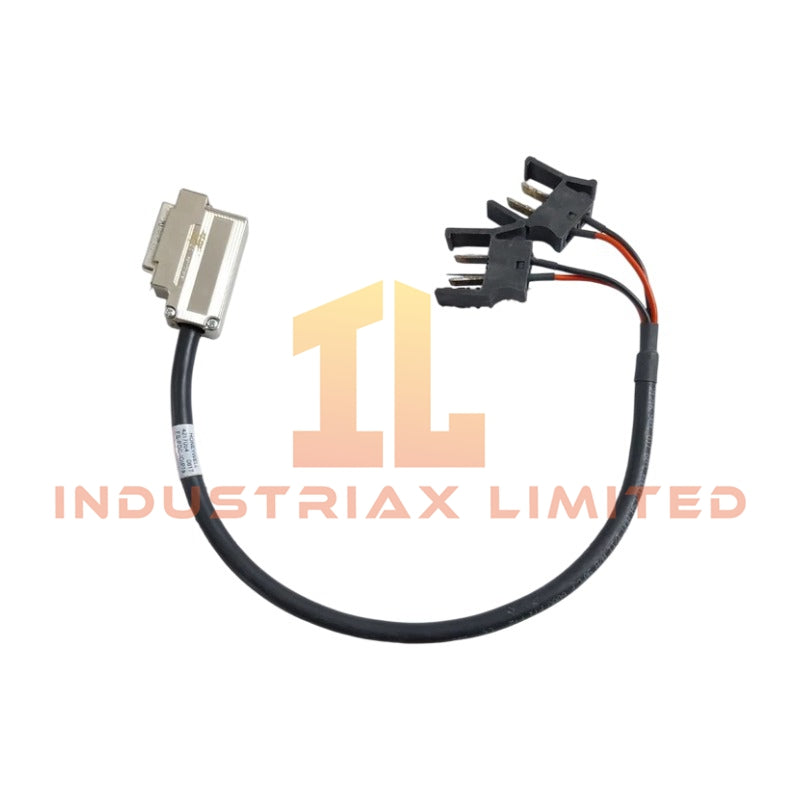

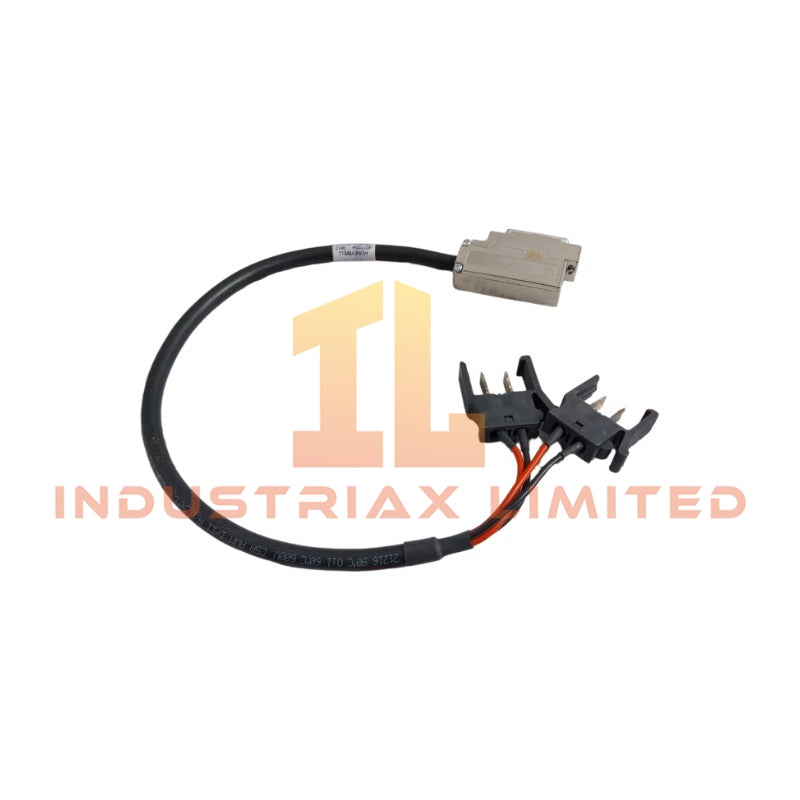

Honeywell FS-PDC-IOIP1A Power Distribution Cable

The Honeywell FS-PDC-IOIP1A, also cataloged as the FSPDCIOIP1A Power Distribution Cable, provides direct electrical connection for power distribution routing within Honeywell safety system I/O hardware platforms.

Hardware Specifications

Parameter	Specification
Model	FS-PDC-IOIP1A
Brand	Honeywell
Product Type	Power Distribution Cable
Origin	USA
Weight	0.12 kg
Dimensions	17.4 x 8.6 x 1.8 cm
Power Consumption	Passive cable assembly, no power consumption
Tariff Code	8537101190
Shipment Location	Xiamen, China

Process Control Power Distribution Interface

The FS-PDC-IOIP1A is a passive electrical interconnection component designed for power distribution within Honeywell I/O system assemblies. It transfers supply connections between designated hardware points without active signal processing or firmware functions.

Additionally, the cable assembly maintains the physical wiring path required for system power routing. Proper installation supports stable electrical continuity between connected I/O infrastructure components.

For Honeywell process control installations, this cable operates within a hardware environment where field devices and control modules may use standardized DCS power distribution methods. However, the FS-PDC-IOIP1A itself does not provide 4-20 mA HART loop processing, FOUNDATION Fieldbus communication, or channel isolation functions.

Frequently Asked Questions

Q: Does the FS-PDC-IOIP1A perform signal conversion or communication functions?
A: No. The FS-PDC-IOIP1A is a passive power distribution cable and does not process signals, execute logic, or provide communication interfaces.

Q: Can the FS-PDC-IOIP1A be installed as an active electronic module?
A: No. The component is a cable assembly intended for physical power routing between compatible Honeywell hardware interfaces.

Q: What installation factors should be considered for this cable assembly?
A: Installation should follow the connected system hardware requirements, including correct connector alignment, cable routing clearance, and proper separation from high-noise electrical sources.

Field Installation Guidelines

• Verify the cable part number before installation to confirm compatibility with the target Honeywell hardware assembly.
• Install the cable using the designated connectors and avoid excessive mechanical stress on the cable body.
• Route the cable away from high-voltage switching paths and sources of electromagnetic interference.
• Maintain proper cable bend radius according to standard industrial wiring practices.
• Confirm connector engagement before system power application.
• Inspect cable insulation and connector contacts during maintenance activities.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
