Description

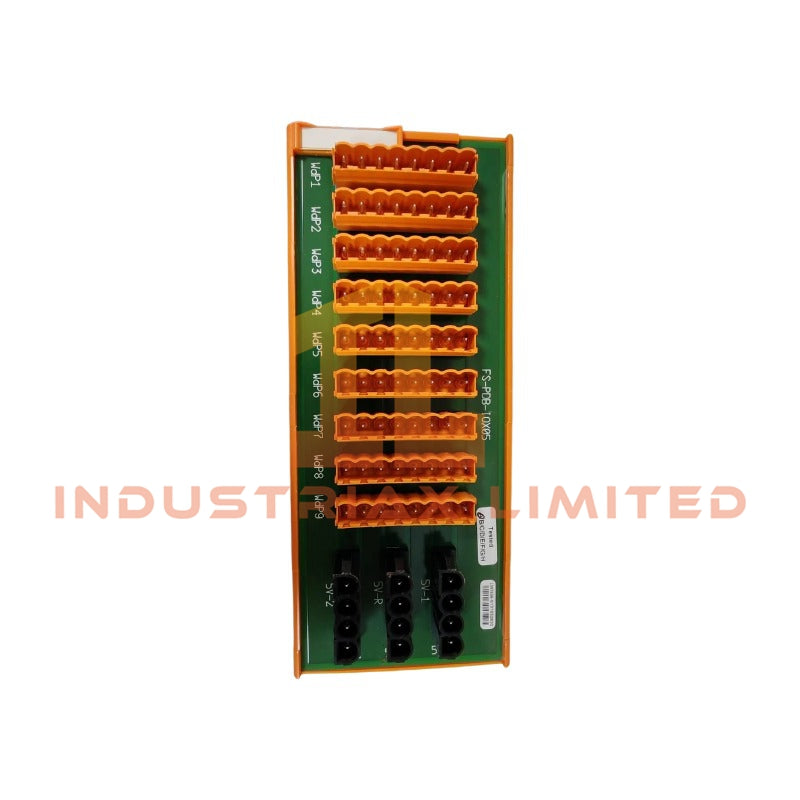

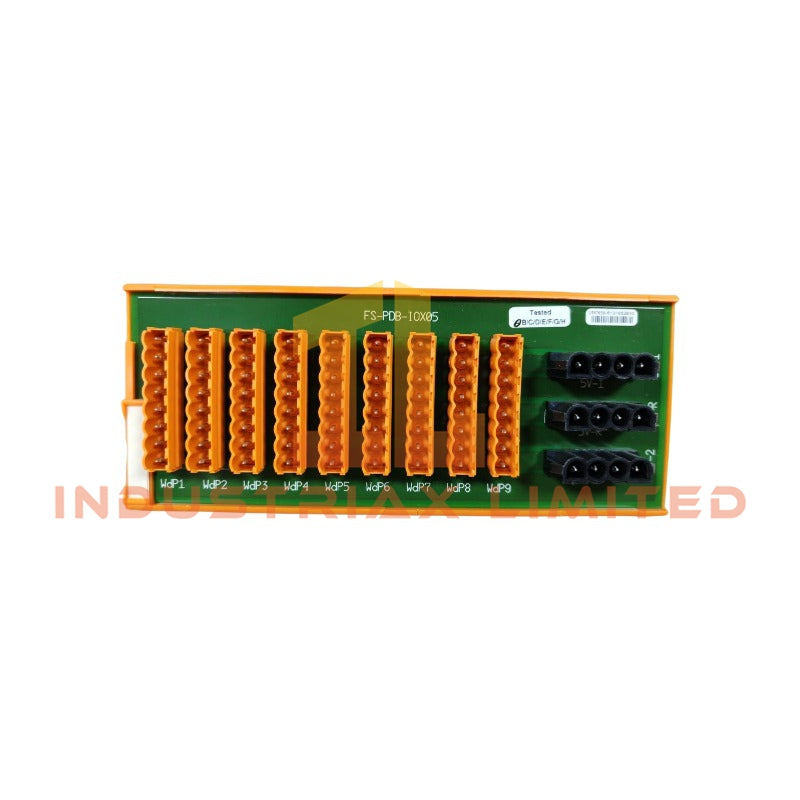

Honeywell FS-PDB-IOX05 Power Distribution Board

The Honeywell FS-PDB-IOX05, also cataloged as the FS-PDB-IOX05 Power Distribution Board, operates as a dedicated hardware component for controller chassis power distribution within Honeywell industrial control system platforms. It distributes 5 VDC chassis rail power through a 4-pin action-pin header connection and supports DIN-rail mounting configurations.

Hardware Specifications

Parameter	Specification
Model	FS-PDB-IOX05
Brand	Honeywell
Product Type	Power Distribution Board
Origin	USA
Weight	0.22 kg
Dimensions	17.1 x 7.1 x 5.8 cm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Supplied from controller chassis 5 VDC rails
Input Voltage	Controller chassis 5 VDC rails
Connector Type	4-pin action-pin header
Mounting Method	DIN-rail TS32 / TS35 x 7.5 mm
Humidity	Up to 95% RH, non-condensing
Tariff Code	8537101190
Place of Shipment	Xiamen, China

DCS Power Distribution and Channel Isolation Features

The Honeywell FS-PDB-IOX05 provides physical power routing between controller chassis supply rails and connected field hardware interfaces. It uses a dedicated 4-pin action-pin header for electrical connection and maintains compatibility with Honeywell controller chassis power distribution arrangements.

In addition, the board supports DIN-rail installation for compact control cabinet integration. The design follows industrial process control installation practices, where clear wiring separation and proper grounding methods reduce electrical interference risks.

The module operates within Honeywell process control environments that commonly use channel-to-channel isolation concepts for I/O signal integrity. However, the FS-PDB-IOX05 functions as a power distribution component rather than an analog or digital signal acquisition module.

Frequently Asked Questions

Q: What voltage source does the FS-PDB-IOX05 use?
A: The FS-PDB-IOX05 receives power from controller chassis 5 VDC supply rails.

Q: What mounting method does the FS-PDB-IOX05 support?
A: The module supports DIN-rail mounting with TS32 and TS35 x 7.5 mm rail configurations.

Q: What environmental temperature range applies to the FS-PDB-IOX05?
A: The operating temperature range is -40 deg C to +70 deg C.

Field Installation Guidelines

• Install the FS-PDB-IOX05 on a compatible DIN rail inside the control cabinet.
• Verify that the controller chassis provides the required 5 VDC rail supply before connection.
• Inspect the 4-pin action-pin header before installation to confirm proper mechanical alignment.
• Route power wiring separately from high-current switching circuits and high-noise equipment.
• Connect cabinet grounding according to the applicable industrial electrical installation standard.
• Maintain sufficient cabinet clearance to support airflow and thermal management.
• Confirm connector seating after installation before applying system power.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
