Description

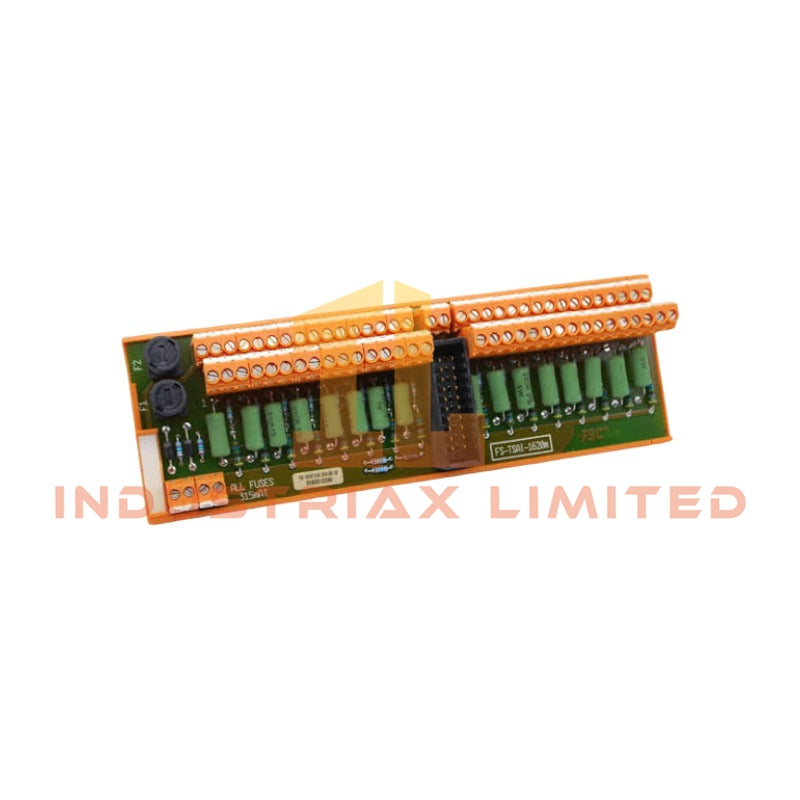

Honeywell FC-SAI-1620M Safe High-Density Analog Input Module
The Honeywell FC-SAI-1620M, also cataloged as the FC-SAI-1620M Safe High-Density Analog Input Module, operates as a dedicated hardware component for analog signal acquisition and voltage conversion within Honeywell Safety Manager and Fail Safe Controller (FSC) systems.
16 analog input channels + 1 external readback input
Input Signal Range
0 to 4.1 V DC
Absolute Maximum Input Voltage
+/- 36 V DC
Input Resistance
> 1 Mohm
Maximum Load Capacitance
100 nF
A/D Converter Resolution
12-bit
A/D Converter Inaccuracy
+/- 1 LSB
Total Module Inaccuracy
< 0.25%
Channel Isolation
Galvanic and optical isolation between field signals and internal bus
Cross-Talk Suppression
> 60 dB
Certifications
CE, TUV, UL, CSA, FM Class I Div 2
Process Instrument Signal Interface and Safety Diagnostics
The FC-SAI-1620M acquires analog field signals through compatible Field Terminal Assemblies (FTAs), including TSAI-1620m and TSHART-1620m configurations. These assemblies convert standard process signals into the module input range of 0 to 4.1 V DC.
Additionally, the module supports BSAI-1620mE conversion modules for signal adaptation. The Safety Manager controller performs continuous diagnostics, including absolute accuracy verification, input conversion checks, channel cross-talk monitoring, input filtering validation, and internal supply voltage supervision.
For Honeywell process safety platforms, the module supports signal conditioning requirements associated with 4-20 mA HART loop protocol interfaces and maintains channel-to-channel isolation between individual measurement paths. Therefore, the module separates field signal disturbances from internal safety processing circuits.
Frequently Asked Questions
Q: How many analog input signals can the FC-SAI-1620M process simultaneously? A: The module processes 16 analog input channels and provides one additional external voltage readback input channel.
Q: Does the FC-SAI-1620M directly accept standard 4-20 mA field signals? A: The module receives a 0 to 4.1 V DC internal input range. Compatible FTAs or conversion modules perform the required field signal conversion before input processing.
Q: What diagnostic functions are performed by the module? A: The module performs automatic checks for conversion accuracy, full-range measurement behavior, input filtering, channel isolation performance, cross-talk conditions, and internal power supply status.
Field Installation Guidelines
Install the FC-SAI-1620M only within the specified Honeywell Safety Manager or FSC chassis configuration.
Verify that the module seating connection matches the approved backplane slot arrangement before applying system power.
Use shielded field wiring for analog signal connections and terminate cable shields according to the plant grounding standard.
Separate analog input wiring from high-voltage power cables and switching circuits to reduce electrical interference.
Confirm FTA compatibility before connecting field devices to avoid signal scaling errors.
Check field loop polarity and voltage levels before commissioning the input channels.
Perform controller diagnostics after installation to verify channel status, input conversion, and communication integrity.
