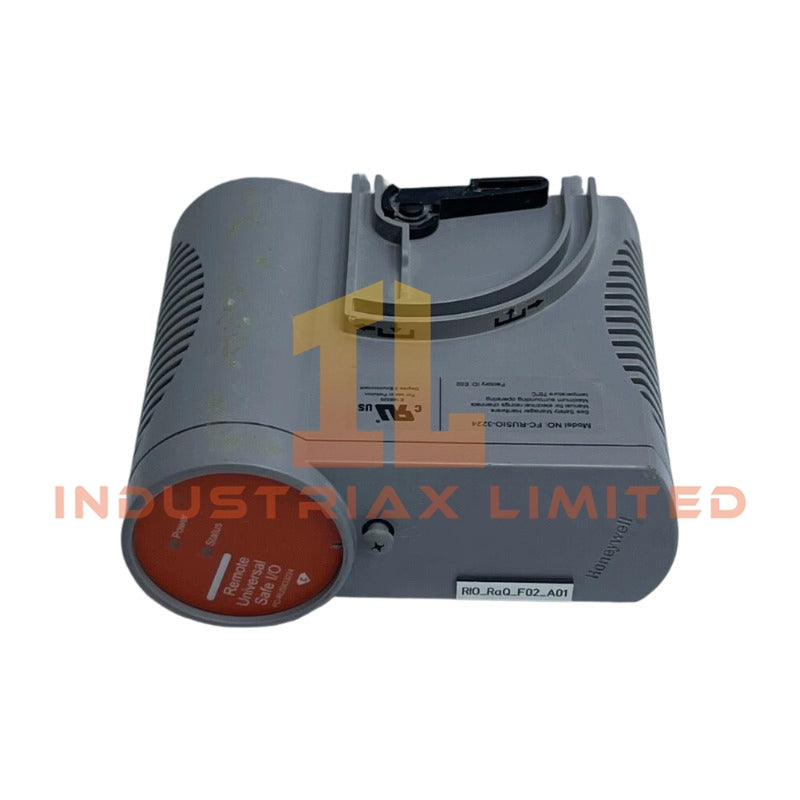

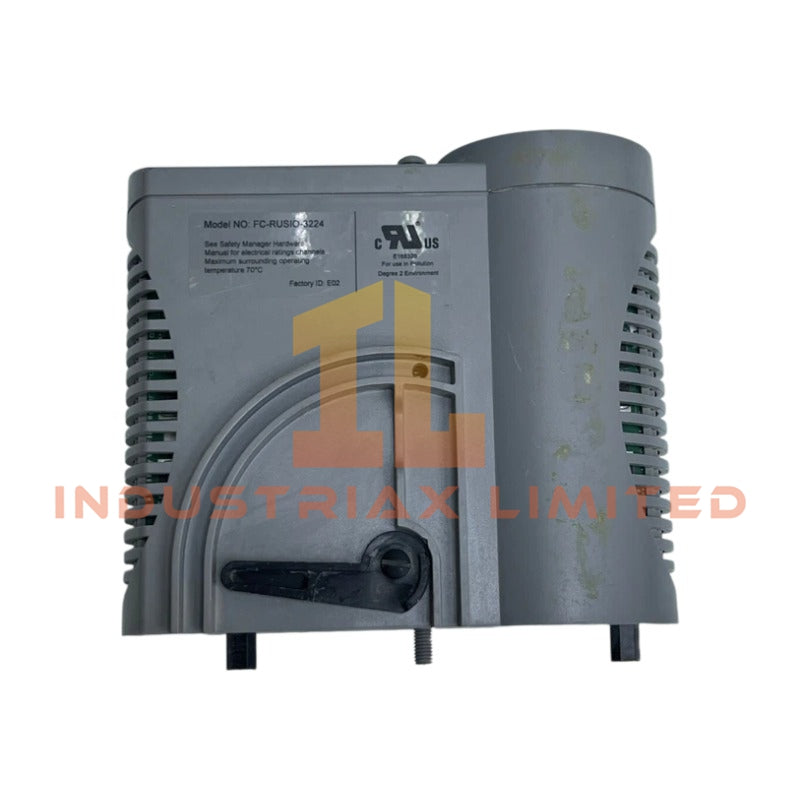

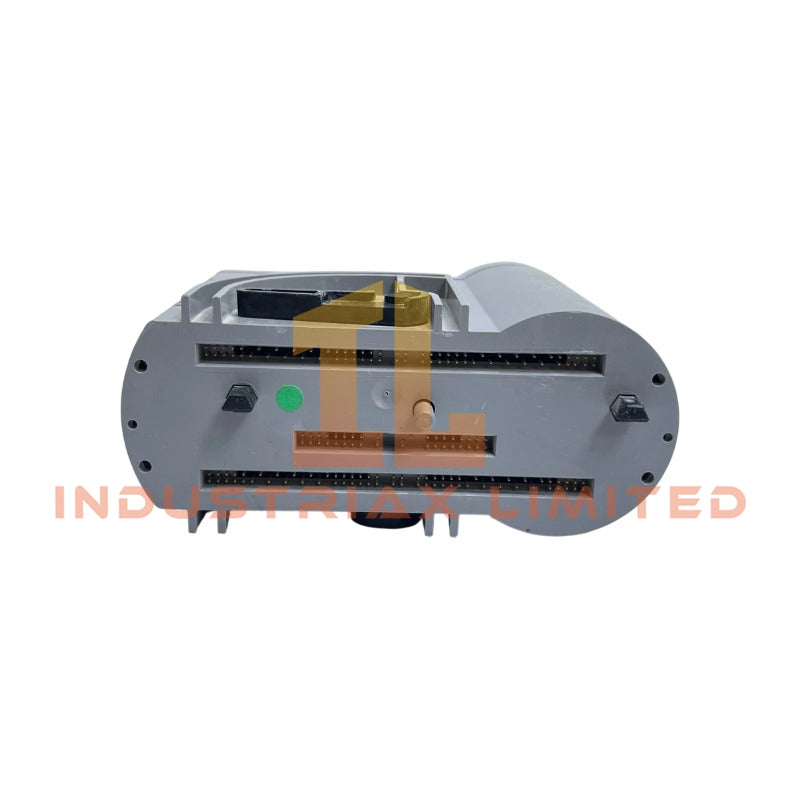

Honeywell FC-RUSIO-334 Redundant Universal Safety I/O Module Configured for universal safety signal processing in Honeywell Safety Manager platforms, the Honeywell...
Read more
Configured for universal safety signal processing in Honeywell Safety Manager platforms, the Honeywell FC-RUSIO-334 (FC-RUSIO-334 Redundant Universal Safety I/O Module) provides direct physical and electrical execution for configurable field input and output channels. The module handles analog and digital safety loop interfaces with redundant operation capability.
Hardware Specifications
Parameter
Specification
Model
FC-RUSIO-334
Brand
Honeywell
Operating Temp
-5 deg C to +70 deg C
Power Consumption
Approximately 15 W to 25 W depending on channel configuration and load
System Compatibility
Honeywell Safety Manager / Experion PKS Safety System
Module Type
Redundant Universal Safety I/O Module
Channel Count
32 configurable safety I/O channels
Analog Input
4-20 mA signal interface
Analog Output
4-20 mA signal interface
Digital Input
24 VDC signal interface
Digital Output
24 VDC signal interface
Operating Voltage
24 VDC nominal
Safety Integrity Level
SIL 3 according to IEC 61508
HART Communication
Supported on configured analog channels
Redundancy Function
Supported with paired module configuration
Storage Temperature
-40 deg C to +85 deg C
Relative Humidity
5% to 95% RH, non-condensing
4-20 mA HART Loop and Channel Isolation
The FC-RUSIO-334 supports process instrument interfaces through 4-20 mA analog channels with HART pass-through capability. Therefore, smart field devices can transmit measurement signals while allowing diagnostic communication through the same wiring path.
The module applies channel separation techniques for safety signal handling. In addition, each configurable channel can operate as analog input, analog output, digital input, or digital output according to the Safety Manager configuration.
The safety I/O design supports SIL 3 applications by monitoring field circuit conditions, including open circuit and short circuit detection. This allows the controller to identify abnormal loop conditions during operation.
Frequently Asked Questions
Q: Does the FC-RUSIO-334 support mixed I/O configuration on one module? A: Yes. Each of the 32 channels can be configured independently as analog input, analog output, digital input, or digital output according to the system configuration.
Q: Does the module support HART communication with field instruments? A: Yes. HART pass-through communication is available on channels configured for 4-20 mA analog input or analog output operation.
Q: What installation considerations apply for redundant module operation? A: Redundant configurations require correct rack installation, approved wiring practices, and proper Safety Manager configuration to maintain intended fault handling behavior.
Field Installation Guidelines
Install the FC-RUSIO-334 in the designated Honeywell Safety Manager hardware location according to system installation documentation.
Use shielded field wiring for analog signal connections where required by the site electrical standard. Connect cable shields according to the grounding method defined for the control cabinet.
Separate low-level analog signal cables from high-voltage power cables and switching circuits to reduce electrical interference. Verify field loop polarity before applying 24 VDC power.
Confirm that channel configuration matches the connected field devices before commissioning. Check digital input states, digital output response, and analog loop values through the Safety Manager engineering tools.
