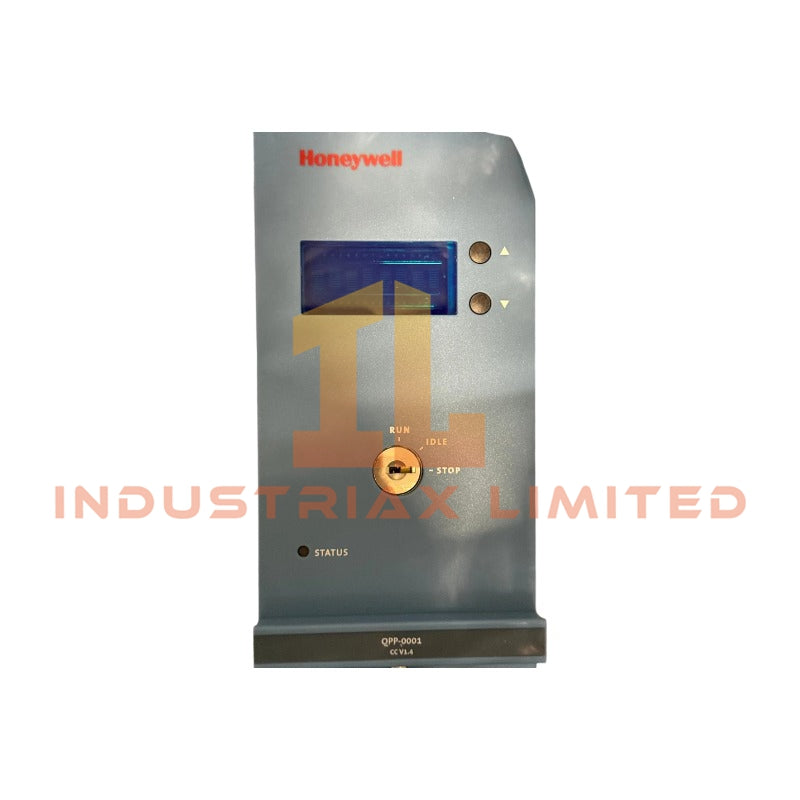

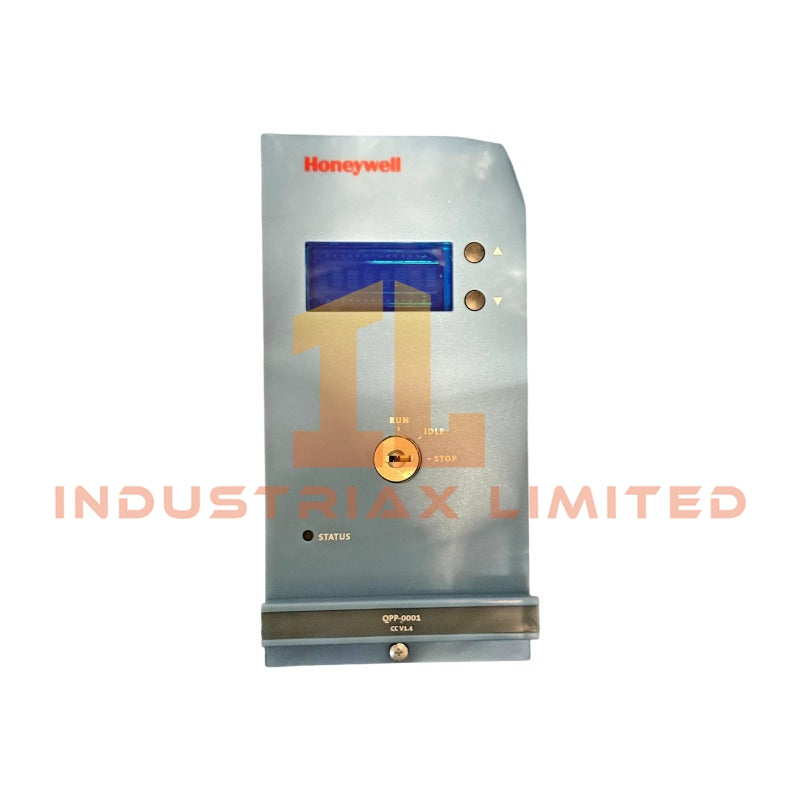

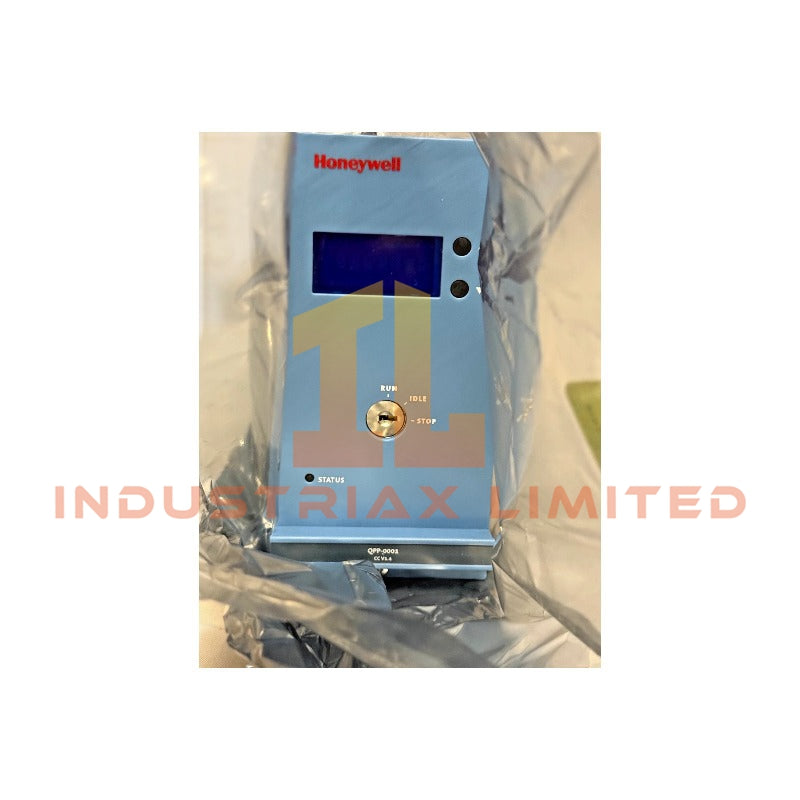

Honeywell FC-QPP-0001 Quad Processor Pack

The Honeywell FC-QPP-0001, also cataloged as the FC-QPP-0001 Quad Processor Pack, operates as a dedicated hardware component for synchronous processor execution and redundant data processing within Honeywell safety control system platforms.

Hardware Specifications

Parameter	Specification
Model	FC-QPP-0001
Brand	Honeywell
Product Type	Quad Processor Pack
Origin	USA
Weight	1.25 kg
Dimensions	2.8 x 22.8 x 17.5 cm (estimated shipping size)
Operating Temp	-5 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	10% to 95%, non-condensing
Power Consumption	24 VDC supply: max. 25 mA; 5 VDC supply: max. 1.2 A
24 V Supply Voltage	24 VDC -15% to +30%
5 V Supply Voltage	5 VDC +/- 5%
Processor Configuration	Two processors running synchronously
System Memory	Flash memory for system and application program storage
RAM Protection	Battery-backed RAM
Redundant Communication	Redundant communication link with dedicated RAM data storage
Data Monitoring	Processor and memory data comparators
Communication Interface	Data exchange with communication modules
Surge Protection	+/-1 kV on I/O lines

Safety Control Processor Synchronization and Data Integrity

The FC-QPP-0001 uses synchronous processor operation to execute identical processing tasks across paired processors. Moreover, internal data comparators monitor processor outputs and memory conditions to detect execution differences.

The module integrates flash memory for storing system software and application programs. In addition, battery-backed RAM maintains operational data during power interruptions. The redundant communication link provides data exchange capability with associated communication modules while dedicated RAM stores communication redundancy information.

Frequently Asked Questions

Q: Does the FC-QPP-0001 support redundant processor operation?
A: Yes. The module operates with two processors running synchronously and uses data comparators to monitor processor and memory consistency.

Q: What memory functions are included in the FC-QPP-0001 hardware design?
A: The module includes flash memory for system and application programs and battery-backed RAM for retained operating data.

Q: What power requirements must be considered during installation?
A: The module requires a 24 VDC supply with a maximum current of 25 mA and a 5 VDC supply with a maximum current of 1.2 A.

Field Installation Guidelines

Install the FC-QPP-0001 according to the designated Honeywell control rack and system hardware configuration requirements.

Verify that the 24 VDC and 5 VDC power connections match the specified voltage ranges before energizing the module. Use properly routed power and communication wiring to reduce electrical interference.

Maintain separation between signal cables and high-current power conductors. Connect cable shields according to the system grounding design to minimize noise coupling. Before operation, verify processor synchronization status, communication link integrity, and module diagnostic indications through the applicable Honeywell engineering tools.
