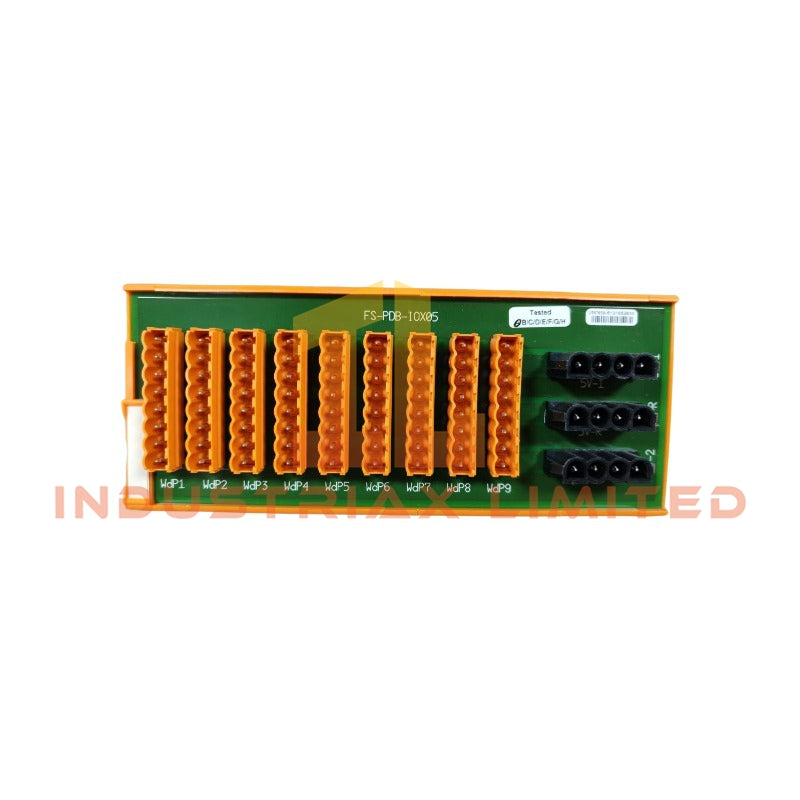

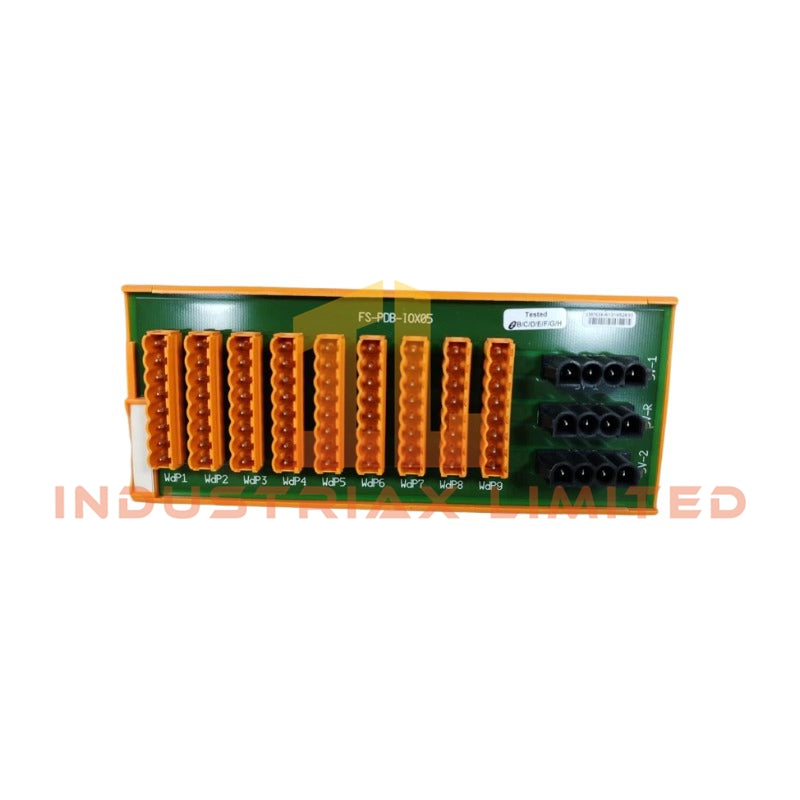

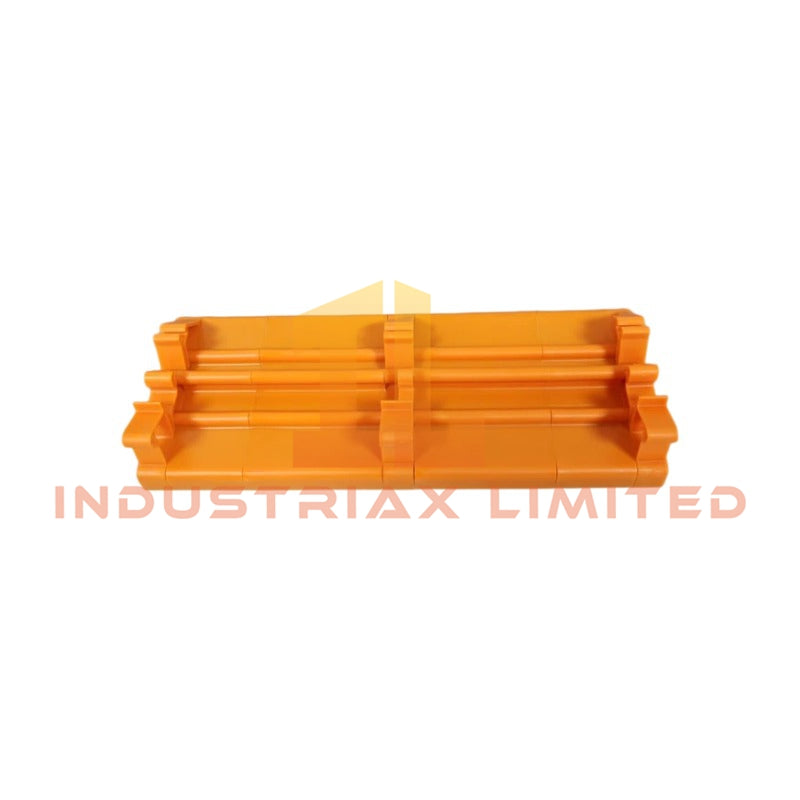

Honeywell FC-PDB-IOX05 Power Distribution Board

Configured for 5 VDC power and watchdog signal distribution in Honeywell Safety Manager / Fail Safe Controller (FSC) extension I/O cabinets, the Honeywell FC-PDB-IOX05 (FC-PDB-IOX05 Power Distribution Board) provides direct physical and electrical execution between controller cabinets and expansion chassis.

Hardware Specifications

Parameter	Specification
Model	FC-PDB-IOX05 / FS-PDB-IOX05
Brand	Honeywell
Origin	USA
Weight	Not specified
Dimensions	Approx. 170 mm x 70 mm x 46 mm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	5 VDC distribution board, value not specified
Product Type	Power Distribution Board
System Compatibility	Honeywell Safety Manager / FSC / Experion PKS
Operating Voltage	5 VDC
Main Function	Extension I/O cabinet power and watchdog signal distribution
Connector Configuration	Three 4-pole connectors: 5V-1, 5V-2, 5V-R
Signal Interface	0V ground, 5 VDC supply, CP1 and CP2 watchdog signals
Mounting Type	DIN rail TS32 / TS35 or chassis rack mounting
Approvals	CE, UL, TÜV, CSA

Honeywell Process Control Signal Distribution Features

The FC-PDB-IOX05 supports Honeywell safety control cabinet expansion by distributing regulated 5 VDC power and processor watchdog signals between the main cabinet and extension I/O chassis. In addition, the board provides separate connection paths for Control Processor 1 (CP1) and Control Processor 2 (CP2).

The module supports redundant cabinet architectures through the 5V-R connector. Therefore, the system can maintain independent power and watchdog signal routing for fault monitoring and controller supervision.

Unlike analog process modules, this board does not process 4-20 mA HART loops or FOUNDATION Fieldbus communication. Instead, it performs cabinet-level power routing and safety controller interconnection functions within the FSC hardware architecture.

Frequently Asked Questions

Q: What signals does the FC-PDB-IOX05 distribute?

A: The board distributes 5 VDC operating power, 0V ground references, and watchdog signals associated with CP1 and CP2 controller paths.

Q: Does the FC-PDB-IOX05 provide field I/O signal conversion?

A: No. The module only distributes cabinet power and control supervision signals. Field signal acquisition and output functions are handled by dedicated I/O modules.

Q: Can the FC-PDB-IOX05 operate in redundant controller configurations?

A: Yes. The 5V-1, 5V-2, and 5V-R connector arrangement supports redundant CP1 and CP2 power distribution architectures.

Field Installation Guidelines

Install the FC-PDB-IOX05 inside the designated Honeywell FSC or Safety Manager extension I/O cabinet location.

Connect the 5V-1 and 5V-2 interfaces according to the assigned controller processor power paths. Use the 5V-R connector only when the cabinet configuration requires redundant power routing.

Route power and watchdog cables separately from high-voltage switching conductors to reduce electrical interference. Maintain proper grounding between cabinet assemblies and verify cable shielding termination according to the system installation manual.

Before applying power, inspect connector seating, cable identification, and cabinet grounding continuity. Confirm that the extension chassis receives the expected 5 VDC supply and that watchdog supervision signals operate correctly after system startup.
