Description
Overview

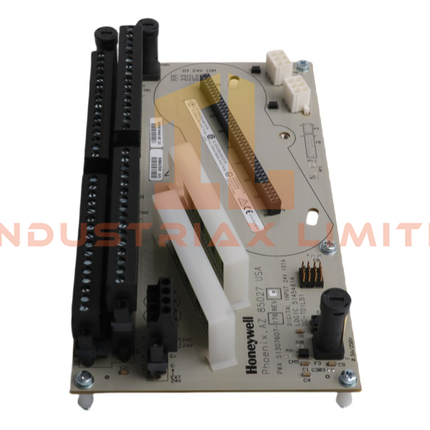

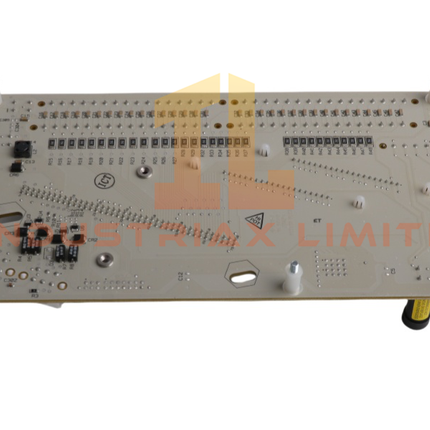

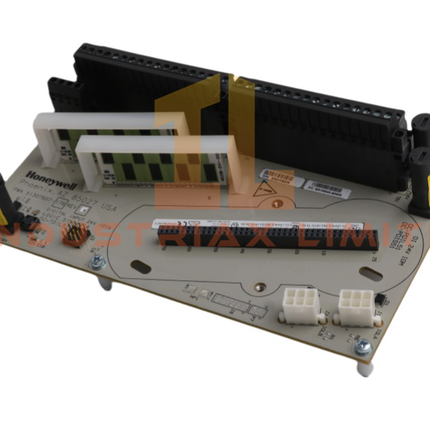

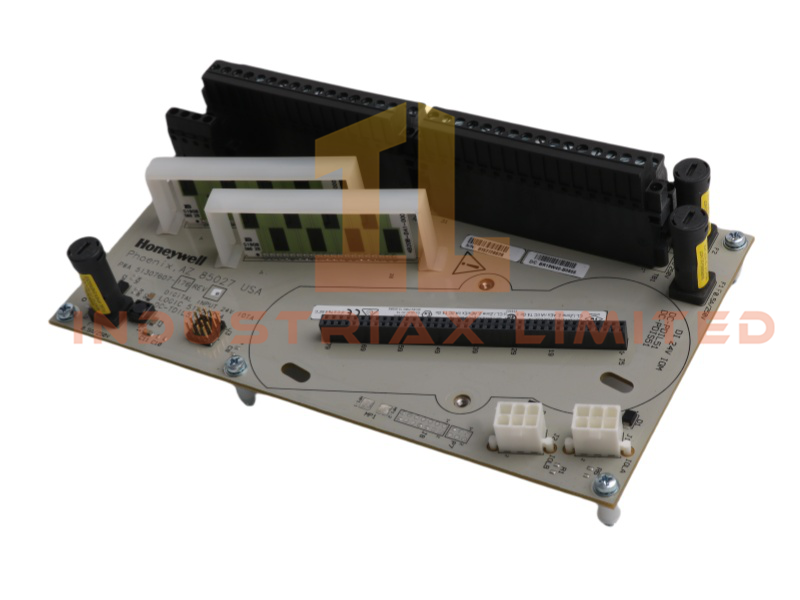

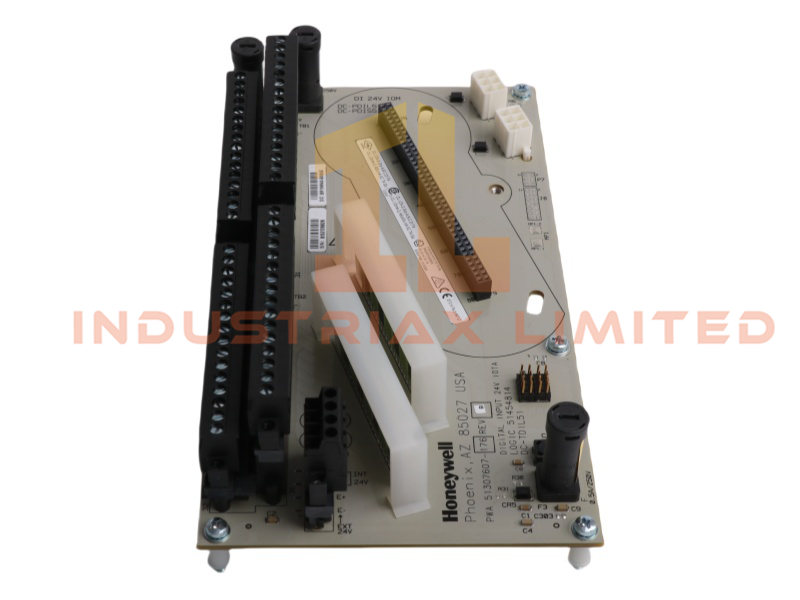

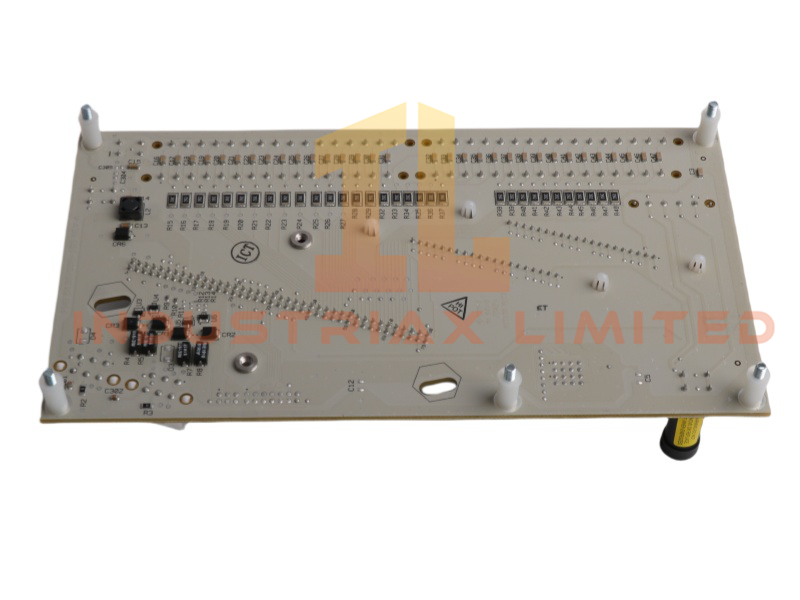

The DC-TDIL61 Digital Input IOTA Redundant Module from Honeywell is a high-density 32-channel input unit designed for FSC and Experion PKS Series C I/O systems. Built for discrete signal monitoring in industrial automation, it combines robust isolation, energy efficiency, and redundancy to ensure reliable operation in safety-critical environments.
Technical Specifications
-
Model: DC-TDIL61
-
Manufacturer: Honeywell
-
Product Type: Redundant Digital Input IOTA Module
-
Condition: Brand New
-
Availability: In Stock
-
Weight: 0.38 kg
-
Dimensions: 29.4 × 12 × 17 cm
-
HS Code: 8537101190
-
Minimum Order Quantity: 1
-
Origin: USA (global distribution from Xiamen, China)
-
System Compatibility: DCS / FSC System
-
Input Channels: 32 digital inputs
-
Operating Voltage: 24 VDC
-
Power Consumption: 1.32 W at 20 mA
-
Rated Current: 55 mA at 24 VDC
-
Isolation: 1500 VAC between DCS and field connections
-
Connector Type: 37-pin DSUB via CC-UGIA01 interface assembly
-
Mounting: DIN-rail compatible
-
Indicators: LED status lights for each channel
-
Features: Hot-swappable design, surge protection, redundancy support
-
Communication Service: Ethernet router
Functional Highlights
-
Provides reliable monitoring of discrete signals with complete isolation for system protection.
-
Compact design with DIN-rail mounting optimizes cabinet space.
-
LED indicators enable quick diagnostics and visual status checks.
-
Hot-swappable capability allows maintenance without system downtime.
-
Surge protection ensures stable operation in harsh industrial environments.
-
Redundant architecture enhances system availability in critical applications.
Application Scenarios
-
Oil & gas facilities requiring robust digital input monitoring.
-
Power generation plants with high reliability demands.
-
Chemical processing environments needing redundant input modules.
-
Large-scale automation projects where cabinet space optimization is essential.
FAQ
Q: How many input channels does the DC-TDIL61 support? A: It supports 32 digital input channels.
Q: What type of connector is used for DCS connections? A: A 37-pin DSUB connector via the CC-UGIA01 interface assembly.
Q: Can the module be replaced without shutting down the system? A: Yes, it features hot-swappable design for uninterrupted operation.
Q: What isolation level does the DC-TDIL61 provide? A: It offers 1500 VAC isolation between DCS and field connections.
