Description
Overview

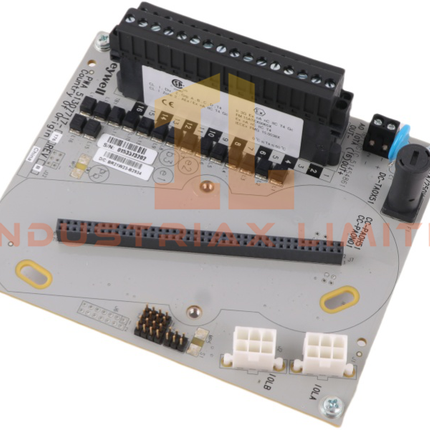

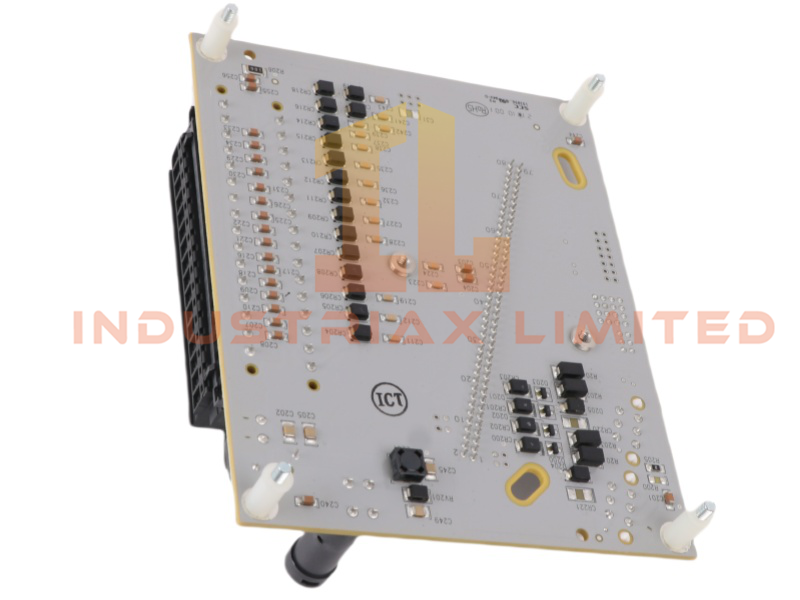

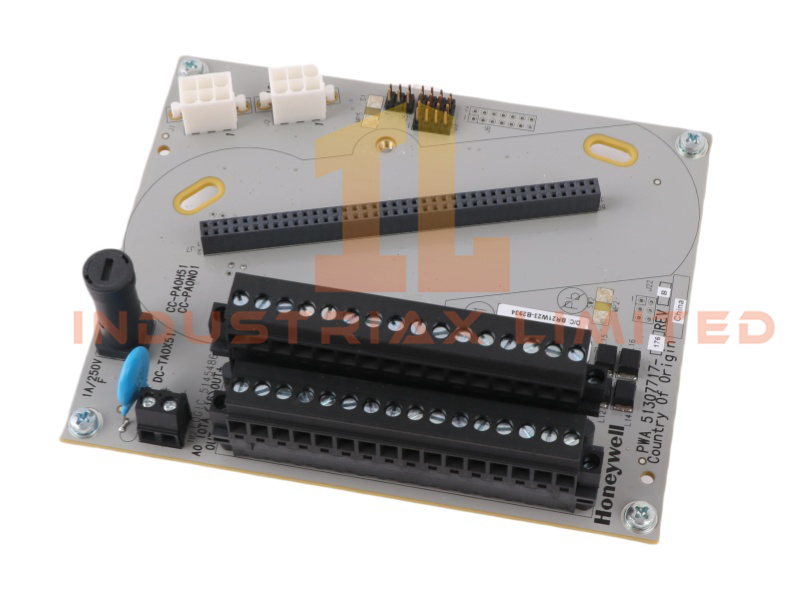

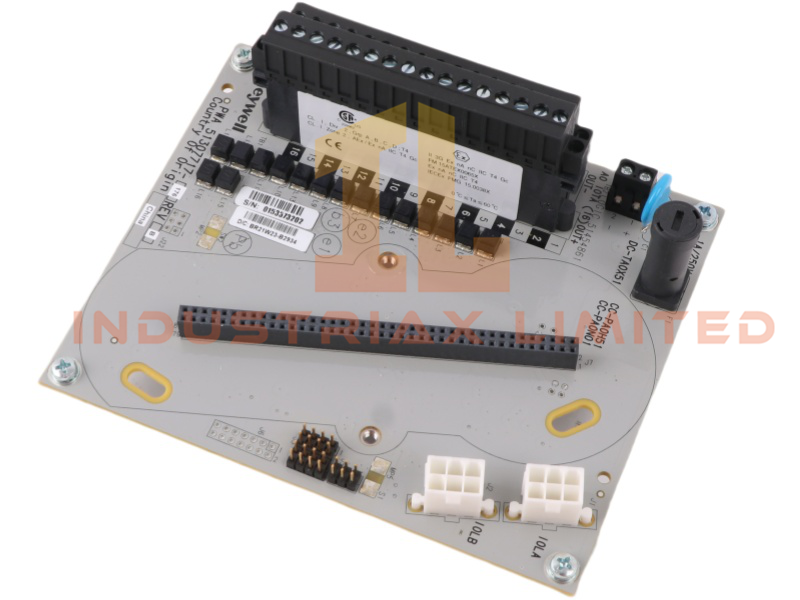

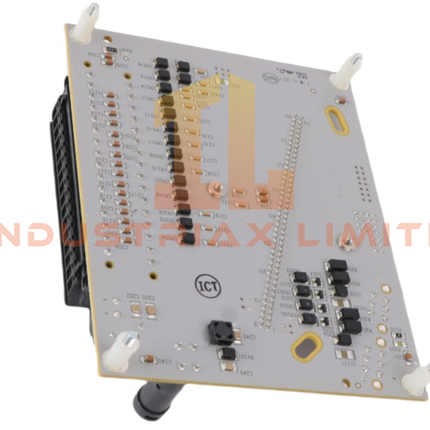

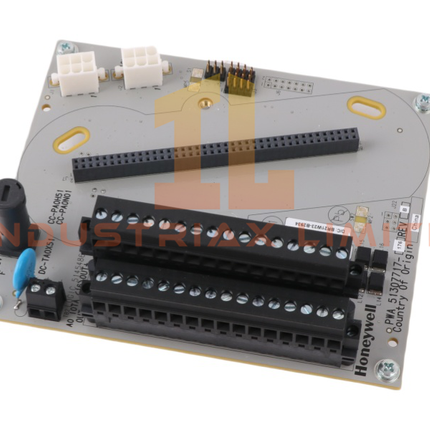

The DC-TAOX01 Analog Output Module from Honeywell is a compact, high-precision unit designed for integration within FSC and DCS systems. Engineered for HVAC and building automation, it provides stable analog signal transmission with advanced accuracy and reliability, making it suitable for air quality monitoring and demand-controlled ventilation applications.
Technical Specifications
-
Model: DC-TAOX01
-
Manufacturer: Honeywell
-
Product Type: Analog Output Module
-
Condition: Brand New
-
Availability: In Stock
-
Weight: 0.15 kg
-
Dimensions: 12 × 19 × 2 cm
-
HS Code: 8537101190
-
Minimum Order Quantity: 1
-
Origin: USA (global distribution from Xiamen, China)
-
System Compatibility: FSC / DCS / Experion PKS
-
Output Channels: 16
-
Output Range: 4–20 mA (expandable to 0–21.1 mA)
-
Accuracy: ±0.35% calibrated at 25°C
-
Resolution: ±0.05%
-
Readback Accuracy: ±4%
-
Ripple: <100 mV
-
Temperature Drift: 0.005%
-
Load Compatibility: 250 Ω
-
Connectivity: Supports Modbus and 0–10 V outputs
-
Design: Isolated outputs to prevent interference
-
Communication Service: Ethernet router
Functional Highlights
-
Hot-swappable design allows maintenance without system downtime.
-
LED indicators provide quick diagnostics and operational status.
-
Compact footprint optimizes control panel space.
-
Low power consumption with high signal integrity for energy-efficient operation.
-
Isolated output design ensures stable performance in electrically noisy environments.
-
Complies with international standards for industrial automation.
Application Scenarios
-
Demand-controlled ventilation (DCV) systems in commercial buildings.
-
Air quality monitoring in hospitals, schools, and data centers.
-
Industrial HVAC systems requiring precise CO₂ measurement and control.
-
Smart building projects focused on energy efficiency and sustainability.
FAQ
Q: How many output channels does the DC-TAOX01 provide? A: It supports 16 analog output channels.
Q: Can the module be integrated with PLCs and DCS systems? A: Yes, it is fully compatible with PLCs, DCS, and Honeywell’s Experion PKS ecosystem.
Q: What is the accuracy of the analog output? A: ±0.35% calibrated accuracy at 25°C with ±0.05% resolution.
Q: Is the module suitable for energy-efficient ventilation systems? A: Yes, it is widely used in DCV applications to optimize airflow based on CO₂ levels.
