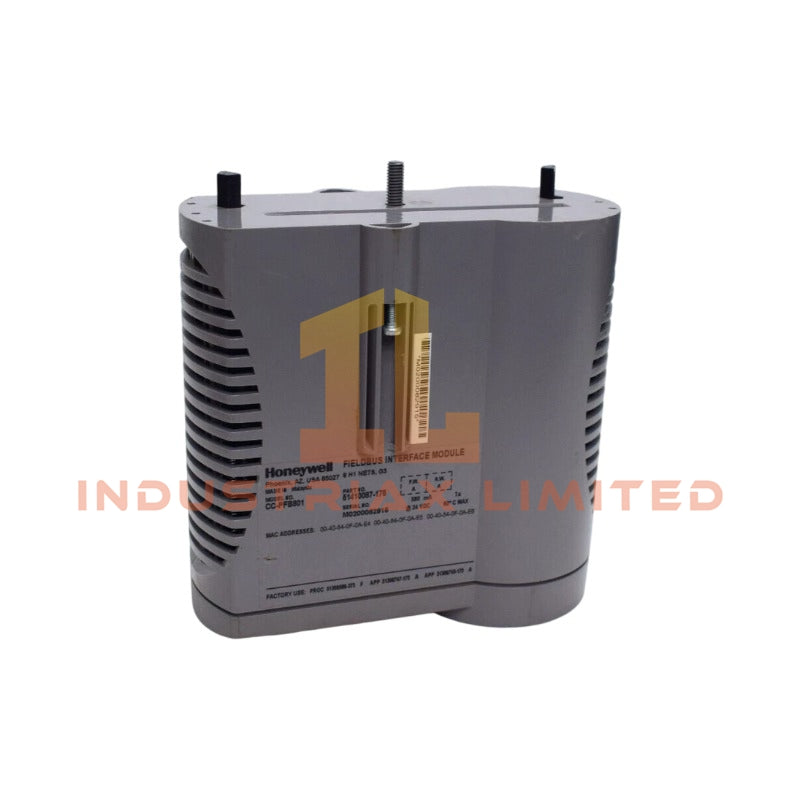

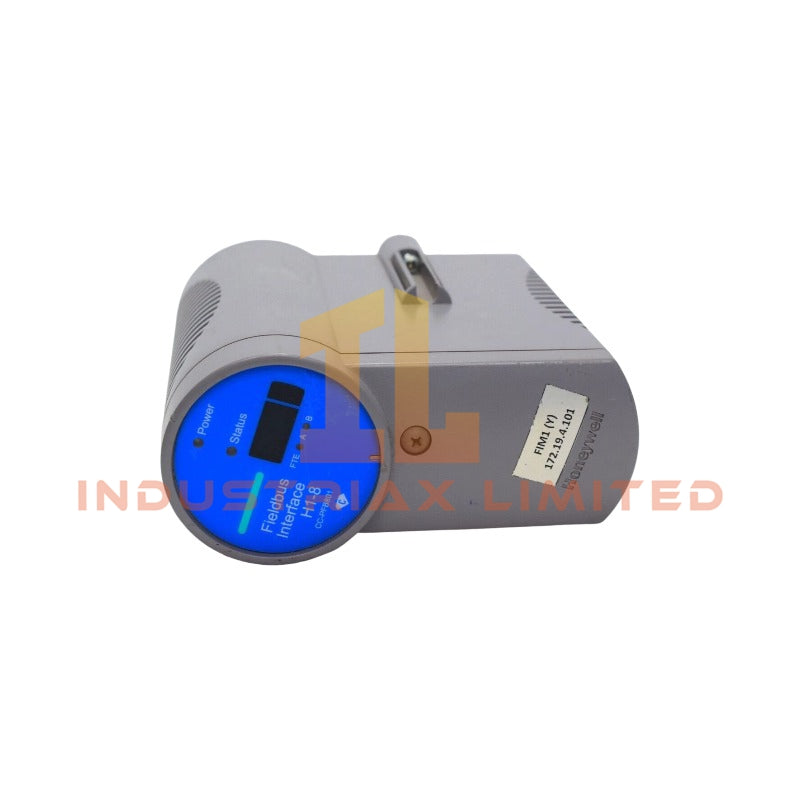

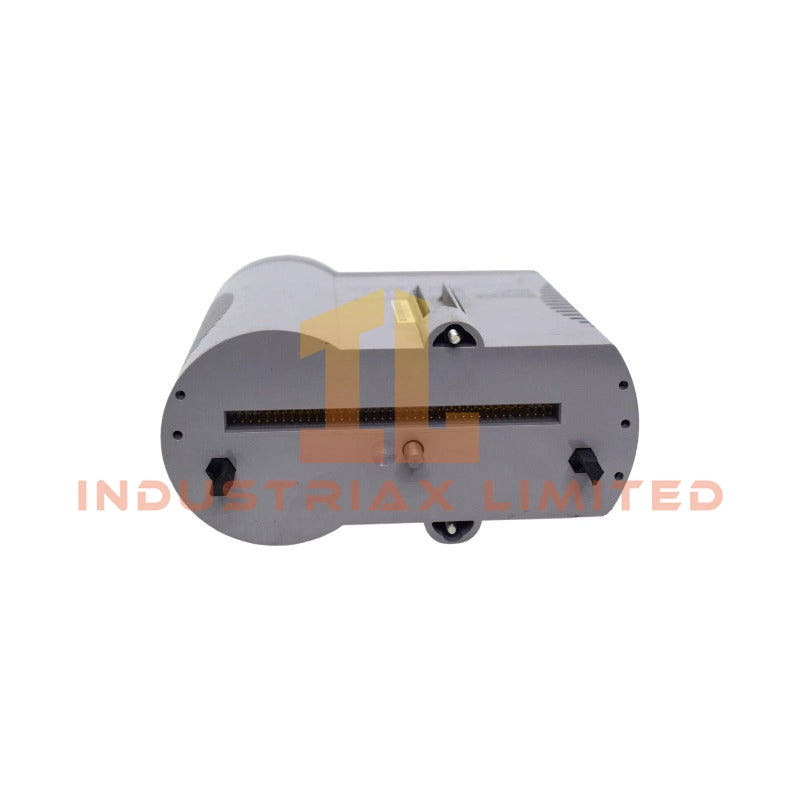

Honeywell CC-PFB801 Fieldbus Isolated Power Supply Module

Configured for providing isolated conditioned DC power to FOUNDATION Fieldbus H1 segments in Experion PKS Series C I/O and C300 controller environments, the Honeywell CC-PFB801 (CC-PFB801 Fieldbus Isolated Power Supply Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	CC-PFB801
Brand	Honeywell
Origin	USA
Weight	Not specified in source documentation
Dimensions	Not specified in source documentation
Operating Temp	-40 deg C to +70 deg C
Power Consumption	Dependent on segment load and backplane configuration
Product Type	Fieldbus Isolated Power Supply / Power Conditioner
Input Voltage	24 VDC nominal
Output Voltage	25 VDC to 28 VDC conditioned fieldbus supply
Output Current	Up to 500 mA per Fieldbus H1 segment (configuration dependent)
Isolation	Galvanic isolation between input supply and fieldbus segment
Network Support	FOUNDATION Fieldbus H1

Fieldbus Power Conditioning & Isolation Characteristics

The CC-PFB801 implements galvanic separation between 24 VDC supply input and FOUNDATION Fieldbus H1 segment power rails. Isolation boundaries are designed to prevent DC ground reference coupling between segment trunk wiring and controller-side power domains.

Fieldbus signal superposition integrity is maintained through power conditioning circuitry that separates DC supply conversion from AC communication overlay in the 31.25 kbit/s H1 physical layer. Segment loading is constrained by power budget allocation at the Fieldbus power conditioner level and downstream device consumption.

Channel-level segmentation is defined by baseplate topology, where each conditioned output channel operates as an electrically independent fieldbus trunk segment.

Frequently Asked Questions (FAQ)

Q: Can the CC-PFB801 be hot-swapped under live Fieldbus H1 segment operation?
A: Hot-swap capability depends on baseplate implementation and redundancy configuration. In redundant deployments, one module may be removed while the paired unit maintains segment power continuity. In single-module configurations, removal interrupts segment voltage supply.

Q: Does the module introduce latency in FOUNDATION Fieldbus communication?
A: The module operates at the power layer and does not process application-layer Fieldbus frames. Latency impact is limited to electrical conditioning path and does not alter H1 protocol timing characteristics.

Q: How is segment current limited on the CC-PFB801?
A: Current limiting is implemented at the power conditioner output stage and enforced per segment channel. Total available current is distributed according to baseplate design and load demand from connected field devices.

Field Installation Guidelines

Mount the CC-PFB801 onto the designated Honeywell Series C termination assembly or compatible baseplate. Ensure 24 VDC supply wiring complies with polarity and upstream fuse coordination requirements.

Maintain shield continuity across Fieldbus trunk cables and terminate shielding at a single system grounding point to prevent ground loop currents. Segment wiring must adhere to FOUNDATION Fieldbus H1 topology rules, including trunk-and-spur length limitations defined by physical layer constraints.

Verify isolation integrity prior to energization by measuring resistance between input supply reference and fieldbus segment conductors. Do not apply external voltage sources to the fieldbus segment during installation.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
