Description
Overview

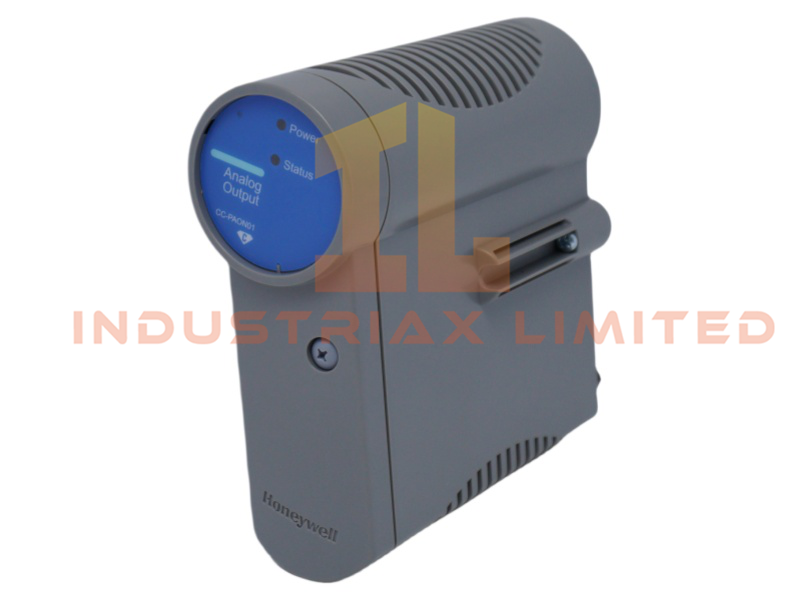

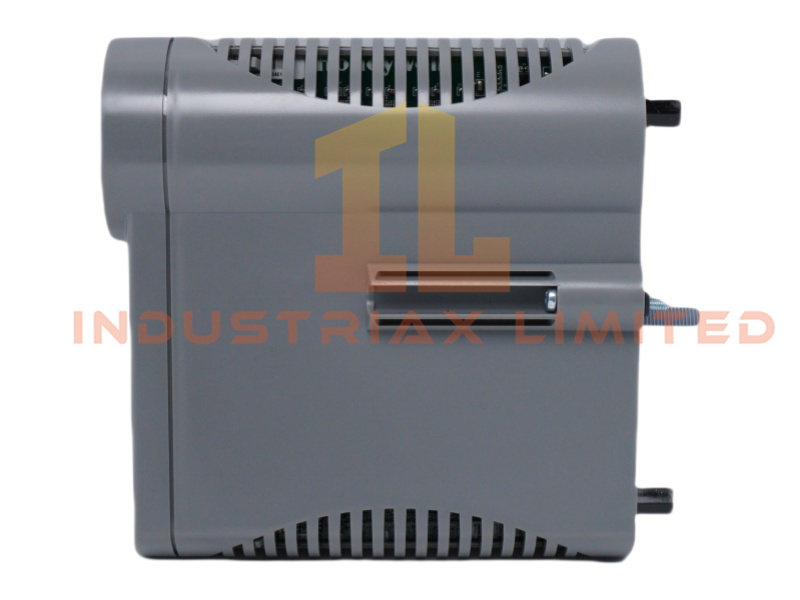

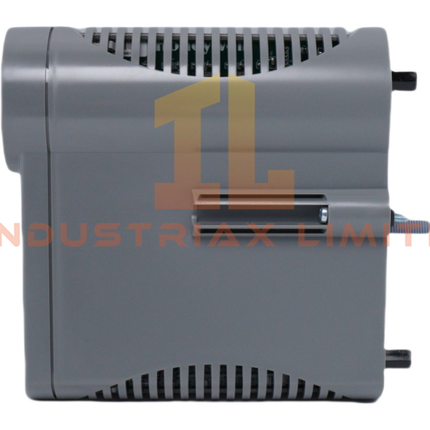

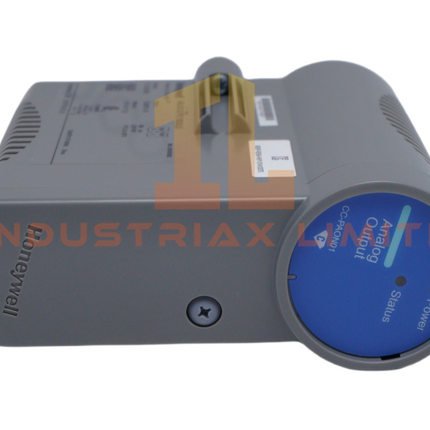

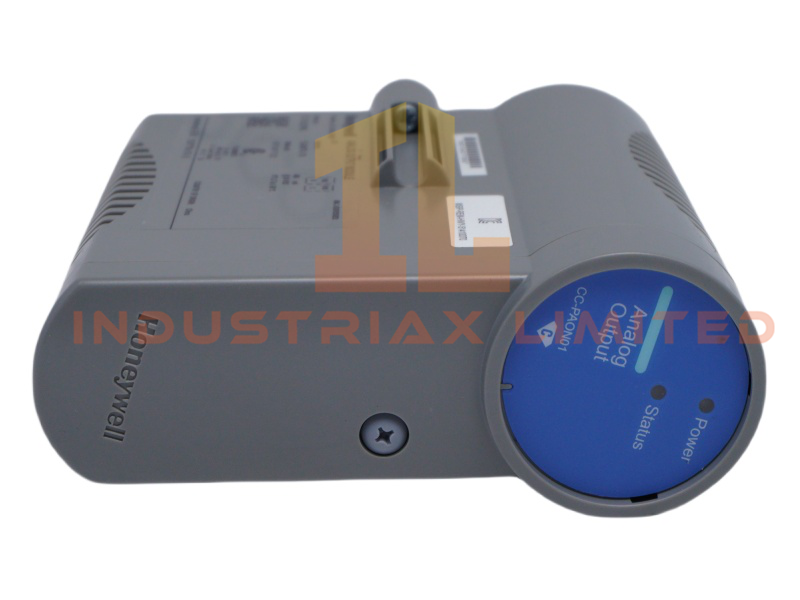

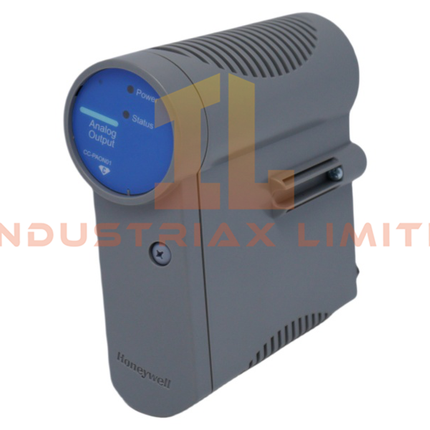

The CC-PAON01 51410070-176 Analog Output Module from Honeywell is a precision-engineered component designed for Experion PKS distributed control systems (DCS). This module provides accurate and stable analog output signals, supporting both current and voltage outputs for seamless integration into industrial automation environments. Built for reliability, it ensures consistent performance in mission-critical applications such as oil & gas, chemical processing, and power generation.
Technical Specifications
-
Model Number / Part Number: CC-PAON01 51410070-176
-
Manufacturer: Honeywell
-
Module Type: Analog Output Module
-
Condition: Brand New
-
System Compatibility: Honeywell Experion PKS DCS
-
Product Range: Experion PKS
-
Dimensions: 14.5 cm × 5.5 cm × 14.5 cm
-
Weight: 0.3 kg
-
HS Code: 8537101190
-
Origin: USA
-
Minimum Order Quantity (MOQ): 1
-
Lead Time: In Stock
-
Status: Active
-
Communication Interface: Ethernet router supported
-
Output Types: Current (4–20 mA) and Voltage (0–10 V)
-
Isolation: 1500 V AC galvanic isolation between channels
-
Temperature Range: –25 °C to +70 °C
-
Certifications: ATEX / IECEx intrinsic safety compliance
-
Reliability: MTBF of 500,000 hours
-
Design Features: Hot-swappable, DIN-rail mounting, per-channel LED diagnostics
Functional Highlights
-
Provides precise analog output signals for process control systems
-
Supports HART communication protocol for advanced diagnostics and configuration
-
Hot-swappable design allows maintenance without system downtime
-
Rugged construction ensures vibration resistance and reliable operation in harsh environments
-
Compact DIN-rail mounting optimizes cabinet space utilization
-
Extended service life with high MTBF rating for continuous operation
Application Scenarios
-
Oil & gas facilities requiring precise analog control for critical processes
-
Chemical plants needing reliable analog outputs for monitoring and control loops
-
Power generation stations with distributed control architectures
-
Industrial automation environments integrating HART-enabled devices for diagnostics and optimization
FAQ
Q: What types of signals does the module support? A: The CC-PAON01 51410070-176 supports both 4–20 mA current and 0–10 V voltage outputs.
Q: Can the module be replaced without shutting down the system? A: Yes, it features a hot-swappable design for zero-downtime maintenance.
Q: Is the module certified for hazardous environments? A: Yes, it carries ATEX and IECEx intrinsic safety certifications.
