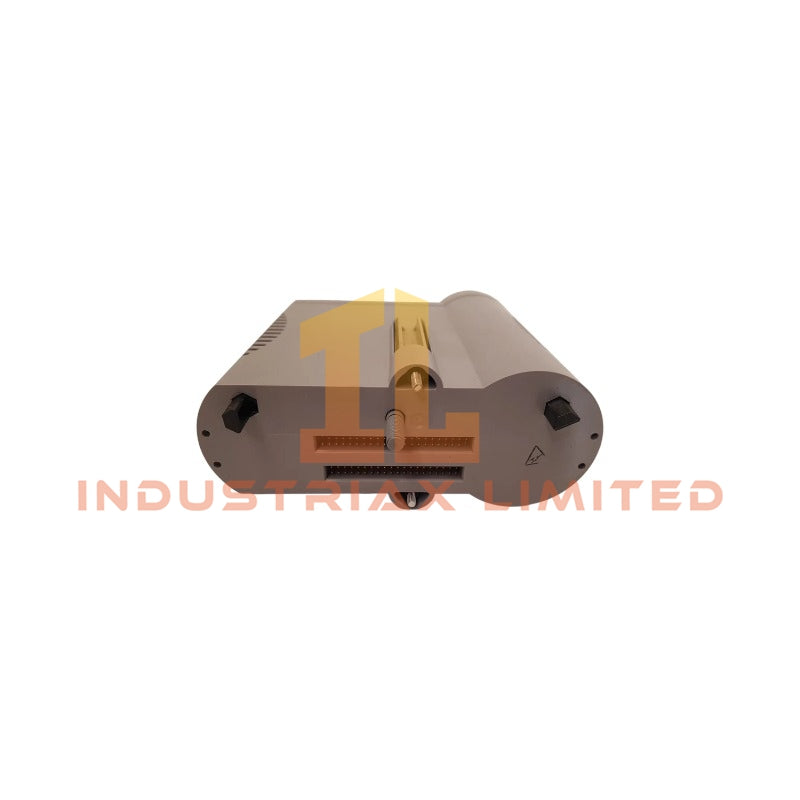

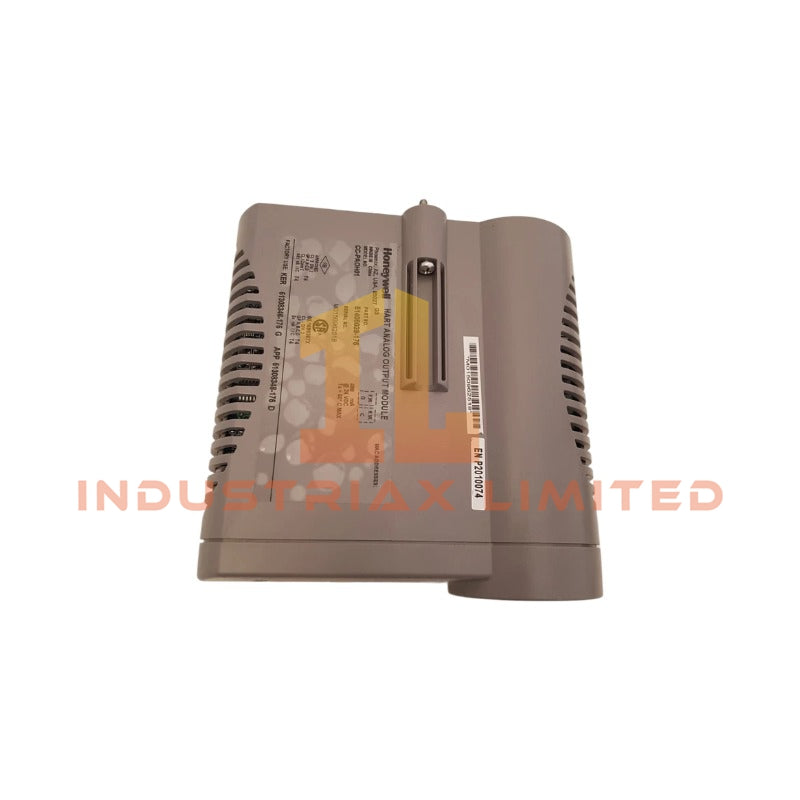

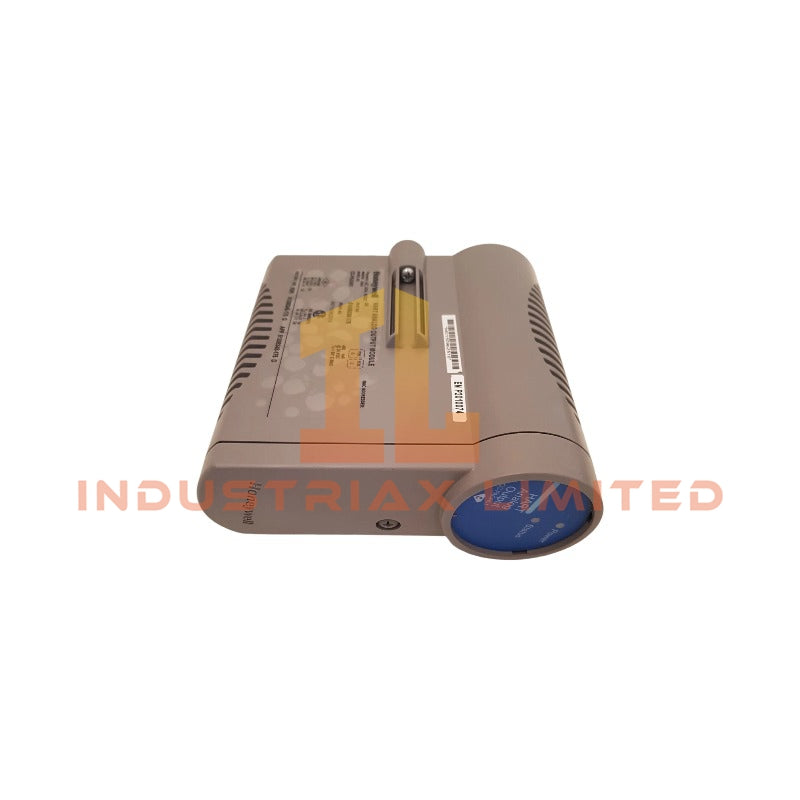

Honeywell CC-PAOH01 51405039-175 Analog Output Module

The Honeywell CC-PAOH01 51405039-175, also cataloged as the 51405039-175 analog output module, operates as a dedicated hardware component for 4-20 mA current loop signal generation within the Experion PKS C300 I/O subsystem. The module executes 16-channel analog output conversion with HART-compatible loop interfacing and per-channel electrical drive control from a 24 VDC backplane supply.

Suffix Breakdown & Model Matrix

CC-PAOH01 51405039-175 is a single-defined spare model identifier. No additional functional suffix segmentation or variant encoding is specified in the provided dataset.

Hardware Specifications

Parameter	Specification
Model	CC-PAOH01 51405039-175
Brand	Honeywell
Origin	USA
Weight	0.4 kg
Dimensions	6 x 15.5 x 14.5 cm (shipping envelope)
Operating Temp	N/A
Power Consumption	0.46 A @ 24 VDC
Output Type	4-20 mA HART analog output
Output Channels	16
Output Ripple	< 100 mV peak-to-peak (power line frequency)
Output Linearity	± 0.05 % Full Scale
Calibration Accuracy	± 0.35 % Full Scale @ 25 deg C
Load Capability	Max 800 ohm resistive load
Compliance Voltage	Max 16 V
Open Circuit Voltage	22 V
Resolution	± 0.05 % Full Scale

4-20 mA HART Loop Electrical Behavior

The module implements channel-parallel 4-20 mA current sourcing with HART overlay modulation on the output loop. Each channel maintains independent DAC control with linearized current regulation referenced to full-scale calibration. Output compliance is constrained by internal voltage headroom, limiting loop resistance to defined maximum loading conditions under full-scale drive.

Channel architecture supports simultaneous multi-output updating through backplane-synchronized refresh cycles, ensuring deterministic current step execution across all 16 output points.

Frequently Asked Questions (FAQ)

Q: Does the module support hot-swap replacement under energized backplane conditions?
A: Hot-swap capability depends on system backplane implementation. The module itself maintains static output state retention during insertion/removal events, but field loop interruption occurs if loop power is not externally buffered.

Q: What is the impact of maximum loop resistance on output accuracy?
A: Operation near the 800 ohm resistive limit reduces available compliance voltage margin, which can induce current saturation and degrade linearity at high output setpoints.

Q: Is channel-to-channel electrical isolation implemented?
A: The provided specifications do not define per-channel galvanic isolation. Isolation behavior is determined at the I/O termination assembly and system architecture level.

Field Installation Guidelines

• Install module into designated C300-compatible I/O chassis slot only.
• Maintain shield continuity for all 4-20 mA loop wiring with single-point grounding at cabinet earth reference.
• Ensure loop supply voltage remains within compliance margin to avoid output saturation under high load resistance.
• Verify field wiring polarity before energizing output channels to prevent DAC drive stress conditions.
• Avoid routing analog output wiring parallel to high-frequency switching conductors to reduce induced ripple coupling.
• Confirm backplane connector seating integrity prior to system power-up to prevent intermittent channel activation.
