Description
Product Overview

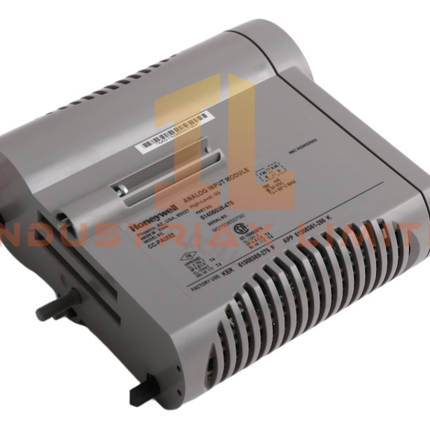

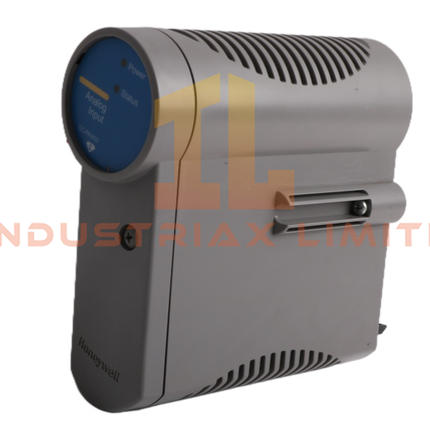

The Honeywell CC-PAIX02 51405038-475 High Level Analog Input Module integrates into Experion PKS systems to provide precise signal conditioning and data acquisition. It supports multiple input ranges including 0–5V, 1–5V, 0.4–2V, and 4–20mA, offering flexibility for diverse process applications. Engineers rely on its robust design, advanced diagnostics, and fast loop scan capability for real-time monitoring.
Technical Specifications
| Parameter |
Specification |
| Model Number |
CC-PAIX02 51405038-475 |
| Module Type |
High Level Analog Input Module |
| Manufacturer |
Honeywell |
| Condition |
Brand New |
| Dimensions |
5.5 × 16 × 14.5 cm |
| Weight |
0.46 kg |
| Channels |
16 analog input channels |
| Input Ranges |
0–5V, 1–5V, 0.4–2V, 4–20mA |
| Resolution |
16-bit A/D converter |
| Noise Rejection |
70 dB common mode, -60 dB crosstalk |
| Field Power |
Non-incendive |
| Redundancy |
Optional configurations supported |
| Loop Scan |
Fast capability for real-time monitoring |
| System Compatibility |
Experion PKS, DCS |
| HS Code |
8537101190 |
| Origin |
USA |
| MOQ |
1 |
Performance and Reliability
The Honeywell CC-PAIX02 51405038-475 ensures accurate data acquisition with 16-bit resolution and strong noise rejection. Its redundancy options enhance system reliability, while non-incendive field power improves safety in hazardous environments.
Communication and Integration
The Honeywell CC-PAIX02 51405038-475 integrates seamlessly into Experion PKS architectures. Engineers benefit from advanced diagnostics, compact dimensions, and efficient installation, ensuring smooth operation in distributed control systems.
Applications and Compatibility
The Honeywell CC-PAIX02 51405038-475 High Level Analog Input Module suits industries such as oil and gas, chemical processing, power generation, and pharmaceuticals. It supports precise monitoring of voltage and current signals, enabling reliable process automation and scalable system integration.
