Description

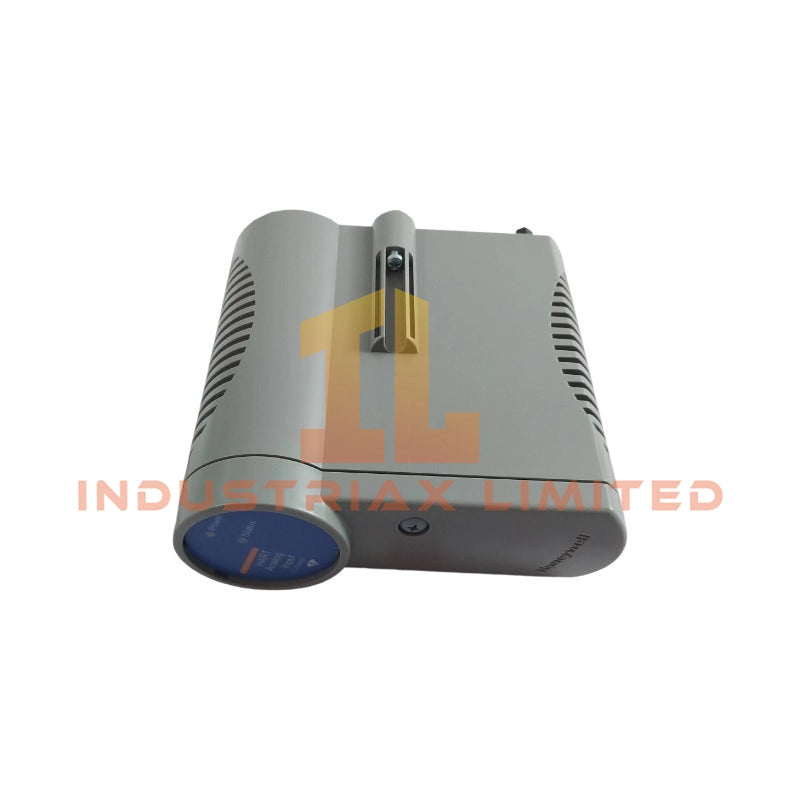

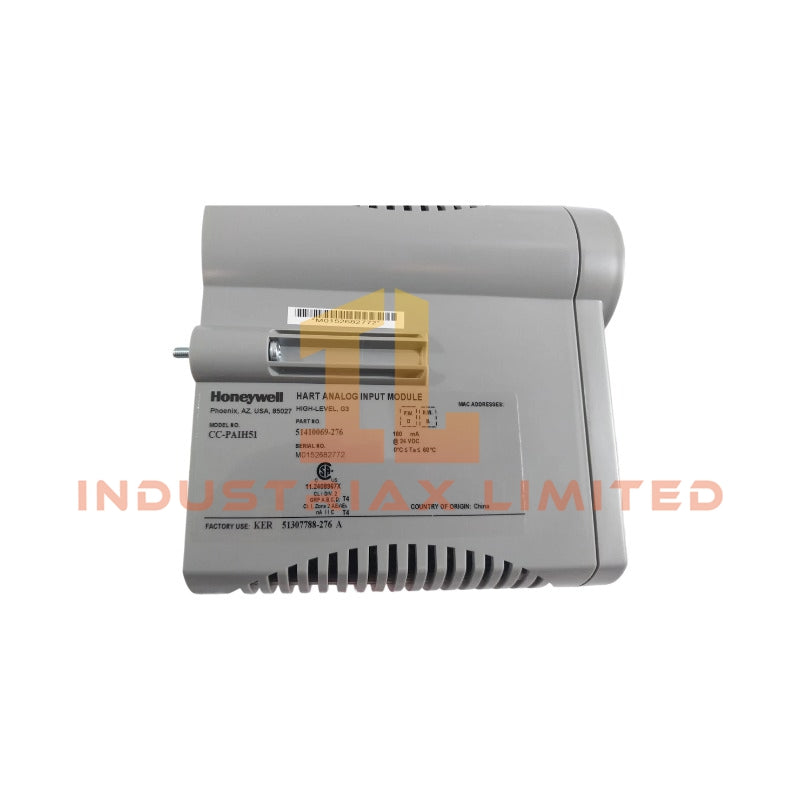

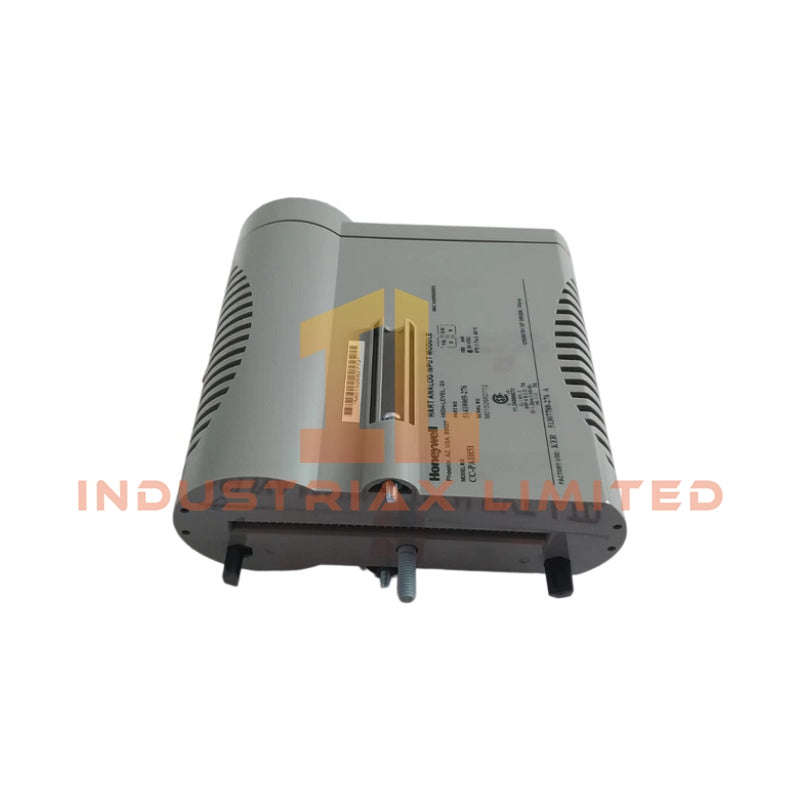

Honeywell CC-PAIH51 51410069-275 Analog Input Module

The Honeywell CC-PAIH51 51410069-275, also cataloged as the 51410069-275 Analog Input Module, operates as a dedicated hardware component for acquisition of 4-20 mA process signals within Honeywell Experion PKS distributed control system I/O architectures.

The module converts up to 16 channel analog current loop inputs into digitized process data via a 16-bit A/D conversion stage, supporting high-speed scan execution at 50 ms update intervals and HART-compatible field device integration for loop-level variable access.

Hardware Specifications

Parameter	Specification
Model	CC-PAIH51 51410069-275
Brand	Honeywell
Origin	USA
Weight	0.4 kg
Dimensions	5.5 cm x 16 cm x 14.5 cm
Operating Temp	Not specified
Power Consumption	Not specified
Input Channels	16 channels
Input Type	4-20 mA (via 200 ohm conversion path)
A/D Resolution	16 bit
Input Scan Rate	50 ms
Common Mode Rejection Ratio	70 dB (DC to 60 Hz)
Normal Mode Rejection Ratio	19 dB at 60 Hz
Crosstalk	-60 dB (DC to 60 Hz channel-to-channel)
Max Normal Mode Input	±30 V
Common Mode Voltage Range	-6 V to +5 V peak

Honeywell 4-20 mA HART Process I/O Characteristics

The CC-PAIH51 module implements a 4-20 mA loop acquisition front-end designed for HART-enabled field instrumentation. Each channel supports current loop measurement through a precision 200 ohm conversion structure, enabling simultaneous analog process variable acquisition and superimposed HART digital communication decoding.

Channel-to-channel electrical isolation and crosstalk suppression at -60 dB reduce inter-channel interference during dense I/O operation. The input stage is configured for non-incendive field power distribution, eliminating the requirement for external loop power sources in standard installations.

Diagnostic routines execute continuously, providing per-channel integrity checks including open loop detection, signal saturation monitoring, and conversion validity verification.

Frequently Asked Questions (FAQ)

Q: Does the CC-PAIH51 support hot-swap replacement in a live system?
A: Hot-swap capability is dependent on the system backplane and controller configuration. The module itself supports removal only under system-defined maintenance conditions.

Q: What is the impact of redundancy configuration on input scanning?
A: In redundant I/O architectures, scan execution is mirrored across primary and standby modules, with switchover behavior managed at the controller level; module-level timing remains fixed at 50 ms.

Q: Can HART data be accessed simultaneously with 4-20 mA signal conversion?
A: Yes. The input stage is designed to decode HART superimposed digital signals while maintaining continuous analog current measurement.

Field Installation Guidelines

Install the module into the designated Honeywell I/O rack slot ensuring full backplane connector engagement. Maintain proper shielding termination for all field wiring, with single-point grounding at the cabinet earth bar.

Use twisted-pair, shielded cabling for 4-20 mA loops. Avoid routing analog signal cables parallel to high-voltage or high-frequency switching conductors. Ensure minimum bend radius compliance according to standard industrial wiring practice.

Verify loop integrity before energizing the system and confirm channel mapping within Experion PKS configuration tools prior to process activation.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
