Product Description

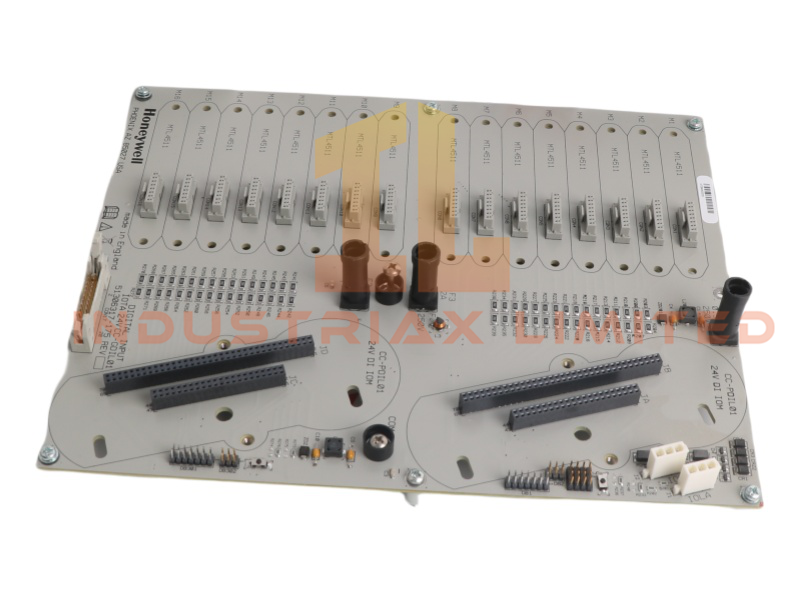

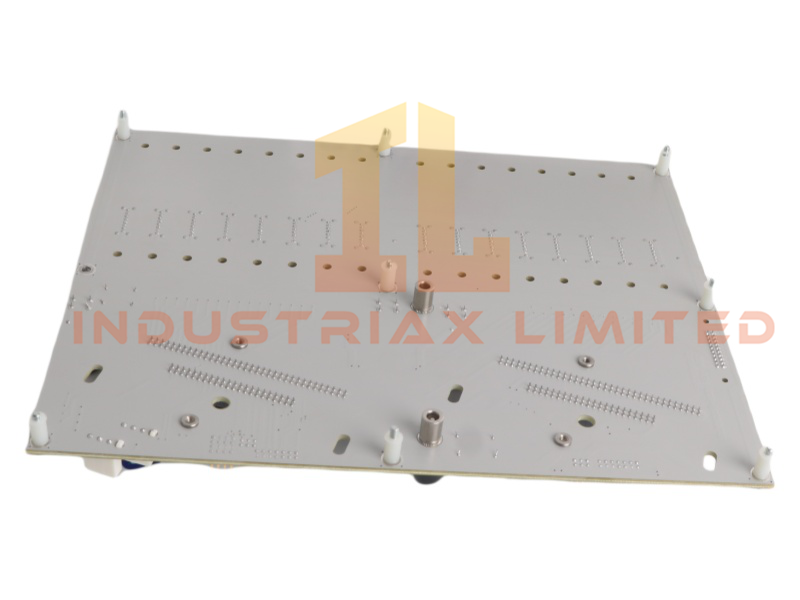

The Honeywell CC-GDIL01 51306317-175 Digital Input Module is a high-performance 32-channel unit designed for Experion PKS Distributed Control Systems (DCS). Built for mission-critical automation environments, it ensures fast, reliable signal acquisition and robust connectivity across industrial applications.
Technical Specifications
-
Model Number: CC-GDIL01 51306317-175
-
Manufacturer: Honeywell
-
Product Type: Digital Input Module
-
Series: Experion PKS
-
Condition: Brand New
-
System Compatibility: DCS
-
Origin: USA
-
Weight: 0.46 kg
-
Dimensions: 29.5 × 24 × 5.5 cm
-
HS Code: 8537101190
-
MOQ: 1
-
Lead Time: In Stock
-
Communication Interface: Ethernet Router
-
Status: Active (not discontinued)
Functional Overview
The CC-GDIL01 51306317-175 module is engineered for rapid signal processing, delivering 1 ms input response times for real-time monitoring of sensors and switches. It supports 12–24V DC inputs with surge protection and provides robust isolation (1500V channel-to-channel and channel-to-ground), ensuring reliable operation in noisy industrial environments.
Key features include:
-
32-channel digital input capacity.
-
Wide operating temperature range: -25°C to +60°C.
-
Humidity tolerance up to 95% non-condensing.
-
Per-channel LED indicators for diagnostics and troubleshooting.
-
Hot-swappable design for reduced downtime.
-
DIN-rail mountable for simplified installation.
-
Compliance with IEC 61131-2 and UL 508 standards.
-
Compatibility with PROFINET, EtherNet/IP, and Modbus TCP networks.
-
MTBF rating of 500,000+ hours for long-term reliability.
Application Scenarios
-
Smart factory automation requiring high-speed digital input acquisition.
-
Energy and utility systems with strict reliability demands.
-
Transportation and manufacturing environments with high electrical noise.
-
Industry 4.0 deployments requiring predictive maintenance and modular scalability.
FAQ
Q: What is the input response time of the CC-GDIL01? A: It delivers 1 ms response times, ensuring real-time monitoring of connected devices.
Q: Can the module be hot-swapped? A: Yes, it supports hot-swapping, minimizing downtime during maintenance.
Q: Which communication protocols are supported? A: PROFINET, EtherNet/IP, and Modbus TCP are fully supported for seamless integration.
