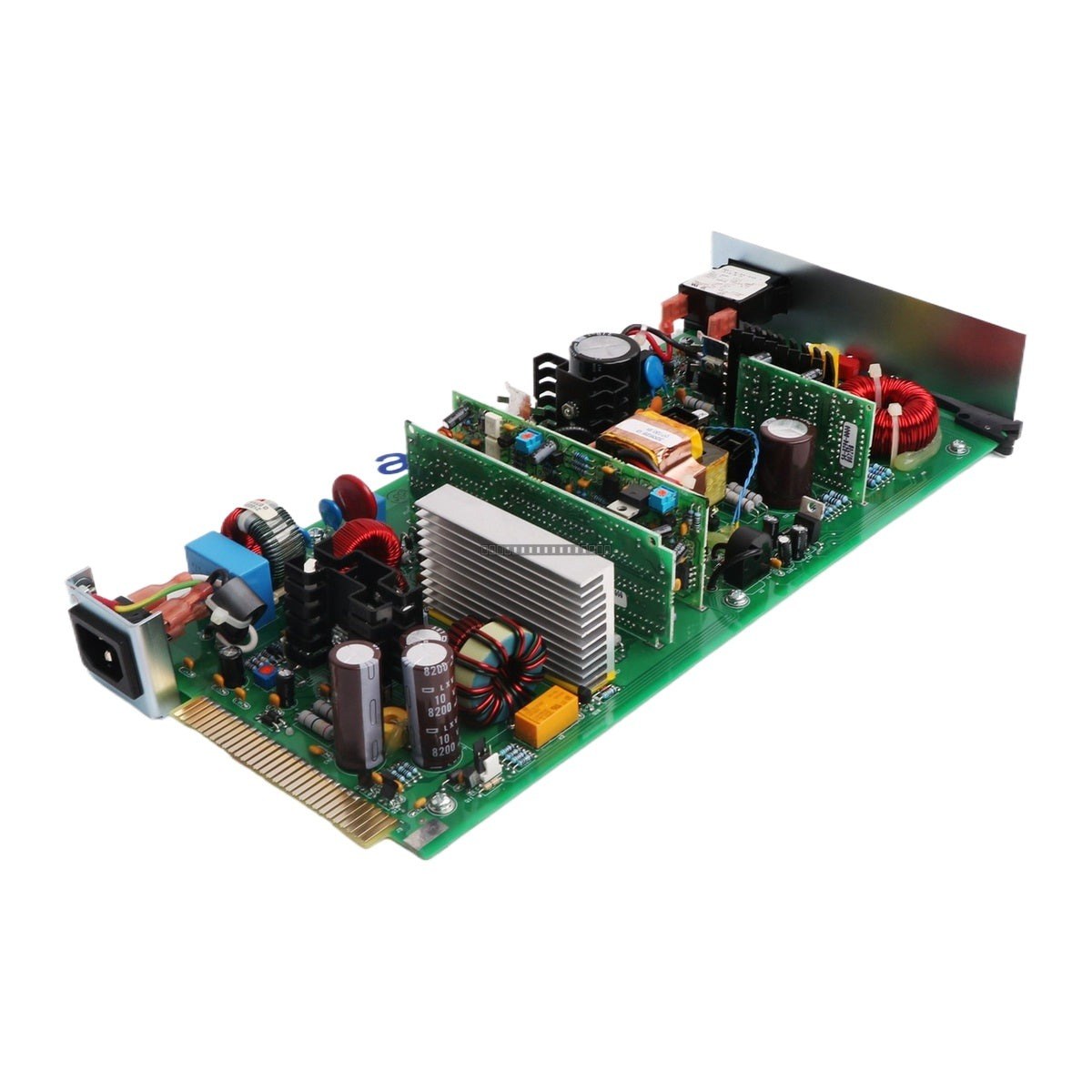

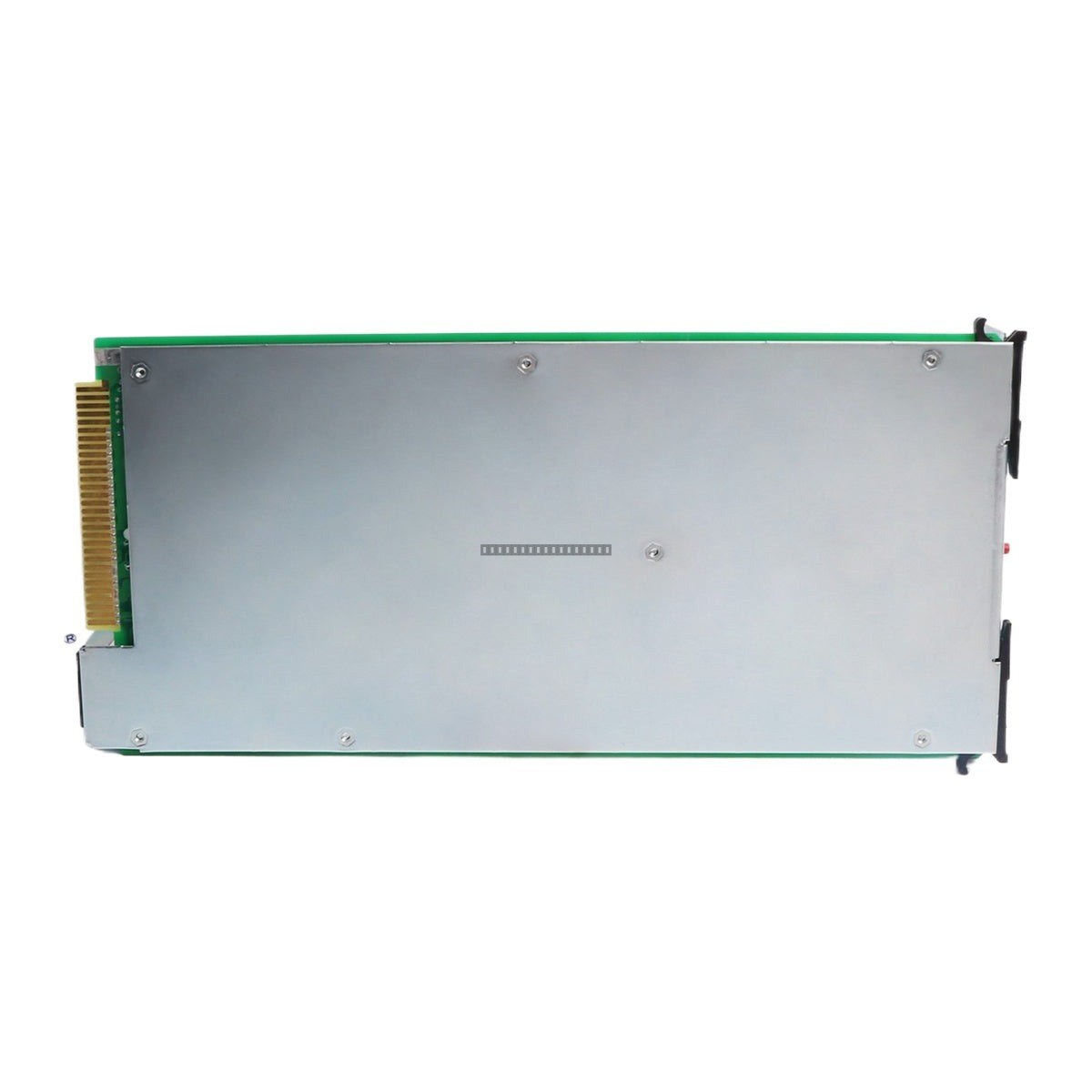

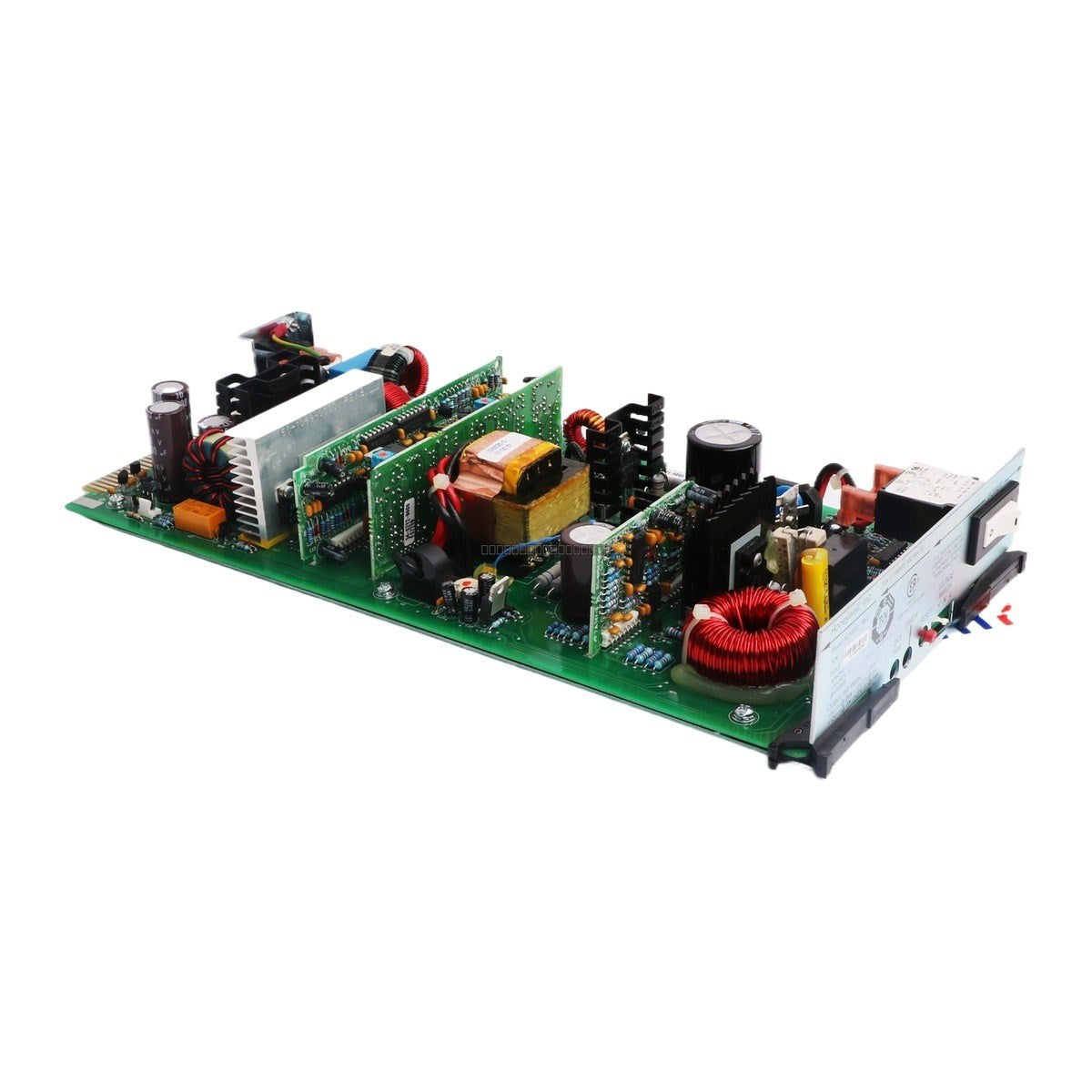

The Honeywell ACX633 is a dual-node power supply module designed for industrial control applications. This unit is engineered to provide reliable power conversion and distribution for critical automation systems. Please note that this specific model has been discontinued by the manufacturer, making it a vital component for maintaining legacy infrastructure.
Features
- Dual-node architecture for enhanced system reliability
- Wide-range input voltage compatibility: 120-240 VAC
- Multi-voltage output capabilities: 5 VDC, 12 VDC, and 27 VDC
- Total power output capacity of 165 Watts
- Designed for integration into standard industrial control cabinets
Technical Specifications
| Model |
ACX633 |
| Spare Part Number |
51196655-100 |
| Input Voltage |
120-240 VAC |
| Input Frequency |
50/60 Hz |
| Input Current |
4 Amp |
| Output Voltage |
5/12/27 VDC |
| Output Current |
20/3/1/0.6 Amp |
| Total Power |
165 Watt |
Installation Guidelines
- Ensure the power supply is disconnected from the main AC source before installation or removal.
- Mount the module in a clean, dry environment with adequate ventilation to prevent overheating.
- Verify that the input voltage matches the module specifications (120-240 VAC) before applying power.
- Ensure proper grounding of the module chassis to minimize electromagnetic interference (EMI).
- Use appropriate wire gauges for all connections to handle the rated current capacity.
- Handle with care to avoid damage to sensitive internal electronic components; use ESD-safe practices.
FAQ
Is the Honeywell ACX633 still in production?
No, this model has been discontinued by the manufacturer. We provide these units as spare parts for existing systems.
What is the primary function of the ACX633?
This is a dual-node power supply module used to convert AC line power into the specific DC voltages (5V, 12V, 27V) required by Honeywell control hardware.
