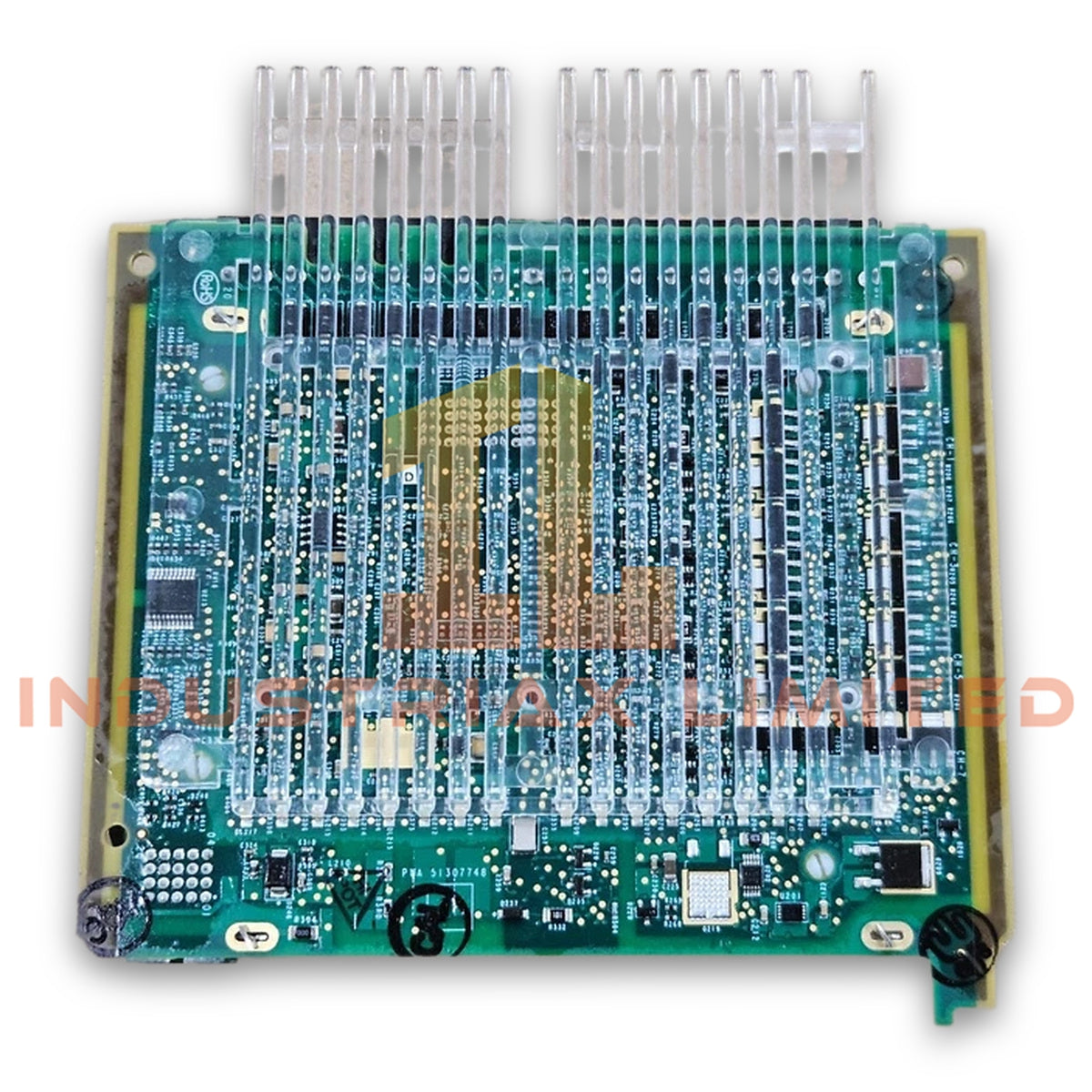

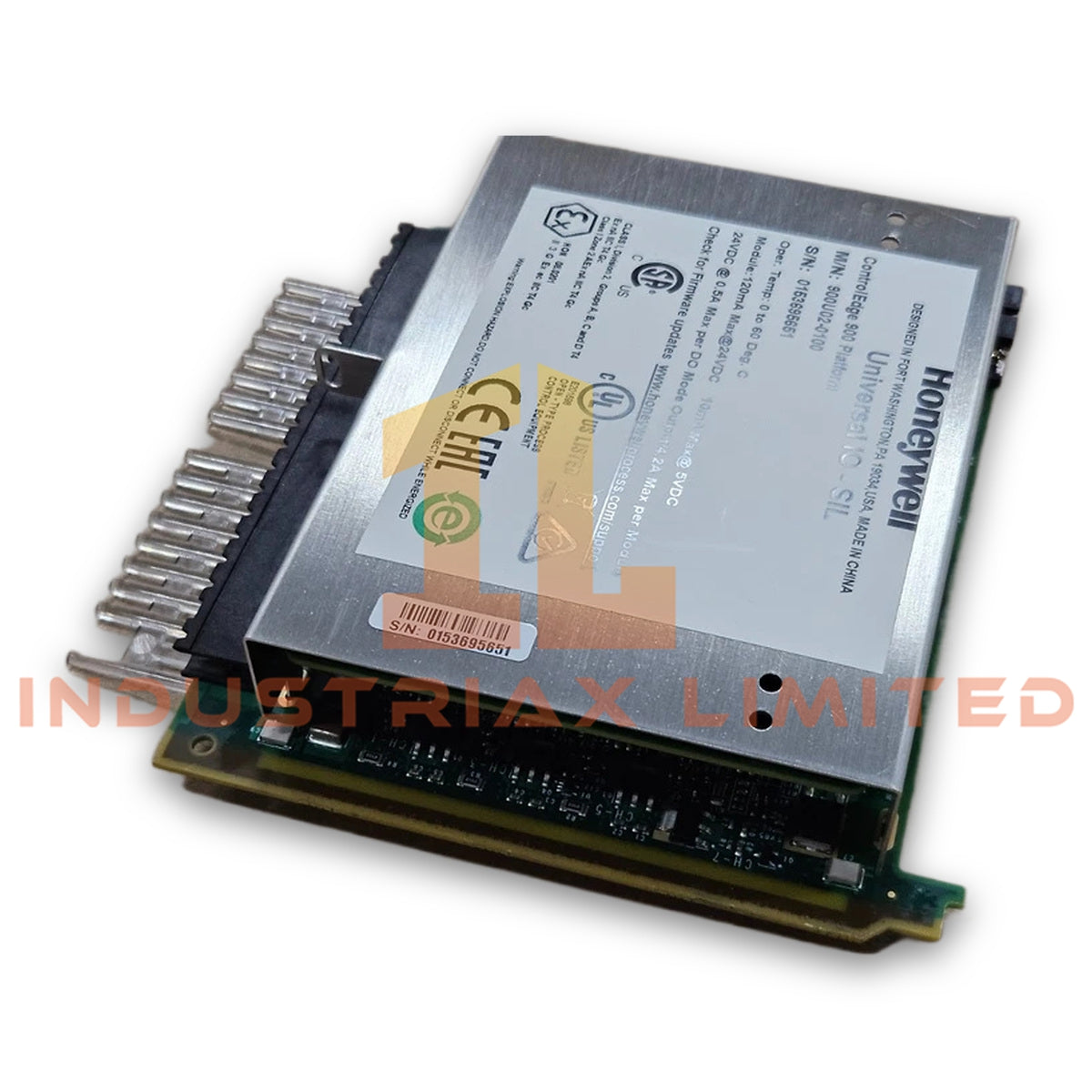

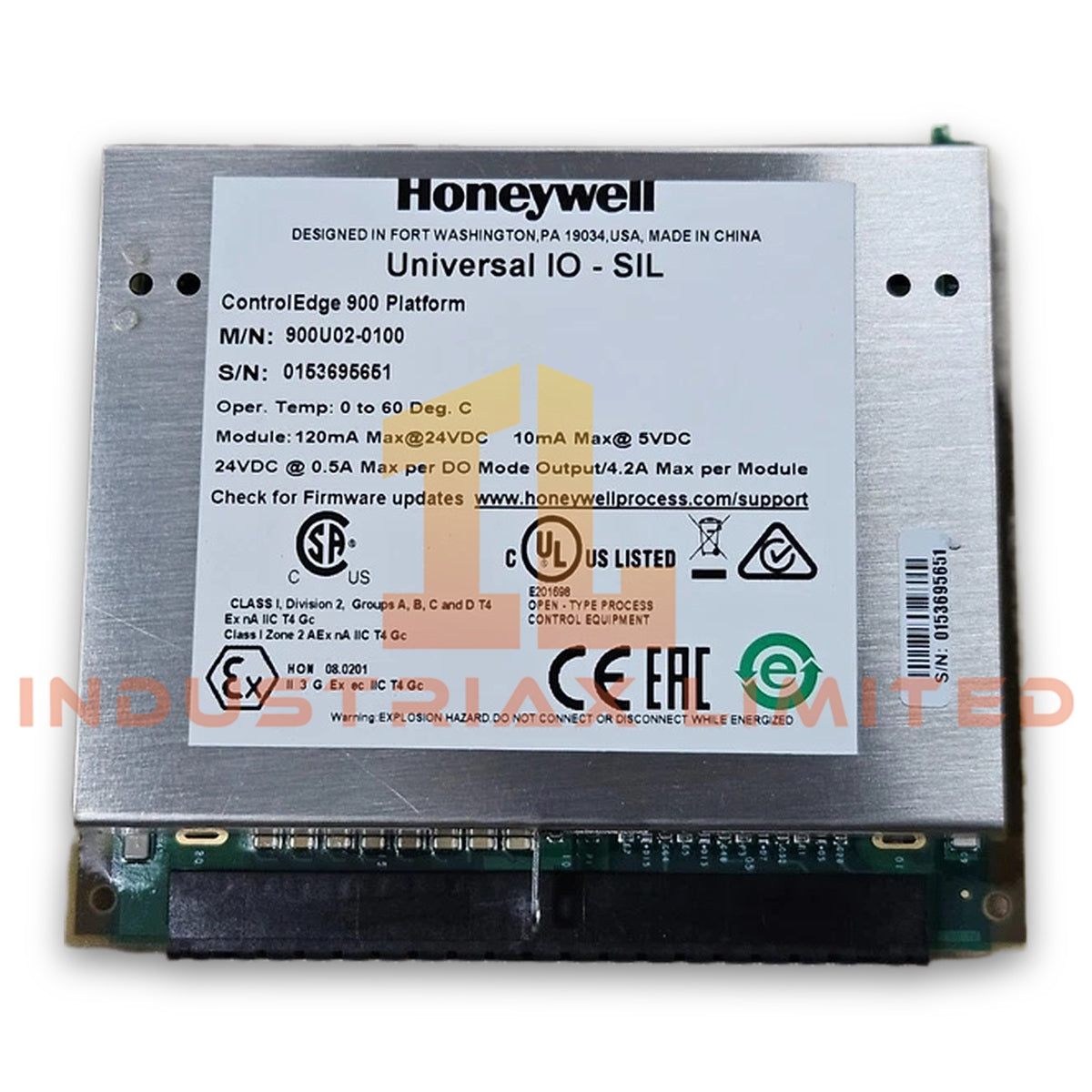

Honeywell 900U02-0100 Universal I/O Module

Configured for configurable analog and digital signal processing in the Honeywell ControlEdge HC900 platform, the Honeywell 900U02-0100 (900U02 Universal I/O Module) provides direct physical and electrical execution. The module supports software-selectable AI, AO, DI, and DO functions on each channel, accepts 4-20 mA process signals with HART communication support, and incorporates line monitoring, short-circuit protection for digital outputs, and configurable redundancy for process control applications.

Hardware Specifications

Parameter	Specification
Model	900U02-0100
Brand	Honeywell
Product Type	Universal I/O Module
Origin	USA
Place of Shipment	Xiamen, China
Weight	0.2 kg
Dimensions	13.4 x 3.3 x 5.4 cm
Field Supply Voltage	24 VDC
Non-redundant Configuration	16 channels
Redundant Configuration	14 channels
Input Channels	Maximum 16 per module
Input Range	4-20 mA
A/D Converter Resolution	16 bit
Update Rate	10 ms
Channel Load	500 mA per channel
Maximum Module Load	4.2 A
ESCP Protection	620 mA resettable
Input Impedance	250 Ohm nominal
Crosstalk	58 dB, DC to 60 Hz, channel-to-channel
Output Current Range	2.4 mA to 21 mA, directly configurable
Maximum Resistive Load	7504 Ohm
Digital Output Protection	Short-circuit protection
HART Support	Supported
Channel Configuration	AI, AO, DI, or DO by software
Line Monitoring	Available for all configurations

4-20 mA HART Loop and Channel Configuration

The module supports standard 4-20 mA process loops together with HART communication, allowing analog measurement and digital device communication over the same wiring pair. Each channel can be configured independently through software as an analog input, analog output, digital input, or digital output without hardware replacement.

The 16-bit A/D converter provides digital conversion for analog input signals, while the nominal 250 Ohm input impedance matches standard current-loop installations. In addition, the module maintains 58 dB channel-to-channel crosstalk performance from DC to 60 Hz, reducing interference between adjacent channels during mixed signal operation.

Digital output channels include integrated short-circuit protection, and line monitoring remains available regardless of the selected I/O configuration. Therefore, the same hardware platform can support different field signal combinations while maintaining a common wiring architecture.

Frequently Asked Questions

Q: Does the 900U02-0100 require different hardware for AI, AO, DI, and DO functions?
A: No. Each channel is software configurable as an analog input, analog output, digital input, or digital output according to the control strategy.

Q: Does the module support HART field instruments?
A: Yes. The module supports HART communication on compatible 4-20 mA loops.

Q: Can all 16 channels remain available in a redundant installation?
A: No. The module supports 16 channels in a non-redundant configuration and 14 channels when configured for redundancy.

Field Installation Guidelines

• Verify that the field supply provides 24 VDC before connecting field wiring.
• Separate analog signal cables from high-voltage or motor power cables to reduce electrical noise.
• Connect cable shields according to the plant grounding specification to minimize electromagnetic interference.
• Confirm channel configuration before energizing field devices because each channel can operate as AI, AO, DI, or DO.
• Ensure that field current and resistive loads remain within the specified module ratings.
• Inspect terminal wiring after installation and verify loop continuity before placing the module into service.
