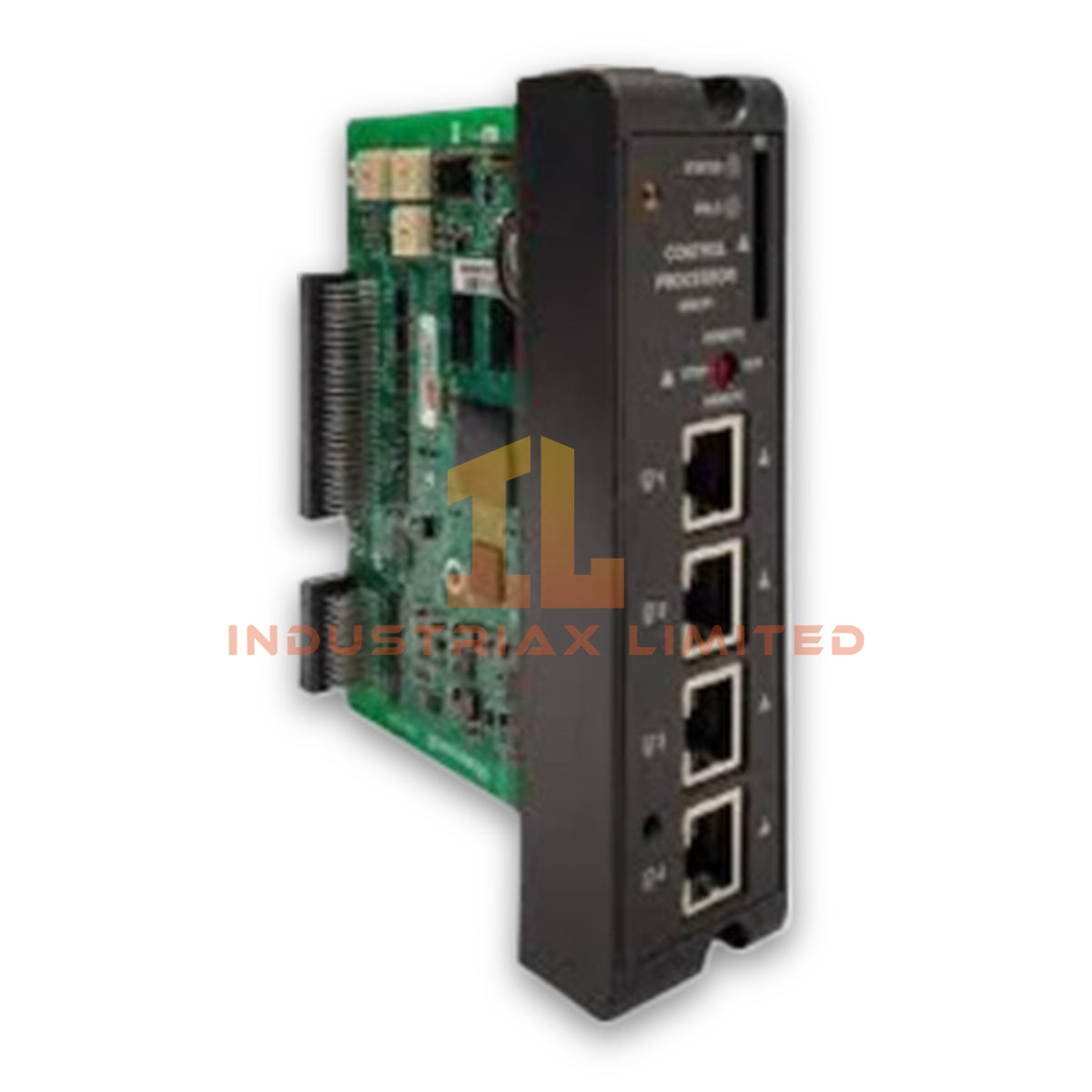

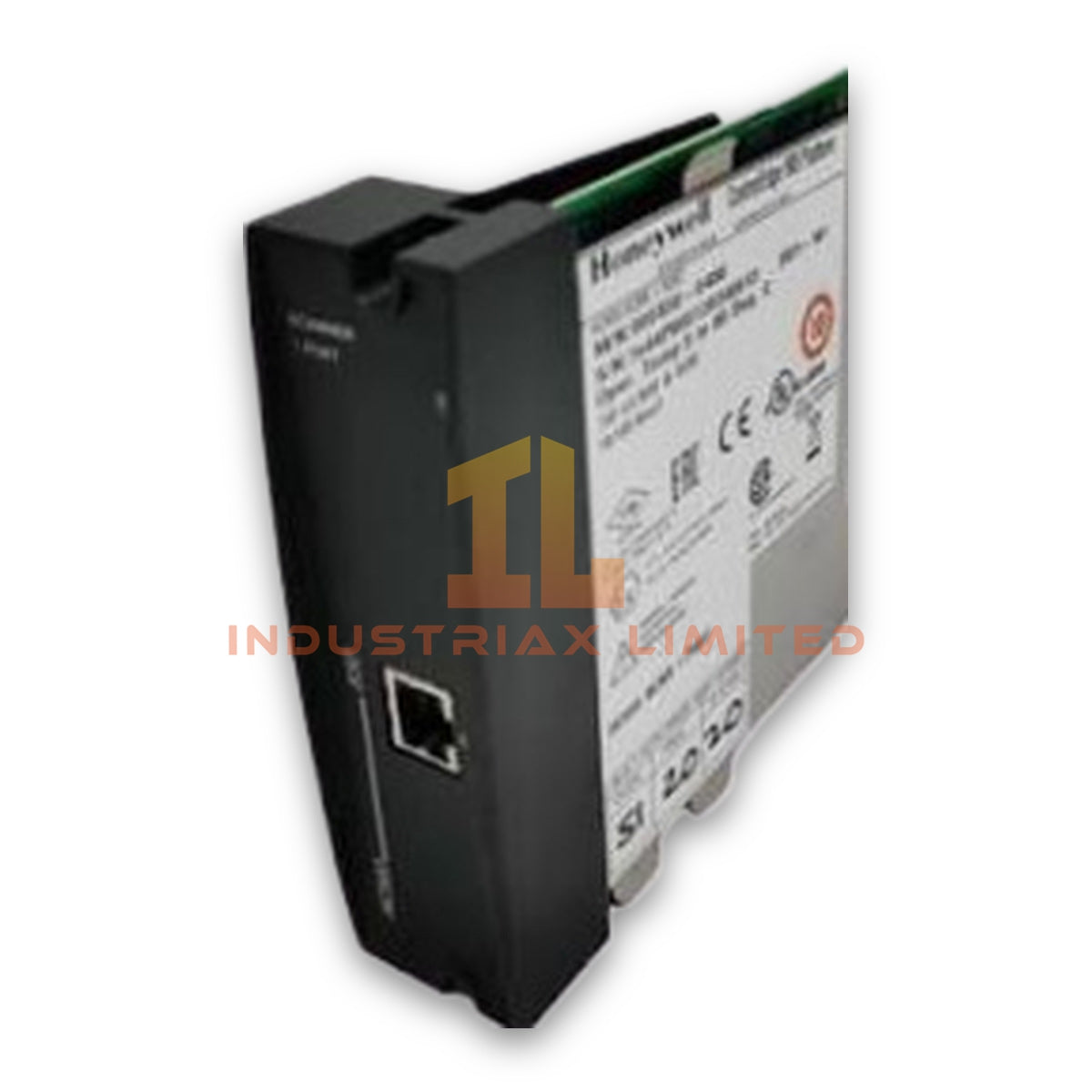

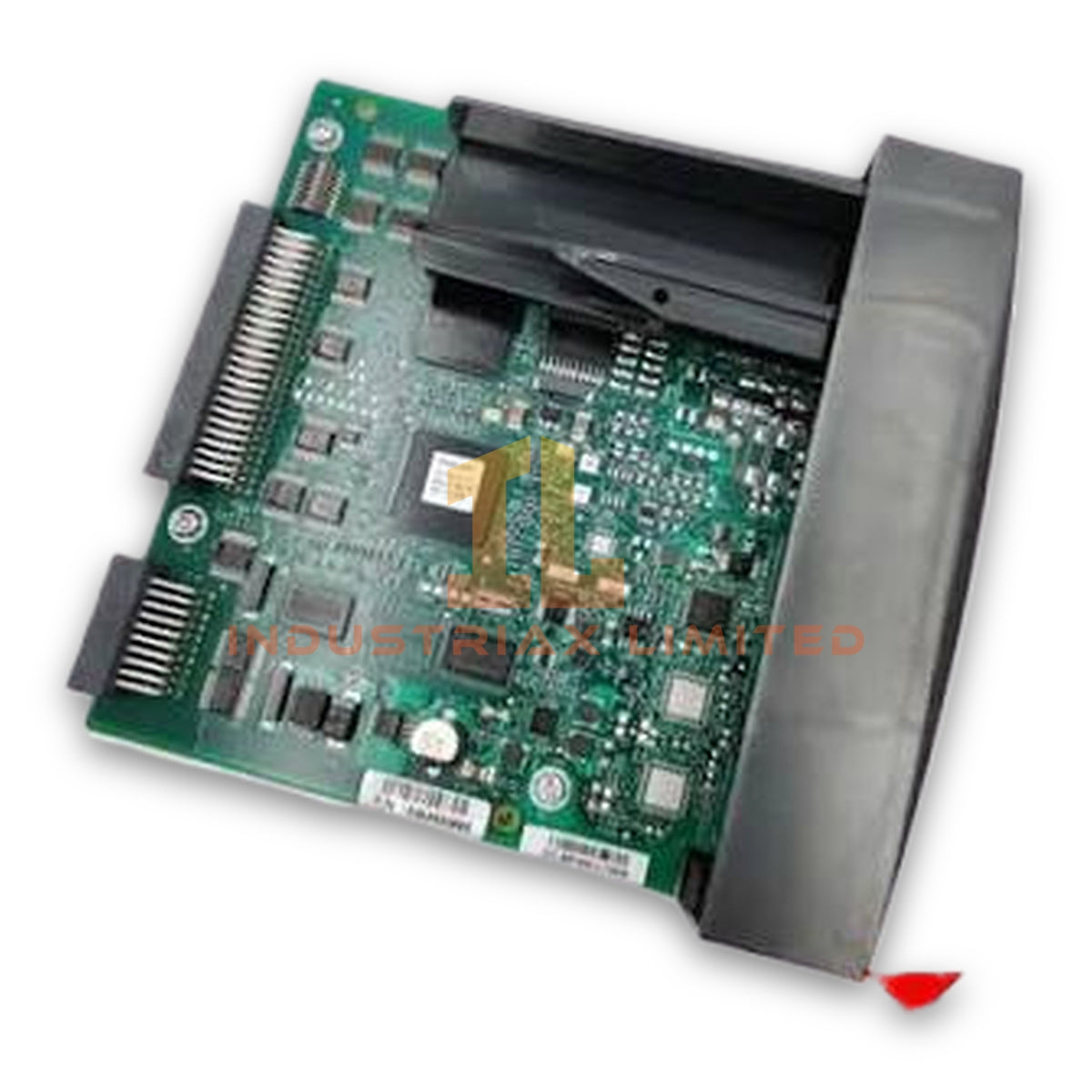

Honeywell 900S50-0460 ControlEdge HC900 I/O Scanner Module Configured for I/O data scanning and expansion communication in the Honeywell ControlEdge HC900...
Read more
Configured for I/O data scanning and expansion communication in the Honeywell ControlEdge HC900 system, the Honeywell 900S50-0460 (900S50 I/O Scanner Module) provides direct physical and electrical execution for distributed I/O communication tasks.
Hardware Specifications
Parameter
Specification
Model
900S50-0460
Brand
Honeywell
Product Type
I/O Scanner Module
System Platform
ControlEdge HC900
Origin
USA
Place of Shipment
Xiamen, China
Weight
0.4 kg
Dimensions
13.7 x 3.8 x 5.4 cm
Operating Temp
-40 deg C to +70 deg C
Power Consumption
5 VDC, 770 mA max
Input Voltage
24 VDC nominal
Isolation
500 V between field circuits
Scanner Status Indication
Red/Green LED indicates module mode or error status
ControlEdge HC900 I/O Communication Characteristics
The 900S50-0460 operates as an I/O scanning interface within the ControlEdge HC900 controller architecture. It manages communication between the controller processing layer and connected expansion I/O resources.
The module receives 24 VDC nominal input power and provides a 5 VDC backplane loading requirement with a maximum current draw of 770 mA. In addition, the module uses LED status indicators for diagnostic identification, including operational mode, module error conditions, and expansion port communication activity.
The Honeywell ControlEdge HC900 platform supports industrial process control communication functions, and the 900S50-0460 maintains field-side electrical isolation with a specified 500 V isolation rating between field circuits.
Frequently Asked Questions
Q: What function does the Honeywell 900S50-0460 perform in the ControlEdge HC900 system? A: The 900S50-0460 performs I/O scanning functions and manages communication between the ControlEdge HC900 controller and connected I/O expansion resources.
Q: What power requirements does the 900S50-0460 have? A: The module accepts 24 VDC nominal input voltage and requires 5 VDC supply loading with a maximum consumption of 770 mA.
Q: How does the module indicate operating conditions? A: The module uses Red/Green LEDs for mode and error indication, while Green/Yellow LEDs indicate expansion I/O receive and transmit activity.
Field Installation Guidelines
Install the 900S50-0460 in the designated ControlEdge HC900 rack position according to the system hardware configuration manual.
Verify the 24 VDC power wiring polarity before applying field power.
Keep field signal wiring separated from high-voltage power cables to reduce electrical interference.
Connect shielded field cables according to the site grounding standard and avoid multiple grounding points that may create ground loops.
Check LED status indicators after installation to confirm normal module operation and communication activity.
Verify backplane seating and connector engagement before system startup.
Perform controller diagnostics to confirm I/O scanner communication after replacement or installation.
