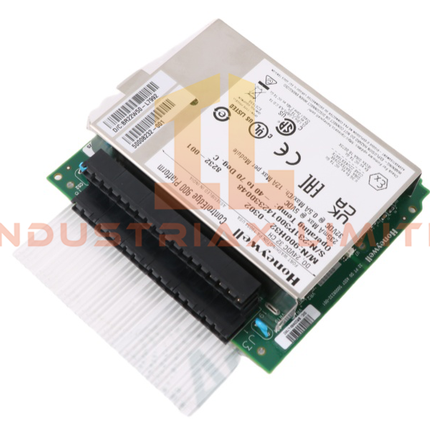

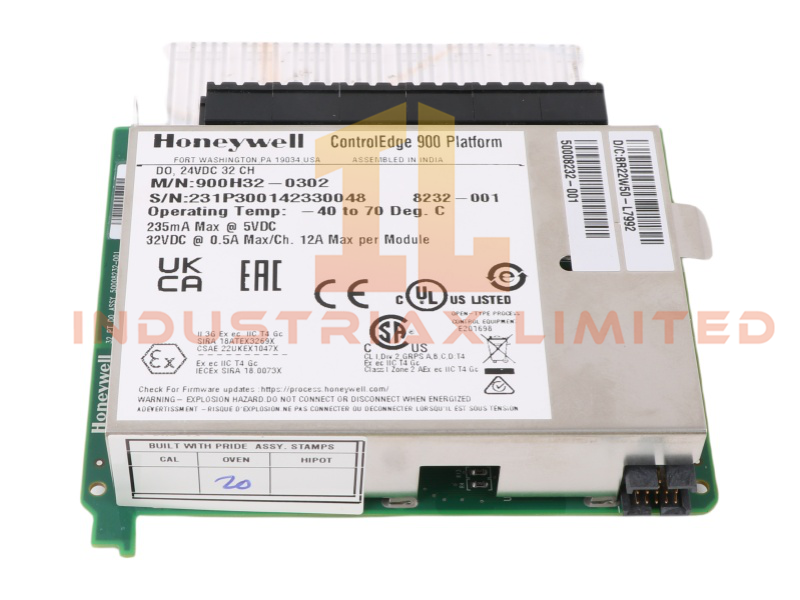

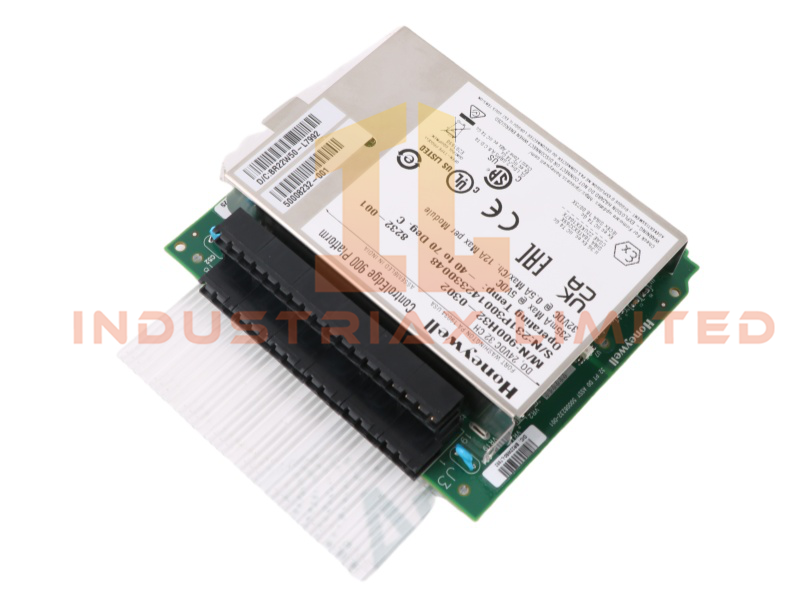

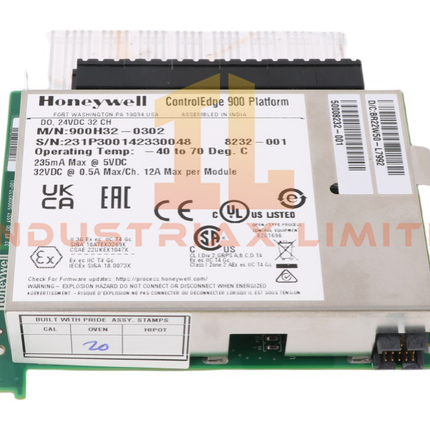

The 900H32-0302 HC900 Digital Output Module from Honeywell is a high-density 32-channel card designed for distributed control systems (DCS) within the Experion PKS platform. Built for continuous process industries, this module provides reliable DC digital outputs with advanced protection and diagnostic features, ensuring maximum uptime and operational efficiency.
Technical Specifications
-
Model Number / Part Number: 900H32-0302
-
Manufacturer: Honeywell
-
Module Type: 32-Point Digital Output Module
-
Condition: Brand New
-
System Compatibility: Honeywell Experion PKS, HC900 Controller
-
Product Range: Experion PKS
-
Dimensions: 13.3 cm × 15.1 cm × 3.3 cm
-
Weight: 0.18 kg
-
HS Code: 8537101190
-
Origin: USA
-
Minimum Order Quantity (MOQ): 1
-
Lead Time: In Stock
-
Status: Active
-
Communication Interface: Ethernet router supported
-
Output Type: 32 DC outputs, organized into two isolated groups of 16 channels
-
Protection: Overcurrent protection in four groups of eight channels
-
Indicators: Multi-color LEDs for channel status, diagnostics, and module activity
Functional Highlights
-
Provides 32 high-density DC outputs with current sourcing (high-side switching) technology
-
Two isolated channel groups with dedicated screw terminals for +V and COM connections
-
Intelligent overcurrent protection isolates only the affected group, avoiding full module shutdown
-
No power cycling required after fault conditions, reducing downtime
-
Multi-color LED indicators for real-time monitoring and diagnostics
-
Euro-style 36-terminal block ensures secure connections and simplifies maintenance
-
Compact design optimizes cabinet space while maintaining robust performance
Application Scenarios
-
Continuous process industries requiring high-density digital outputs
-
Chemical and petrochemical plants needing fault-tolerant output modules
-
Power generation facilities with distributed control architectures
-
Manufacturing and material handling systems requiring reliable digital control
FAQ
Q: How many outputs does the module provide? A: The 900H32-0302 offers 32 DC digital outputs, divided into two isolated groups of 16 channels.
Q: What happens during a short circuit? A: The module’s overcurrent protection disables only the affected group of eight channels, keeping other outputs operational.
Q: How are diagnostics displayed? A: Multi-color LEDs indicate channel status (green), forcing (amber), scanning activity (green blinking), and faults (red).
