Description

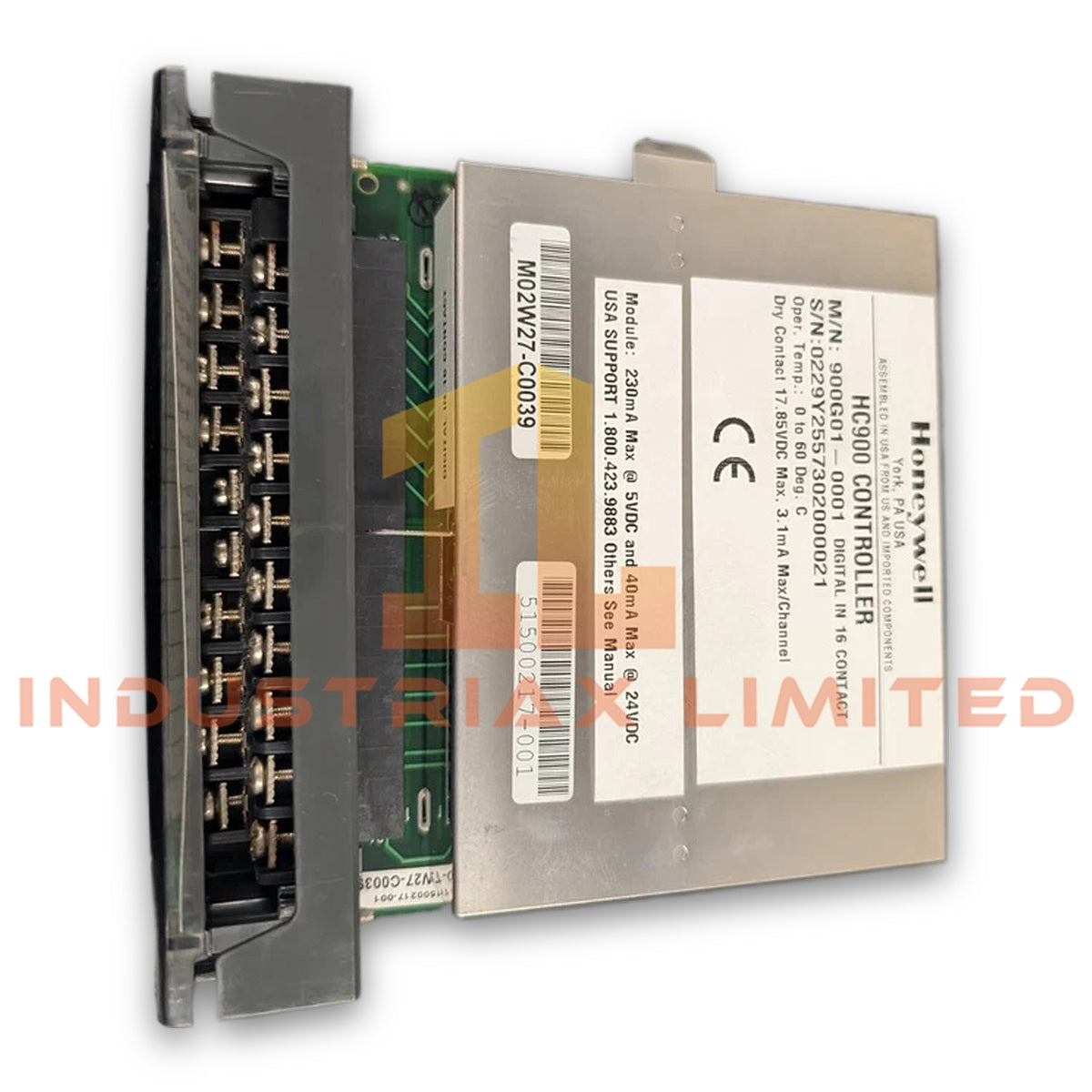

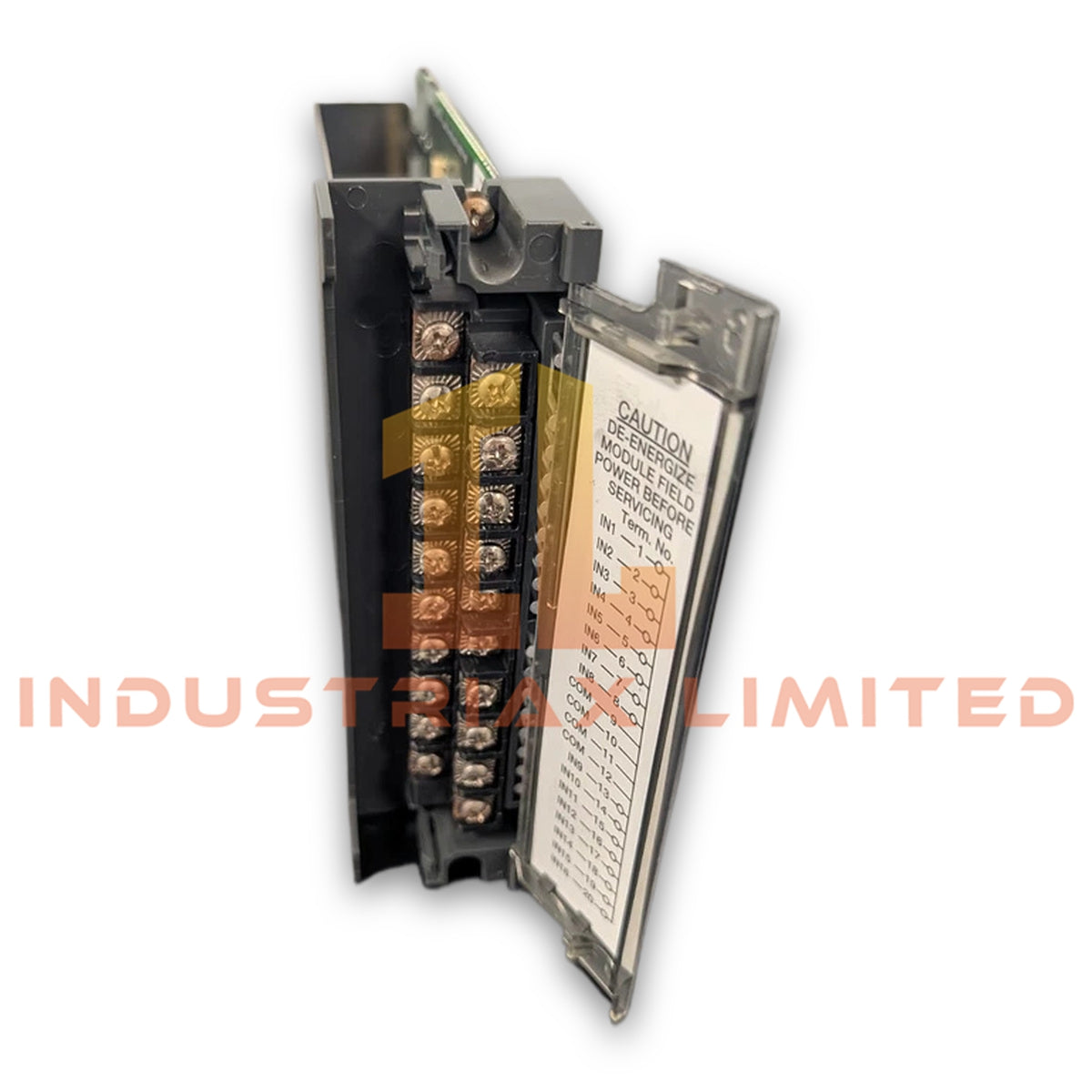

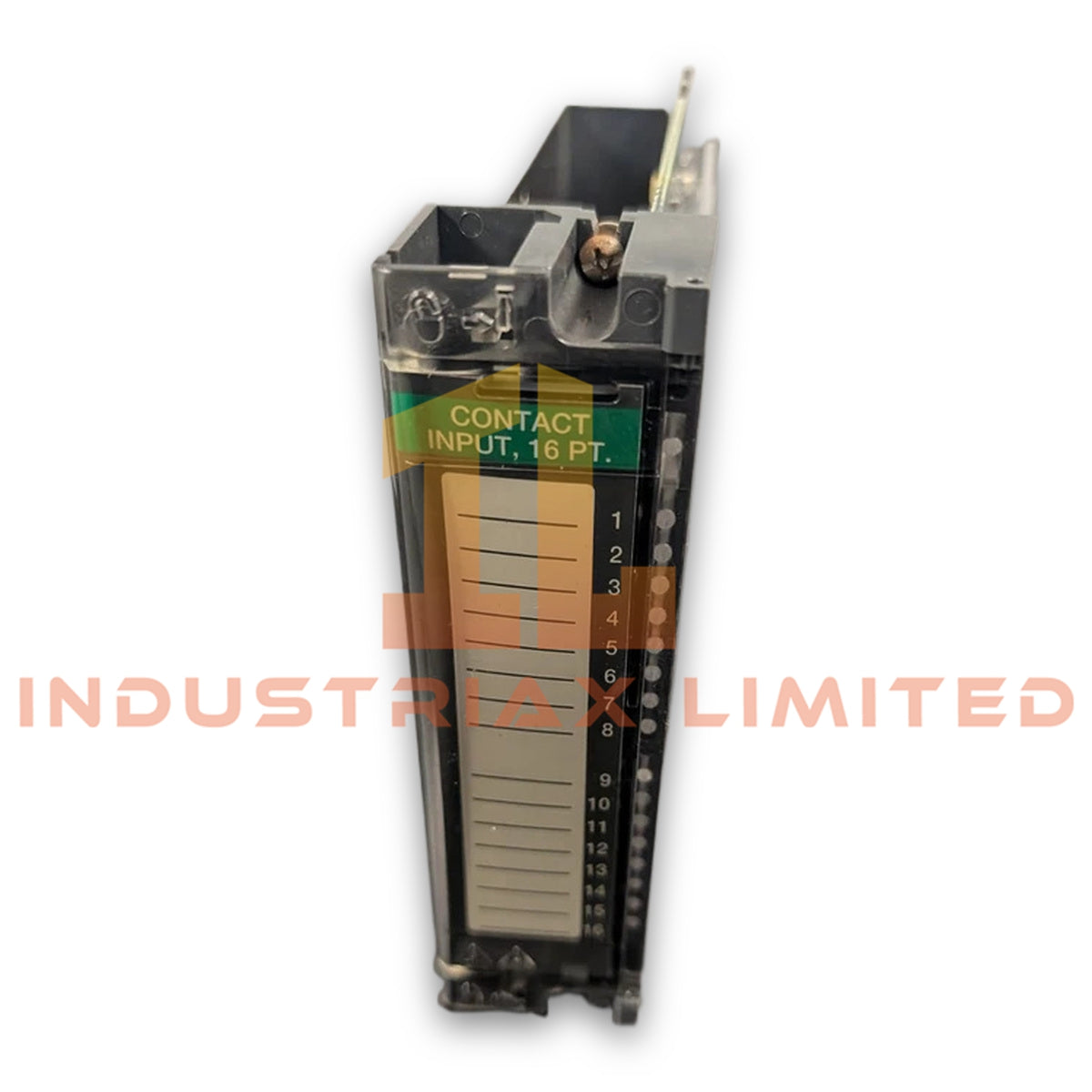

Honeywell 900G01-0001 ControlEdge HC900 16-Channel Digital Contact Input Module

Configured for discrete contact state acquisition in the Honeywell ControlEdge HC900 system, the Honeywell 900G01-0001 (900G01-0001 Digital Contact Input Module) provides direct electrical interface execution between field contact devices and controller logic processing.

Hardware Specifications

Parameter	Specification
Model	900G01-0001
Brand	Honeywell
Operating Temp	0 deg C to 60 deg C
Power Consumption	Low power loading from HC900 rack 5 VDC / 24 VDC supply
Product Series	ControlEdge HC900
Module Type	Digital Contact Input (DI) Module
Channel Count	16 independent digital input channels
Input Type	Dry contact / discrete contact closure
Logic High Input Range	10 VDC to 30 VDC
Logic Low Input Range	0 VDC to 3 VDC
Input Impedance	Typically 10 kOhm
Maximum Input Current	10 mA per channel
Maximum Switching Frequency	5 Hz per channel
Isolation Type	Channel-to-chassis and channel group isolation
Mounting Method	HC900 I/O rack and DIN rail compatible
Diagnostics	Front panel LED status indication

Process Control Signal Isolation and Channel Interface

The Honeywell 900G01-0001 processes discrete field contact signals through isolated input channels and transfers logic states to the ControlEdge HC900 controller through the rack backplane. Therefore, the module reduces wiring interference effects and maintains defined signal boundaries between field devices and controller electronics.

The module supports direct connection of dry contacts, including pushbuttons, auxiliary relay contacts, and limit switches. In addition, the input design applies hardware filtering and debounce processing to reduce false transitions caused by mechanical contact vibration.

For Honeywell process control architectures, channel-to-channel isolation supports separated field signal handling. Although this module does not process analog instrument loops, the ControlEdge HC900 platform maintains compatibility with process I/O modules supporting 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA communication interfaces.

Frequently Asked Questions

Q: Does the Honeywell 900G01-0001 support hot-swap replacement?
A: The ControlEdge HC900 platform supports modular I/O maintenance functions. Installation and removal procedures must follow the controller rack power and maintenance requirements defined by Honeywell documentation.

Q: What field devices can connect to the 900G01-0001 input channels?
A: The module accepts discrete contact signals from devices such as pushbuttons, relay auxiliary contacts, and limit switches within the specified input voltage range.

Q: How does the module prevent incorrect input transitions?
A: The module applies input filtering and debounce processing to reduce unwanted state changes caused by electrical noise or mechanical contact bounce.

Field Installation Guidelines

• Install the module inside the designated Honeywell ControlEdge HC900 I/O rack according to the system hardware configuration requirements.
• Separate digital input wiring from high-voltage power cables and switching circuits to reduce electromagnetic interference.
• Connect field signal shielding according to the plant grounding practice and avoid creating unintended ground loops.
• Verify contact wiring polarity, terminal assignments, and field voltage levels before controller commissioning.
• Confirm LED diagnostic indicators after installation to validate input channel status.
• Maintain proper cabinet ventilation and follow the environmental limits specified for the HC900 controller system.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
