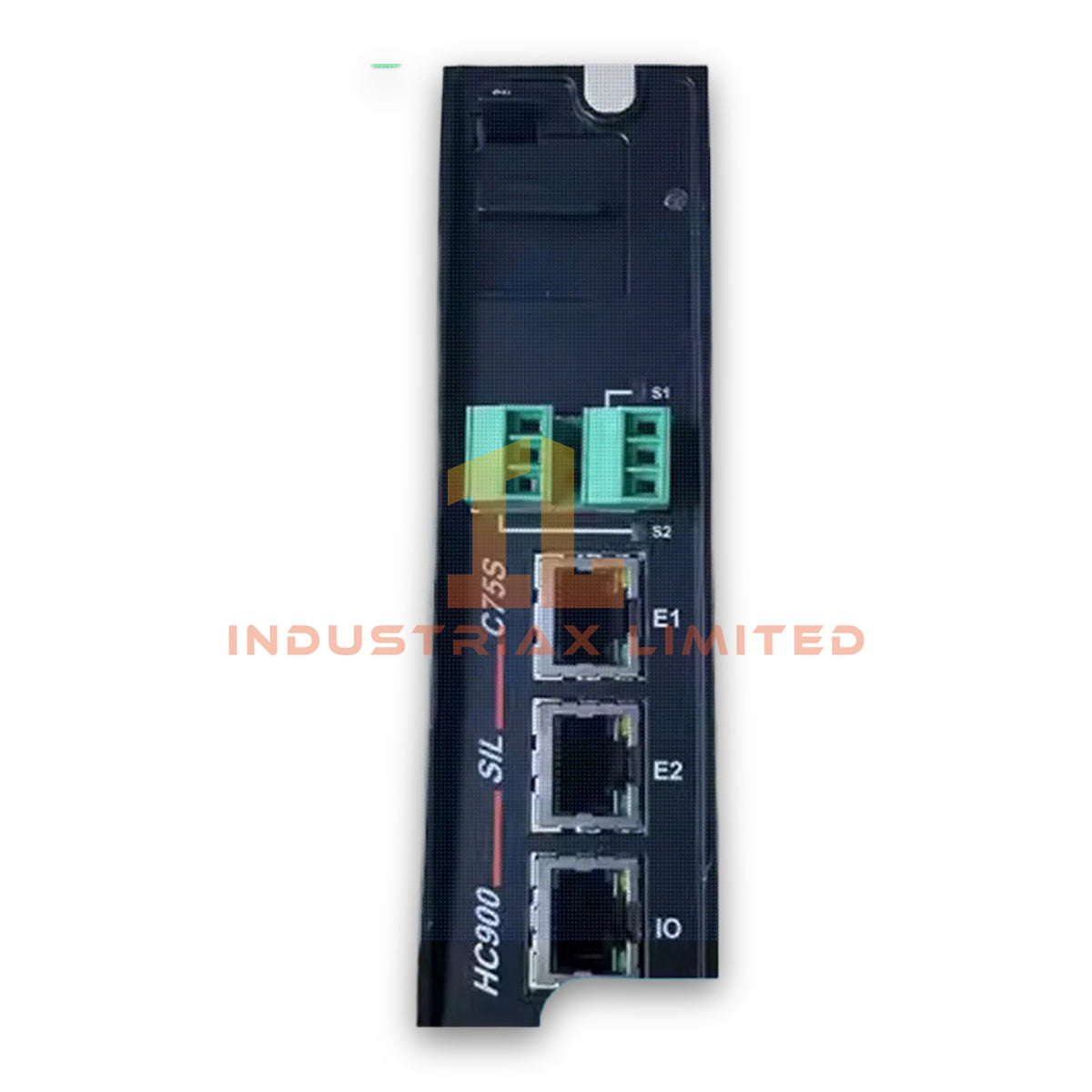

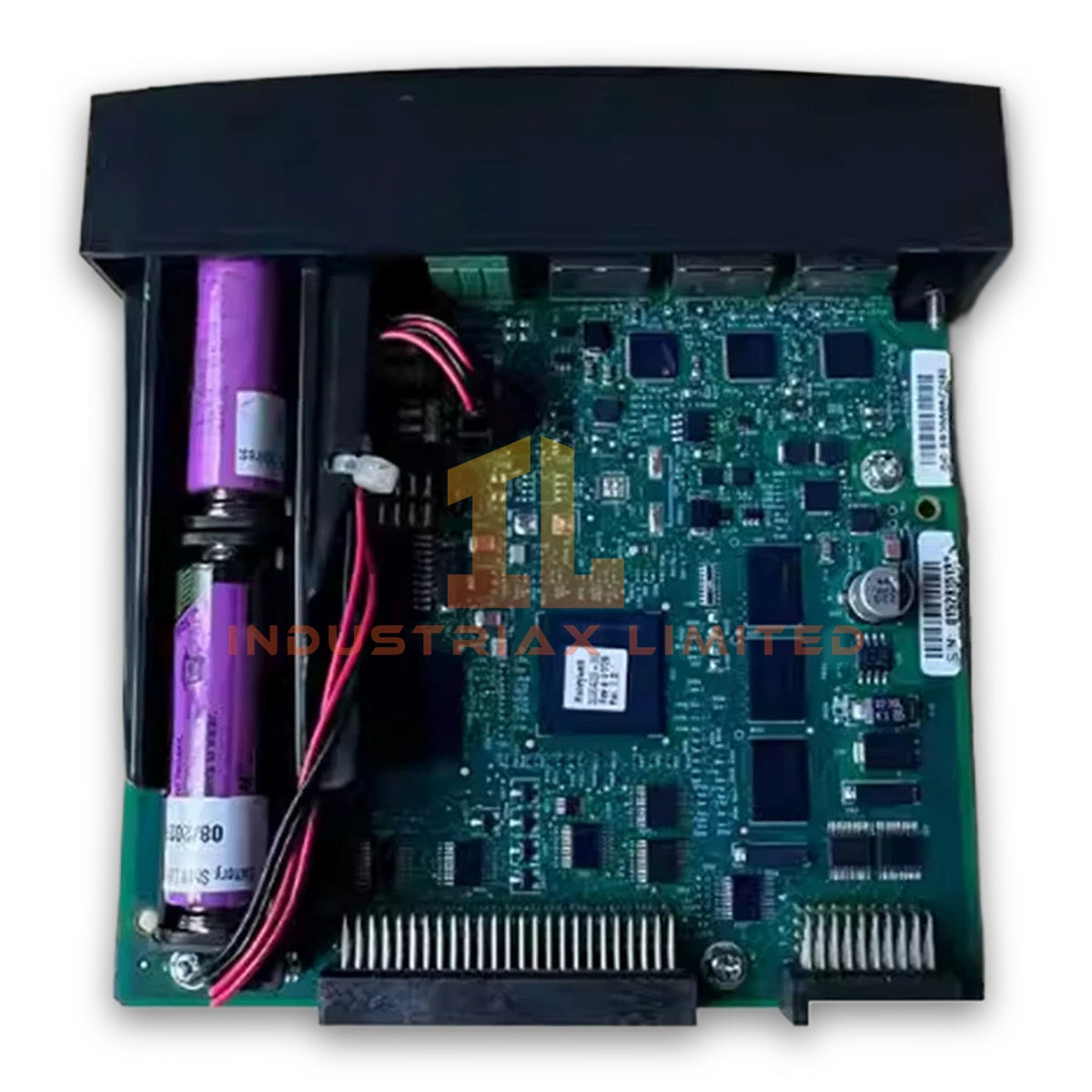

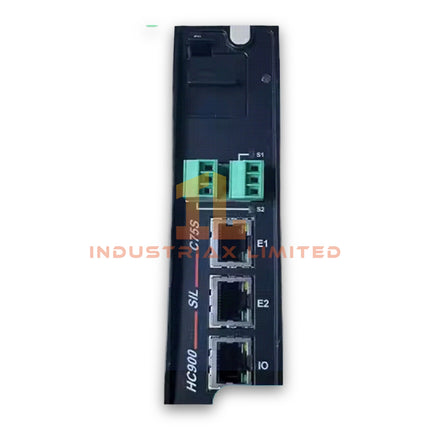

Honeywell 900C75S-0460 ControlEdge HC900 Safety Redundant CPU Module

The Honeywell 900C75S-0460, also cataloged as the 900C75S Safety Redundant CPU Module, operates as a dedicated hardware component for redundant logic execution and controller coordination within the Honeywell ControlEdge HC900 system.

Hardware Specifications

Parameter	Specification
Model	900C75S-0460
Brand	Honeywell
Product Series	ControlEdge HC900
Module Type	Safety Redundant CPU Module
Origin	USA
Processor Architecture	e300 32-bit RISC-based PowerPC processor
Integrated Memory	128 MB RAM
Function Block Capacity	Supports up to 15,000 function blocks
Supply Voltage	5 VDC from controller rack power system
Communication Interfaces	Modbus TCP, Modbus RTU, Ethernet/IP, PROFIBUS, RS-485, Peer-to-Peer Ethernet
I/O Capacity	Up to 2,304 Analog Inputs, 480/576 Analog Outputs, and 4,608 Digital Inputs/Outputs
Redundancy Configuration	Split Rack Redundancy with Lead/Reserve CPU architecture
Safety Certification	SIL safety capability for Safety Instrumented Systems
Weight	0.4 kg
Dimensions	137 mm H x 38.1 mm W
Operating Temp	Industrial ambient operating range (exact value not specified)
Power Consumption	Rack supplied 5 VDC power input

Process Control Communication and Safety Integration

The 900C75S-0460 CPU module executes control algorithms, manages I/O data processing, and coordinates redundant processor operation inside the ControlEdge HC900 platform. In addition, the module supports industrial communication protocols including Modbus TCP, Modbus RTU, Ethernet/IP, and PROFIBUS for controller-to-device data exchange.

The module supports safety-oriented controller configurations with SIL capability. Therefore, the Lead and Reserve CPU arrangement maintains synchronized control states and allows the system to manage processor faults without interrupting configured control execution.

For process instrumentation integration, Honeywell controller architectures support signal interfaces based on industrial standards such as 4-20 mA HART loop communication, FOUNDATION Fieldbus, and PROFIBUS PA through compatible I/O modules. Furthermore, channel-to-channel isolation designs in supported I/O assemblies reduce electrical interference between field signals.

Frequently Asked Questions

Q: Does the 900C75S-0460 support redundant CPU operation?
A: Yes. The module supports Split Rack Redundancy configurations using Lead and Reserve CPU operation with compatible redundant controller hardware.

Q: What power source does the 900C75S-0460 require?
A: The CPU module receives 5 VDC power from the controller rack power distribution system.

Q: Can the module communicate directly with field instruments?
A: The CPU provides controller communication functions. Field instrument interfaces require compatible ControlEdge HC900 I/O modules supporting protocols such as 4-20 mA HART, FOUNDATION Fieldbus, or PROFIBUS PA.

Field Installation Guidelines

• Install the CPU module only in a compatible Honeywell ControlEdge HC900 controller rack.
• Verify rack power availability before inserting or removing the module.
• Confirm the redundant CPU configuration uses the specified rack arrangement and compatible redundancy components.
• Maintain proper cabinet grounding and connect shielded communication cables according to industrial installation practices.
• Separate communication wiring from high-voltage power cables to reduce electromagnetic interference.
• Verify firmware compatibility between CPU modules, controller configuration tools, and connected I/O assemblies before commissioning.
