Description

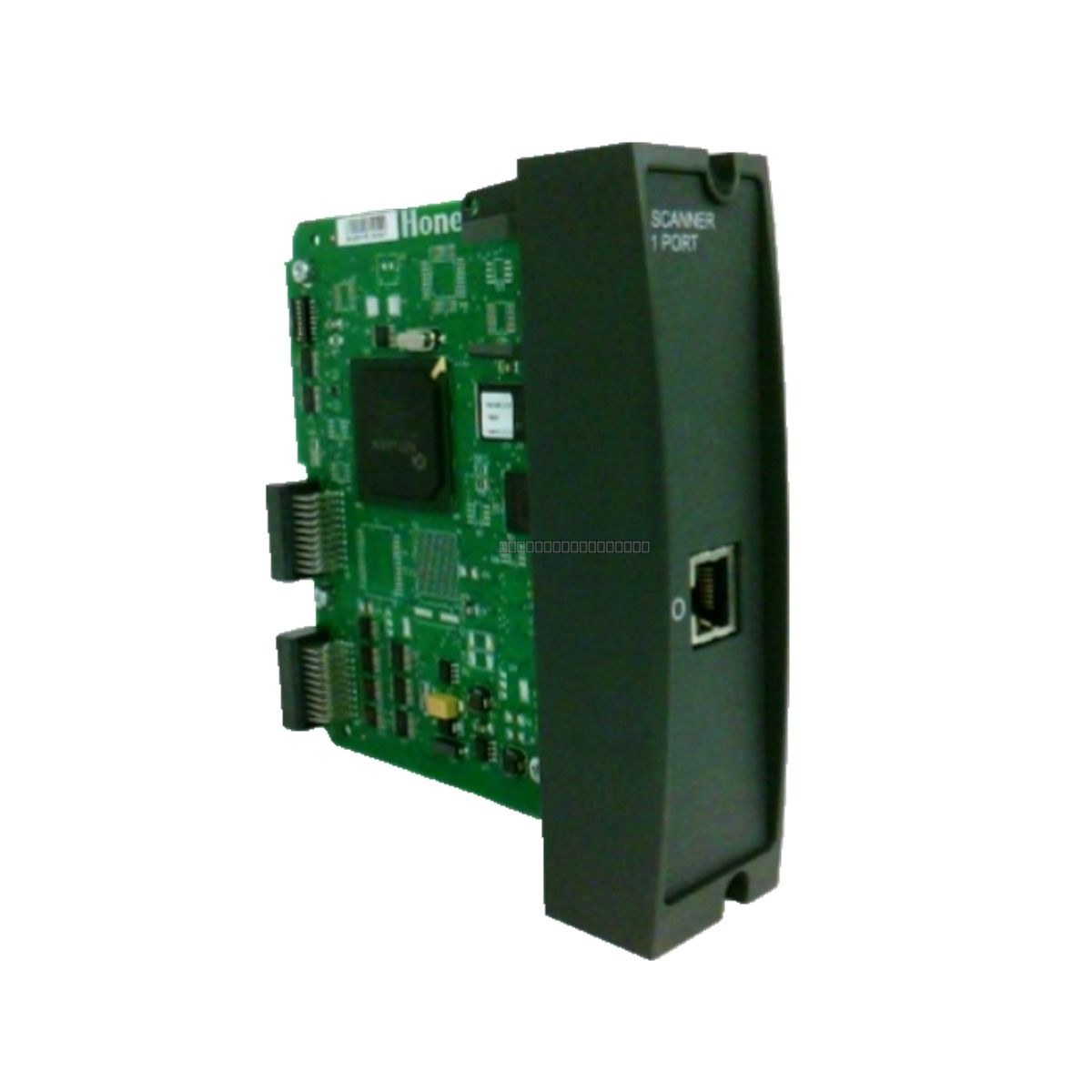

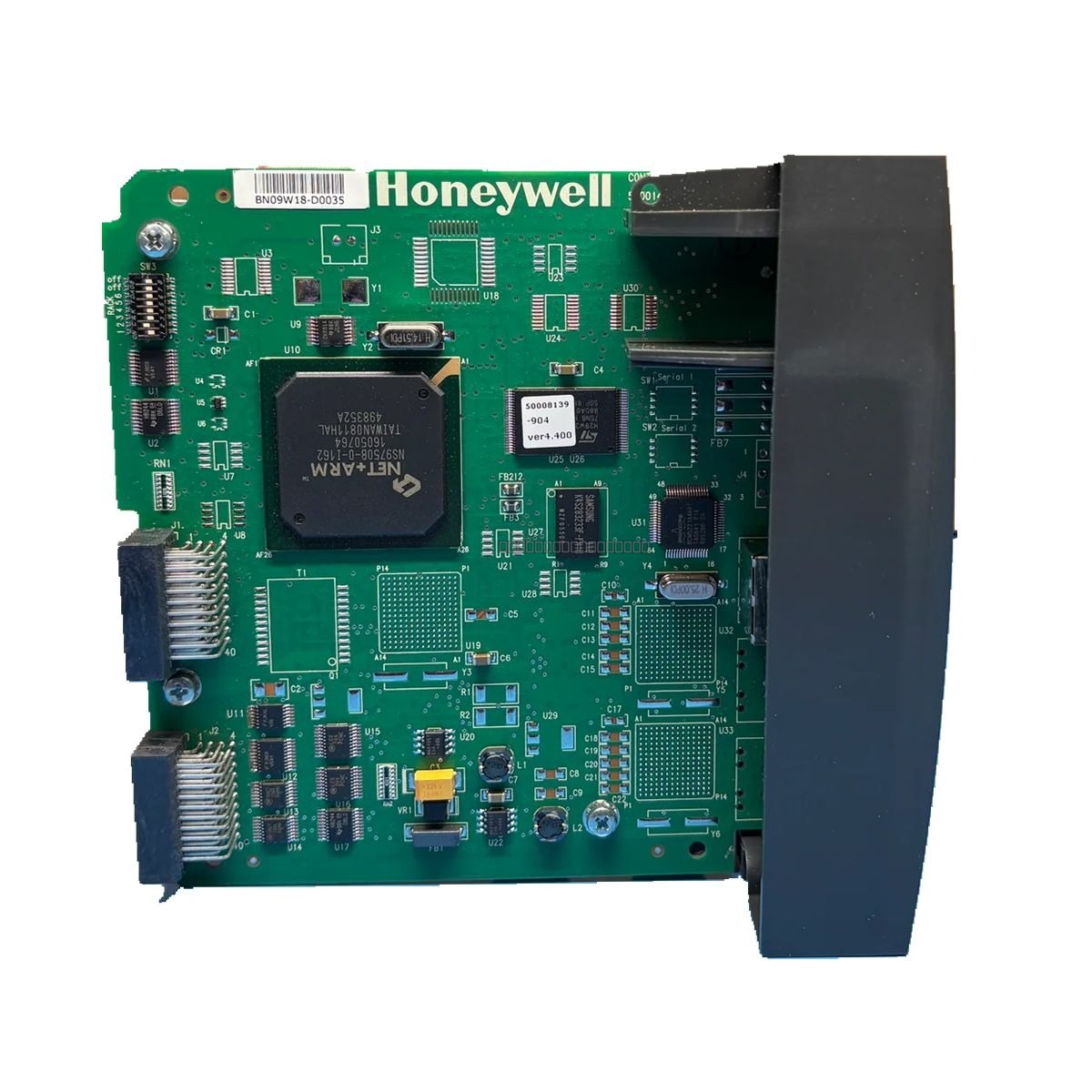

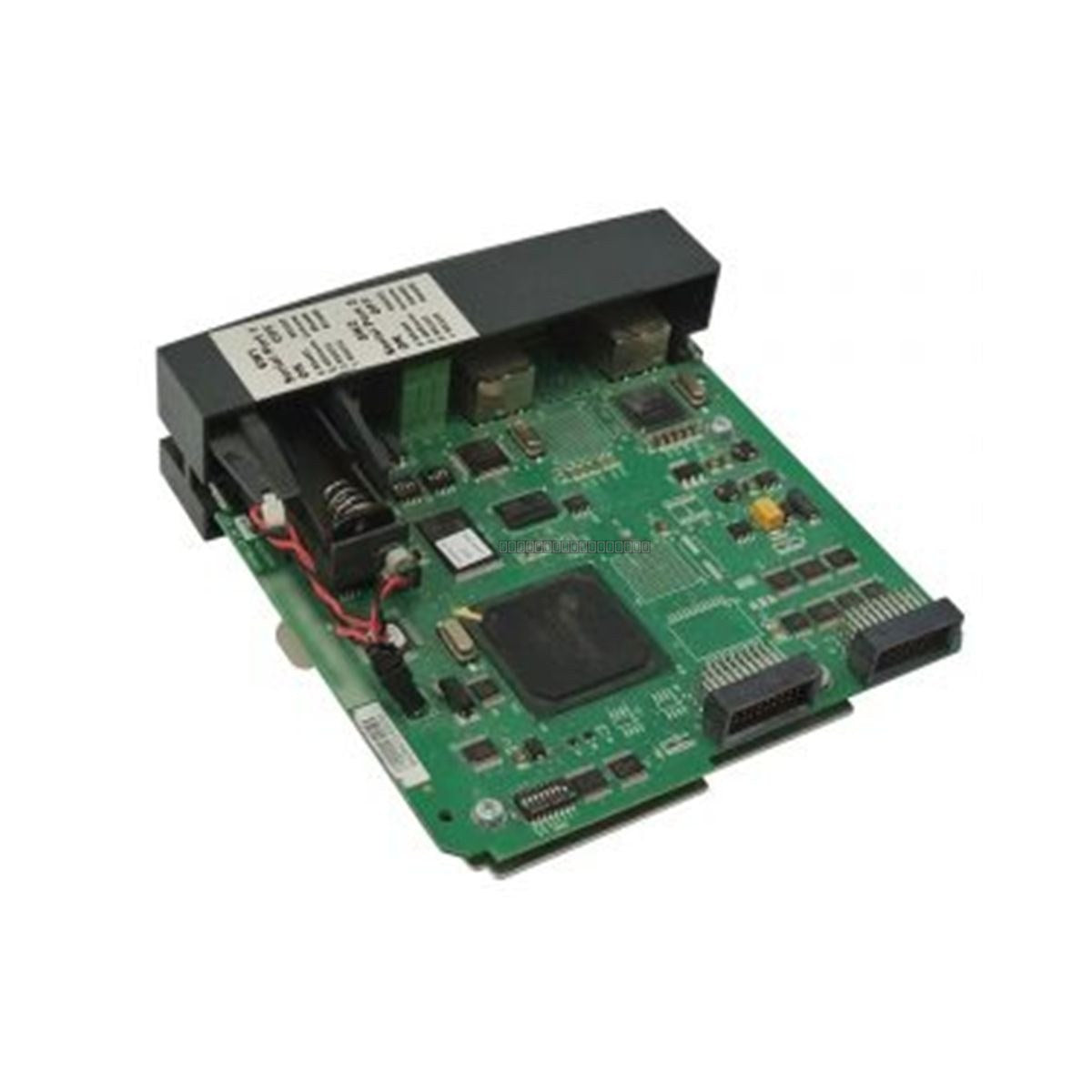

The Honeywell 900C53-0244-00 is a high-performance I/O Scanner Module designed for the ControlEdge HC900 process and safety controller platform. This module facilitates high-speed, Ethernet-based communication between the central CPU and remote I/O racks, enabling efficient distributed acquisition of analog and digital signals. By supporting 10Base-T communication and utilizing onboard processing for parallel data handling, it ensures deterministic data exchange essential for real-time industrial control systems. This module is engineered to reduce wiring complexity and enhance system availability in demanding environments such as oil and gas, power generation, and chemical processing facilities.
Features
- Integrated microcontroller for independent parallel I/O processing.
- Ethernet communication interface utilizing the 10Base-T standard.
- Supports remote rack topology for flexible distributed control system expansion.
- Automatic module detection and configuration upon insertion.
- Hot-swap capability allows for removal and replacement under power to minimize maintenance downtime.
- Hardware keying prevents incorrect module-to-terminal block matching.
- LED diagnostics provide per-channel status and tri-color module health indication.
Applications
The 900C53-0244-00 is utilized in distributed control architectures where remote I/O scanning is required. It is commonly deployed in process automation applications, including boiler control, burner management systems, and general-purpose process control where reliable, high-speed communication between the controller and field devices is critical.
Technical Specifications
| Model |
900C53-0244-00 |
| Brand |
Honeywell |
| Series |
ControlEdge HC900 |
| Communication |
10Base-T Ethernet |
| Max Current Consumption |
600 mA at 5 VDC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Operating Humidity |
10 to 90 percent non-condensing |
| Vibration Rating |
5 Hz to 250 Hz (1.0 g acceleration) |
| Mounting |
35 mm DIN rail |
| Enclosure Material |
UL94 V0 compliant |
| Environmental Rating |
G3 conformal coating |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module, unless performing a hot-swap in a system specifically configured for it.
- Mount the module on a standard 35 mm DIN rail within a clean, dry, and vibration-dampened enclosure.
- Maintain proper clearance around the module to ensure adequate airflow and cooling.
- Use shielded Ethernet cabling for all 10Base-T connections to minimize EMI interference.
- Verify that the hardware keying on the terminal block matches the module to prevent improper seating.
- Handle with standard ESD precautions to prevent damage to sensitive internal components.
FAQ
What is the primary function of the 900C53-0244-00?
This module acts as an I/O scanner that bridges the communication between the HC900 CPU and remote I/O racks via Ethernet, allowing for distributed signal processing.
Does this module support hot-swapping?
Yes, the module is designed for hot-swap capability, allowing it to be removed and inserted while the system is powered, provided the system architecture supports it.
What type of communication network does it use?
It utilizes the 10Base-T Ethernet standard for reliable, deterministic data exchange.
