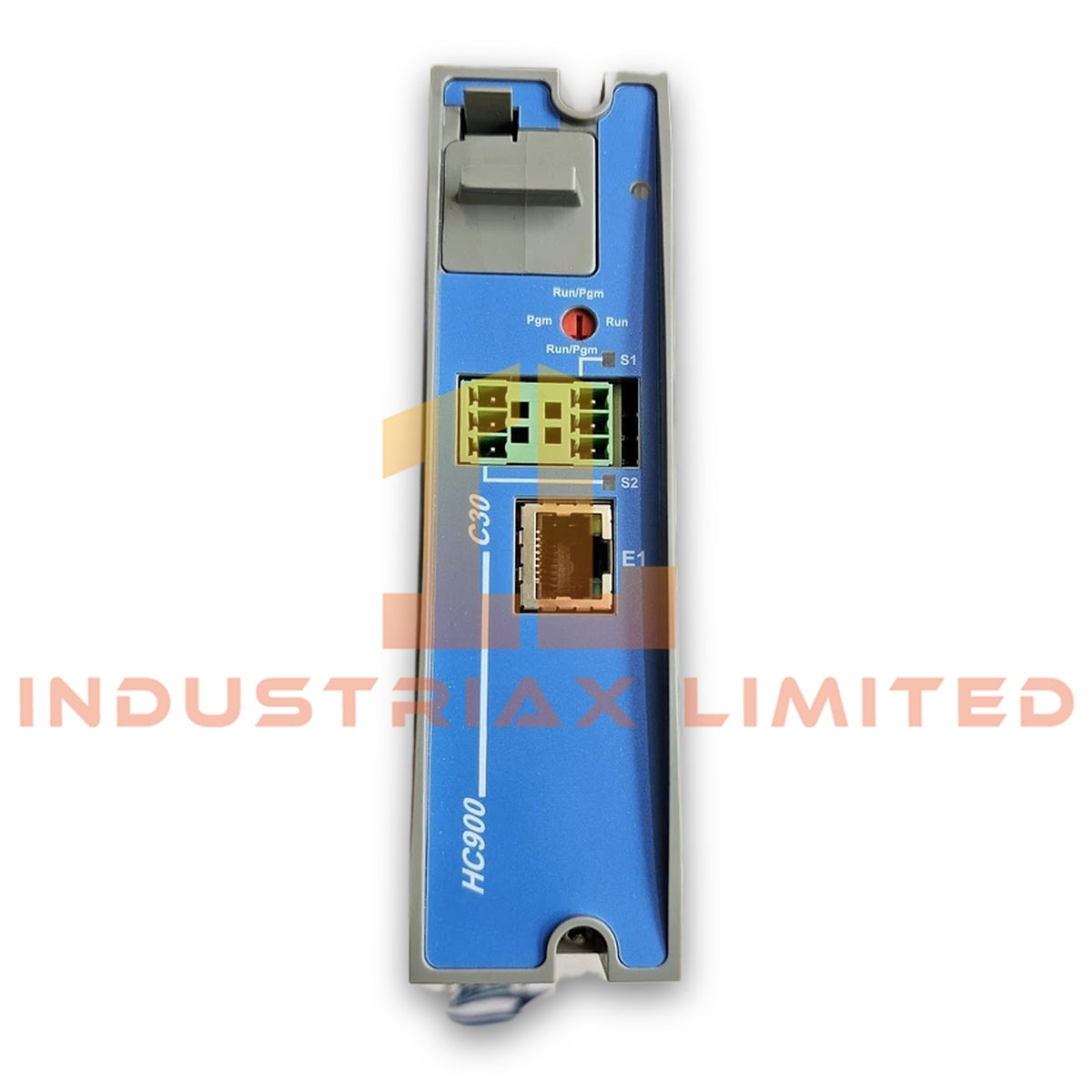

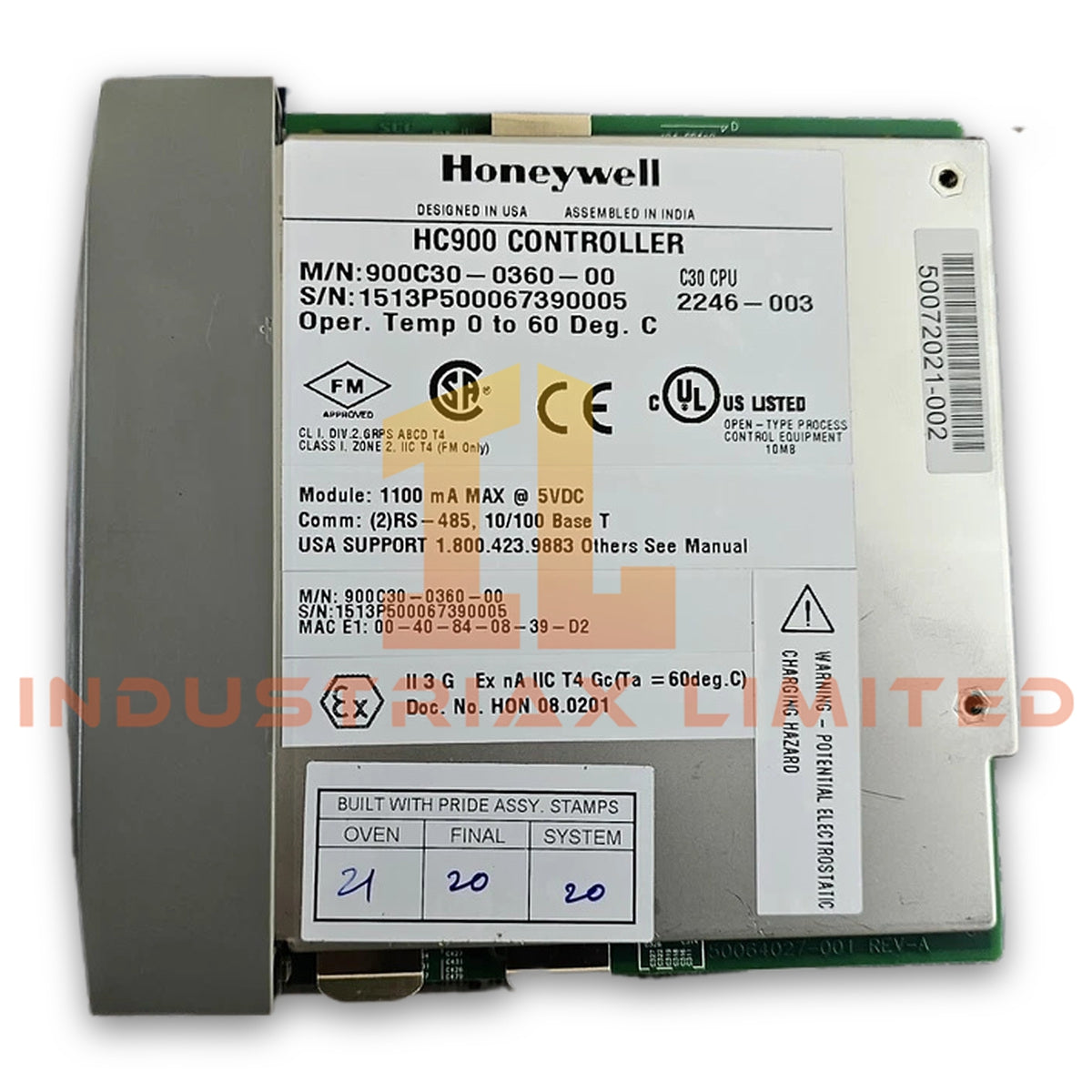

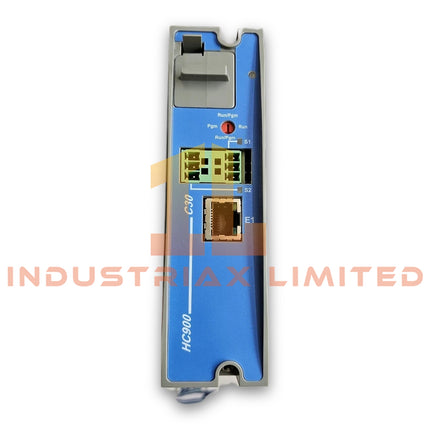

Honeywell 900C30-0360-00 ControlEdge HC900 CPU Module

The Honeywell 900C30-0360-00 serves as the primary 900C30 CPU Module utilized to execute process control logic, function block execution, and deterministic data communication across Honeywell ControlEdge HC900 platforms. It processes control strategies, exchanges data with local and remote I/O racks, and manages Ethernet communication while operating through the controller backplane.

Suffix Breakdown & Model Matrix

The supplied documentation identifies 900C30-0360-00 as a single catalog number. Honeywell does not define an official suffix breakdown for this model in the provided technical documentation. Therefore, no suffix interpretation is presented.

Hardware Specifications

Parameter	Specification
Model	900C30-0360-00
Brand	Honeywell
Product Series	ControlEdge HC900
Product Type	CPU Module
Processor Architecture	32-bit RISC-based PowerPC (e300)
Memory	64 MB RAM
Function Block Capacity	Up to 400 function blocks
Communication Interface	Ethernet, RJ45
Configuration Interface	Ethernet
Peer-to-Peer Communication	Supported
I/O Expansion	Supports local and remote I/O racks
I/O Capacity	Scalable analog and digital I/O according to system architecture
Power Supply	Rack backplane, typically 5 VDC
Configuration Software	Honeywell Hybrid Control Designer

4-20 mA HART Integration and Process Control Connectivity

The 900C30-0360-00 exchanges process data with HC900 I/O modules that support standard 4-20 mA instrumentation and HART communication. Consequently, the CPU executes control strategies while the associated I/O modules acquire field measurements and manage analog or digital outputs.

Furthermore, Ethernet interfaces provide controller configuration, online diagnostics, peer-to-peer communication, and engineering access through Hybrid Control Designer. The controller also coordinates local and remote I/O racks over the HC900 architecture, allowing the control system to expand without changing the CPU hardware.

Frequently Asked Questions

Q: Does the 900C30-0360-00 support online firmware updates while the controller remains in operation?
A: The supplied documentation does not specify online firmware update capability. Firmware maintenance should follow Honeywell HC900 service procedures.

Q: Can the CPU communicate with remote I/O racks?
A: Yes. The controller supports both local and remote I/O expansion within the Honeywell ControlEdge HC900 architecture.

Q: Is the CPU module hot-swappable?
A: The supplied documentation does not specify hot-swap support. Remove or install the module only according to the controller maintenance procedure and system shutdown requirements defined by Honeywell.

Field Installation Guidelines

• Verify that the controller rack is correctly powered before installing the CPU module.
• Fully engage the module with the backplane connector, and secure the retaining hardware before energizing the rack.
• Connect Ethernet cables separately from high-voltage power conductors to reduce electrical interference.
• Maintain proper cabinet grounding and terminate cable shields according to the plant grounding standard.
• Confirm controller communication after installation by verifying Ethernet connectivity and I/O status using Hybrid Control Designer.
• Back up the controller configuration before replacing the CPU module or performing firmware maintenance.
