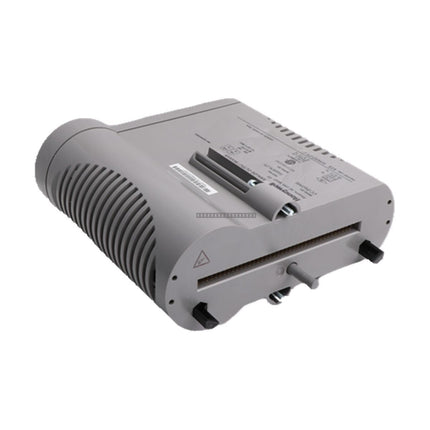

The Honeywell 8U-TDODB1 is a Digital Output Redundant IOTA (Input/Output Termination Assembly) designed for high-availability control architectures within the Experion PKS ecosystem. This assembly serves as the critical interface between field devices and the control system, providing robust termination and signal routing for 24 VDC digital output channels. Engineered for fault-tolerant environments, the 8U-TDODB1 facilitates redundant output paths, ensuring operational continuity and minimizing downtime during module maintenance or communication path failures.
Features
- Supports redundant digital output configurations for enhanced system reliability.
- Provides organized field wiring termination for high-density cabinet integration.
- Optimized for 24 VDC industrial digital output applications.
- Uncoated construction suitable for controlled industrial environments.
- Direct integration with Honeywell chassis and redundant carrier infrastructures.
- Facilitates rapid module replacement to reduce mean time to repair (MTTR).
Applications
The 8U-TDODB1 is utilized in mission-critical process automation systems, including:
- Refinery and petrochemical processing units.
- Chemical production facilities.
- Power generation and distribution plants.
- Critical infrastructure monitoring and control.
Technical Specifications
| Model |
8U-TDODB1 |
| Brand |
Honeywell |
| Series |
Experion PKS |
| Module Type |
Redundant Digital Output IOTA |
| Operating Voltage |
24 VDC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Coating |
Uncoated |
Installation Guidelines
- Ensure the control cabinet environment is managed for humidity and contamination, as this is an uncoated assembly.
- Always power down the associated chassis or carrier before installing or removing the IOTA to prevent electrical arcing or signal disruption.
- Verify that all field wiring is properly secured to the terminal blocks to maintain signal integrity.
- Ensure proper grounding of the cabinet and carrier infrastructure to minimize EMI/RFI interference.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
FAQ
Is the 8U-TDODB1 compatible with all Experion PKS digital output modules?
The 8U-TDODB1 is designed for specific redundant digital output architectures. Please consult your system hardware manual or the specific module compatibility matrix to ensure the IOTA matches your digital output module part number.
Does this IOTA require special environmental protection?
This is an uncoated version, meaning it is intended for use in climate-controlled environments. If your application involves high levels of corrosive gases or extreme humidity, consider an alternative coated version if available for your specific system requirements.
