Description

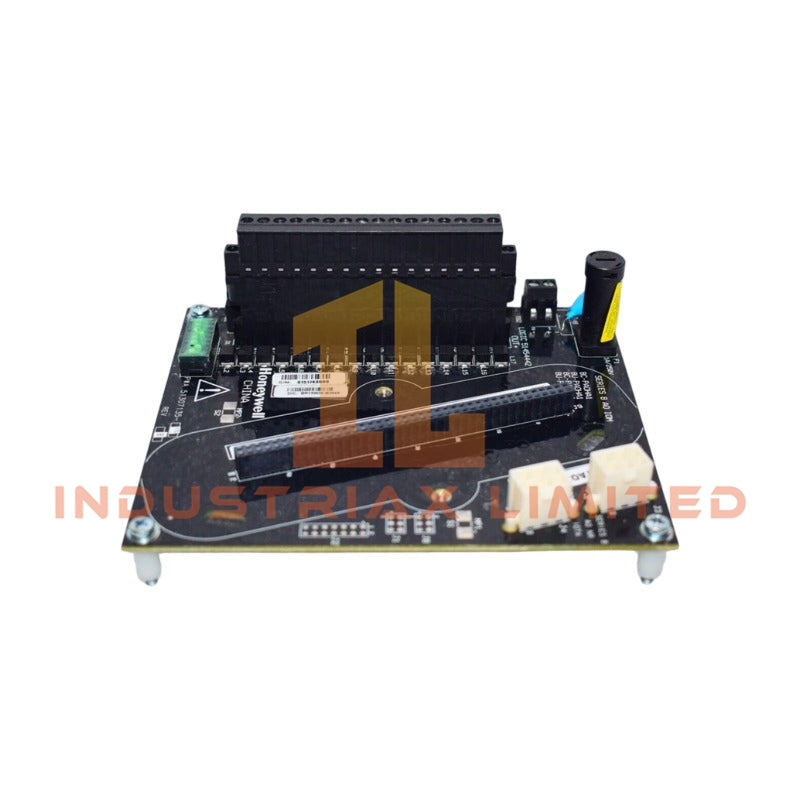

Honeywell 8U-TDILA1 Experion Series 8 Digital Input Termination Assembly

Configured for 24 VDC digital signal termination in Honeywell Experion Series 8 control systems, the Honeywell 8U-TDILA1 (8U-TDILA1 Digital Input Termination Assembly) provides direct field wiring interface execution for Series 8 I/O architectures.

Hardware Specifications

Parameter	Specification
Model	8U-TDILA1
Brand	Honeywell
Origin	USA
Power Consumption	Passive termination assembly, no active power consumption specified
Product Type	24 VDC Digital Input Termination Assembly (IOTA)
System Platform	Honeywell Experion Series 8 / C300 Controller Architecture
Signal Type	Discrete Digital Input
Input Voltage	24 VDC
Channel Count	32 Channels
Coating Type	Uncoated
Redundancy Configuration	Non-redundant single IOTA
Mounting Method	DIN Rail Mounting
Compatible I/O Module	8C-PDILA1 / 8C-TDILA1 Digital Input Module
Field Connection Function	Terminates external discrete field wiring and routes signals to Digital Input module

Process Control Signal Interface and Channel Isolation

The Honeywell 8U-TDILA1 operates as a Series 8 Digital Input termination assembly for discrete field signal collection. It accepts external 24 VDC switching signals from devices such as limit switches, push buttons, and relay contacts, then transfers the terminated signals to the associated Digital Input module.

Furthermore, the module supports the Honeywell DCS I/O architecture where field wiring remains connected during I/O module replacement procedures. The assembly provides the physical termination layer while the active processing functions remain inside the connected Digital Input module.

For Honeywell process control applications, the Series 8 I/O platform supports field signal management requirements including channel-to-channel isolation design considerations. However, the 8U-TDILA1 itself functions as a passive termination component and does not provide signal conditioning, HART communication, FOUNDATION Fieldbus connectivity, or active input processing.

Frequently Asked Questions

Q: Does the 8U-TDILA1 perform digital signal processing internally?
A: No. The 8U-TDILA1 is a passive I/O termination assembly. The connected Digital Input module performs signal conversion, diagnostics, and control processing.

Q: Can field wiring remain connected during Digital Input module replacement?
A: Yes. The IOTA design allows field termination wiring to remain installed while the associated I/O module is removed according to the approved Honeywell Series 8 maintenance procedure.

Q: Does the 8U-TDILA1 support redundant I/O operation?
A: No. The 8U-TDILA1 is specified as a non-redundant single termination assembly.

Field Installation Guidelines

1. Install the 8U-TDILA1 on the approved DIN rail mounting location inside the control cabinet.
2. Verify that field wiring matches the required 24 VDC Digital Input channel configuration before connection.
3. Separate low-level signal wiring from high-voltage power cables to reduce electrical interference.
4. Connect cable shields according to the cabinet grounding design and site electrical standards.
5. Confirm terminal identification and channel allocation before energizing the connected I/O module.
6. Inspect terminal connections for proper mechanical tightening and ensure that unused channels remain protected from accidental contact.
7. Perform I/O channel verification from the Experion engineering environment after completing field installation.
