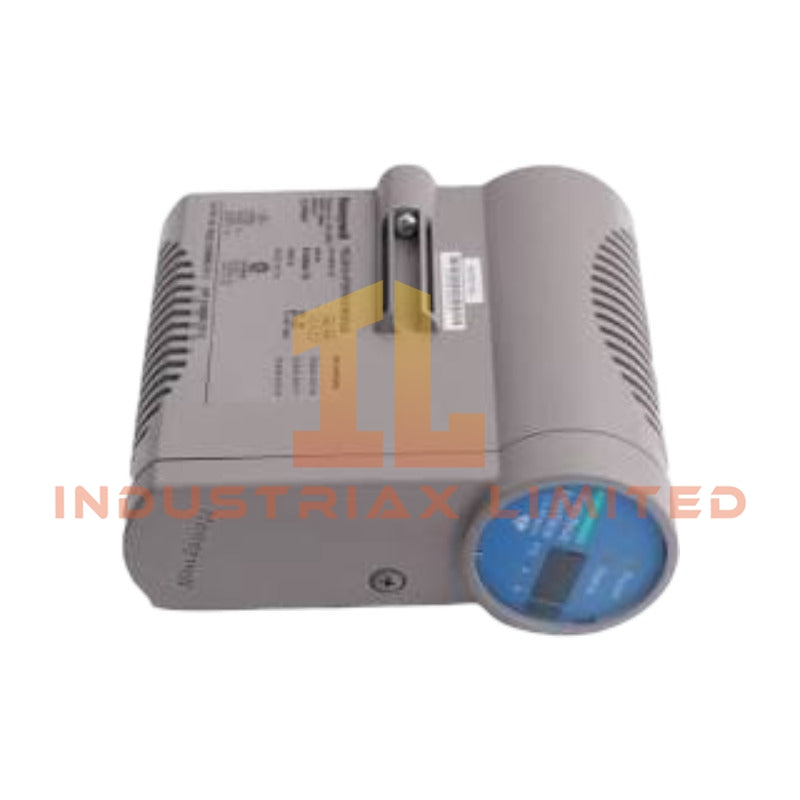

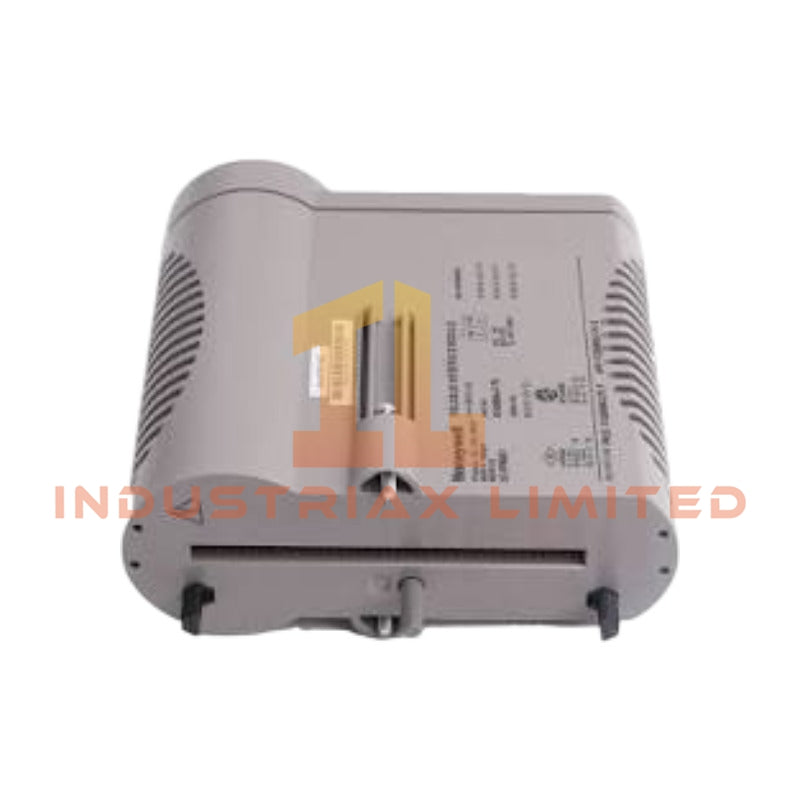

Honeywell 8U-TDIL11 Series 8 Digital Input Module

The Honeywell 8U-TDIL11, also cataloged as the 8U-TDIL11 Digital Input Module, operates as a dedicated hardware component for discrete field signal acquisition within the Honeywell Experion PKS Series 8 I/O system. The module receives 24 VDC status signals from field devices and transfers processed input states to the C300 Controller.

Hardware Specifications

Parameter	Specification
Model	8U-TDIL11
Brand	Honeywell
Origin	USA
Series	Experion PKS Series 8 I/O
Module Type	Digital Input Module (DI)
Coating	Standard Uncoated
Input Channels	32 channels
Input Signal Type	Discrete voltage input
Nominal Input Voltage	24 VDC
Input Voltage Range	18 VDC to 30 VDC
ON-State Voltage	15 VDC to 30 VDC
OFF-State Voltage	0 VDC to 5 VDC
Input Current	Approximately 2.5 mA to 5.0 mA per channel at 24 VDC
Isolation	Field-to-logic optical isolation
Mounting	Series 8 I/O Termination Assembly (IOTA) / DIN rail mounting
Communication Interface	Experion Series 8 I/O backplane interface
Operating Temp	0 deg C to 60 deg C
Storage Temp	-40 deg C to 85 deg C
Relative Humidity	5% to 95% non-condensing
Power Consumption	Typically less than 3 W depending on field load

DCS Channel Isolation and Discrete Signal Processing

The 8U-TDIL11 integrates channel-level signal conditioning for Honeywell Experion PKS Series 8 I/O applications. Furthermore, the module applies channel-to-channel isolation to reduce electrical interference between field inputs. Each input channel monitors discrete voltage states from switches, relay contacts, and digital field devices, while the module transfers validated status information through the Series 8 I/O communication structure.

Additionally, the module architecture supports galvanic isolation between field wiring and internal logic circuits. This design reduces the influence of transient electrical conditions and maintains stable digital input acquisition in process control cabinets.

Frequently Asked Questions

Q: Does the 8U-TDIL11 support hot-swapping during system operation?
A: The Series 8 I/O platform supports Removal and Insertion Under Power (RIUP) functions. Actual hot-swap operation depends on the installed I/O configuration, controller status, and system engineering rules.

Q: What type of field signals can the 8U-TDIL11 accept?
A: The module accepts 24 VDC discrete signals from field devices such as switches, relay contacts, and digital status outputs within the specified input voltage range.

Q: Does the module provide electrical isolation between field signals and controller electronics?
A: Yes. The module uses optical isolation between field input circuits and internal logic electronics to separate field wiring from the control system electronics.

Field Installation Guidelines

• Install the 8U-TDIL11 module in the designated Honeywell Series 8 I/O mounting assembly according to cabinet engineering drawings.
• Verify that field wiring polarity matches the digital input terminal assignment before energizing the circuit.
• Separate digital signal wiring from high-voltage power cables and high-current switching conductors to reduce electrical noise coupling.
• Connect cable shields according to the plant grounding standard and avoid multiple-point shield grounding unless required by the control system design.
• Confirm that field input voltage levels remain within the specified 18 VDC to 30 VDC operating range before commissioning.
• Inspect terminal connections, IOTA interfaces, and module seating position during maintenance activities.
