Description
Description

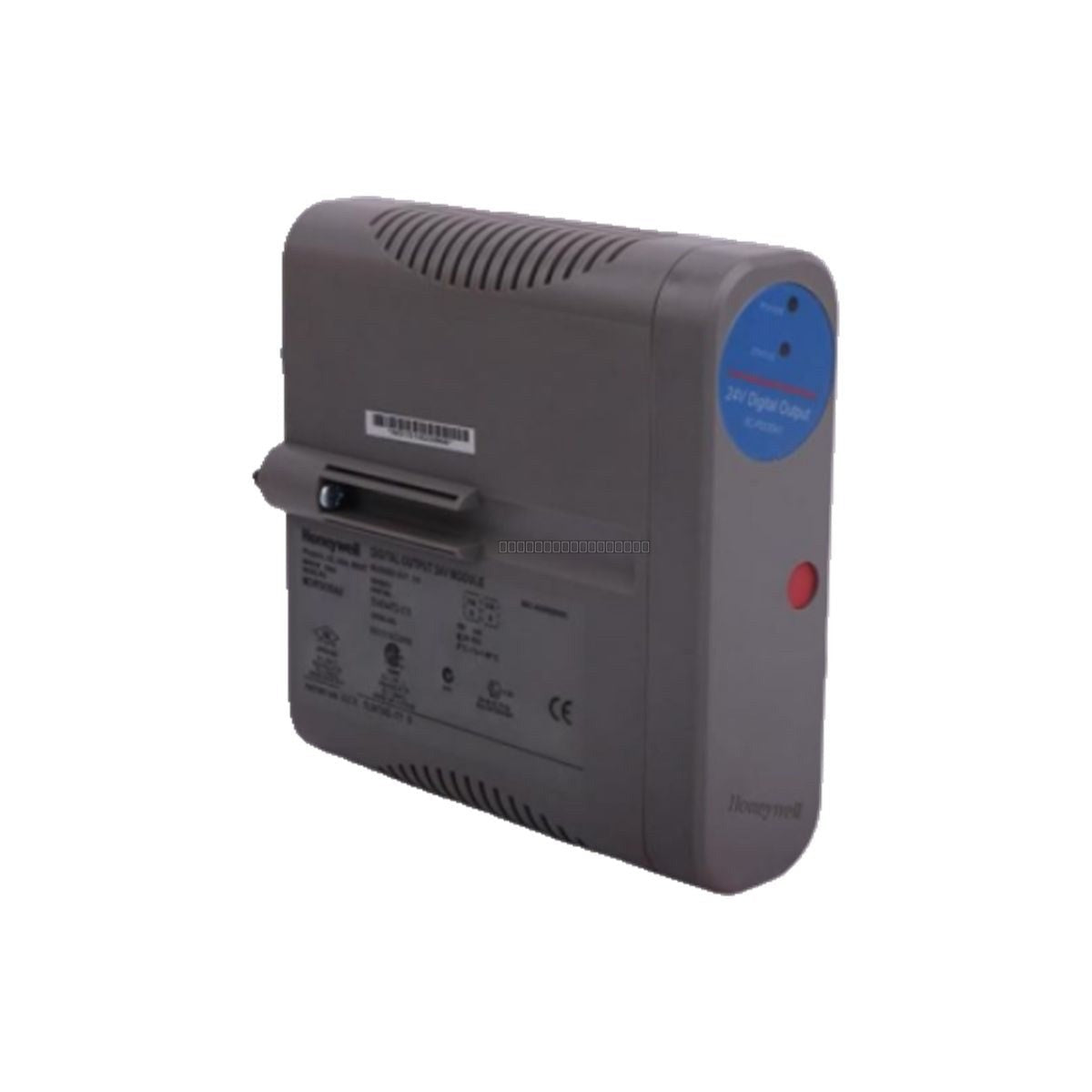

The Honeywell 8U-PDODA1 is a high-density, 32-channel digital output module designed for industrial automation and distributed control systems. Engineered for reliability in demanding environments such as power plants, oil refineries, and large-scale manufacturing, this module provides robust discrete control for actuators, relays, and solenoids. Its field-isolated architecture ensures critical electrical separation between system and field wiring, minimizing the risk of fault propagation and enhancing overall operational safety.
Features
- 32-channel source-type digital output interface.
- Field-isolated design for enhanced electrical safety.
- Supports hot-swapping (removal and insertion under power) to minimize maintenance downtime.
- Integrated short-circuit protection via series fuses (one fuse per eight channels).
- Deterministic switching performance with turn-on/turn-off times up to 10 ms.
- Galvanic isolation of 1000 VAC RMS between system and field power.
Applications
This module is suitable for mission-critical process automation tasks, including:
- Discrete control of field actuators and solenoids.
- Interface for relay control in power generation facilities.
- High-density output management in refinery control systems.
- Redundant control configurations requiring zero-gap switchover.
Technical Specifications
| Model |
8U-PDODA1 |
| Output Channels |
32 (Source Type) |
| Nominal Voltage |
24 VDC |
| Max Load Voltage |
30 VDC |
| Max Load Current |
100 mA per channel |
| Power Consumption |
105 mA at 24 VDC |
| Isolation |
1000 VAC RMS (System to Field) |
| Protection |
4 fuses (1 per 8 channels) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
Installation Guidelines
- Ensure the system is powered down before installation or removal, unless the specific system environment explicitly supports hot-swapping procedures.
- Maintain proper grounding practices to ensure the integrity of the field isolation.
- Route field wiring away from high-EMI sources to prevent signal interference.
- Ensure adequate ventilation in the cabinet to maintain operating temperatures within the 0 to 60 deg C range.
- Use appropriate shielded cabling for field connections to reduce noise susceptibility.
FAQ
Is this module compatible with redundant systems?
Yes, the 8U-PDODA1 is designed to support zero-gap switchover behavior, making it suitable for redundant control configurations where uninterrupted output state transitions are required.
What is the protection mechanism for the outputs?
The module features short-circuit protection implemented via series fuses. There are four fuses in total, with each fuse protecting a group of eight channels.
